CK6136的技术参数如下：

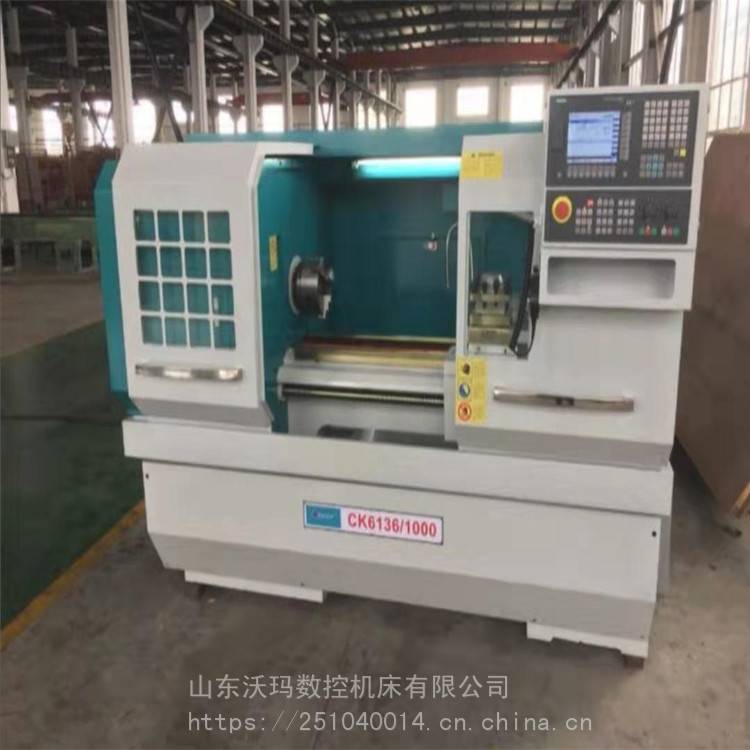

CK6136/1000 | |||
序号 | 单位 | CK6136/1000 参 数 | |
1 | 回转直径swing over bed | mm | Φ360 |
2 | 切削直径Maximum cutting diameter | mm | Φ360 |
3 | 加工长度maximum machining length | mm | 750 |
4 | X/Z轴行程Maximum tr***el of X/Z axis | mm | 220/750 |
5 | X/Z 轴***小位移单位Minimum displacement unit of X/Z axis | mm | 0.001 |
6 | 主轴通孔直径Spindle bore | mm | Ф52 |
7 | 主轴内孔锥度spindle taper | M5 | |
8 | 主轴级数Spindle series | 无极变速 | |
9 | 主轴极限转速Spindle limit speed | rpm | 20-2200 |
10 | 工件夹紧方式Workpiece clamping method | mm | 手动 |
11 | 主电机功率Main motor power | kW | 5.5 |
13 | X/Z轴X/Z axis | N.m | 4/6N.M |
14 | X/Z轴快移速度Fast moving speed of X/Z axis | m/min | 5/8 |
15 | 刀杆尺寸Arbor Size | mm | 20×20 |
16 | 刀架重复***精度Repetitive position precision | mm | ≤0.004 |
17 | 尾座型式Tailstock type | 手动hand movement (HM) | |
18 | 尾座套筒直径Quill Diameter | mm | Φ65 |
19 | 尾座套筒行程Tr***el of tailstock sleeve | mm | 140 |
20 | 尾座***锥孔Taper type of tailstock quill | 莫氏4# | |
21 | 机床外型尺寸（长×宽×高）Dimensi*** of machine tools (length, width, height, height) | mm | 2100mm×1500mm×1800mm |
22 | 电力需求（功率/电流)Power demand (power / current) | kW/A | 9kW/20A |
