金科二代JK830全液压露天潜孔钻机阿特拉斯螺杆机头

JK830-2一体式全液压露天潜孔钻机中英文参数

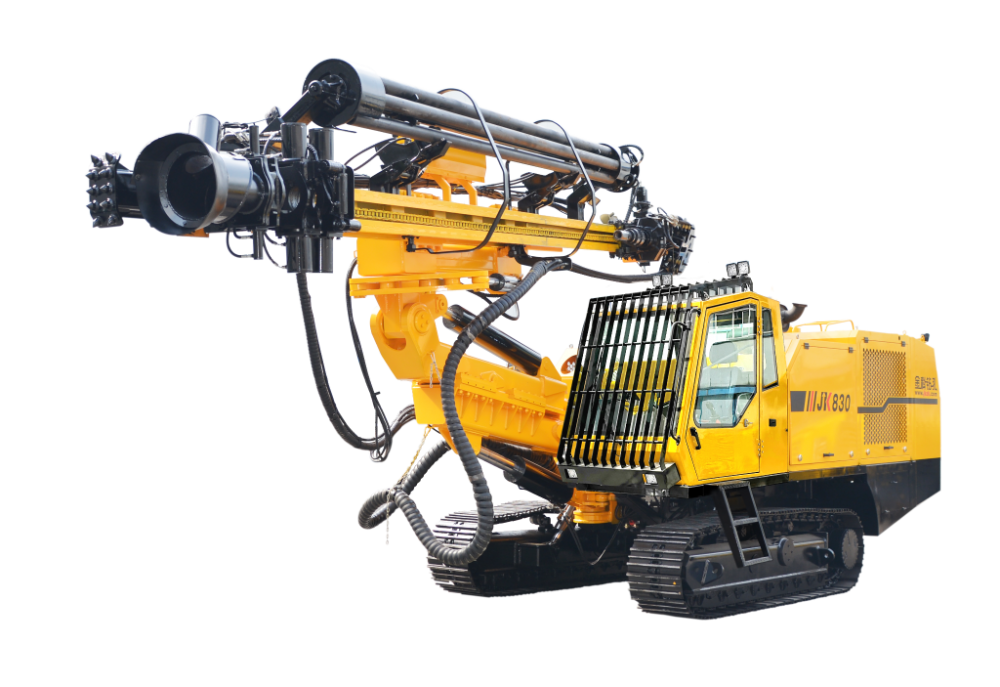

JK830-2一体式全液压潜孔钻机是一款可以为您带来更高自动化、更高钻进效率的产品，运行可靠，操作简单。标配有满足 FOPS 要求的驾驶室和自动换杆系统，加宽重型行走机构，在满足快速移动的同时兼顾更好的安全性，液压除尘系统可满足矿山的***新的环保要求，是现代绿色矿山开采的可

靠解决方案。

JK830-2 is an Al - In - One hydraulic DTH drilling rig , which brings you more automation , higher working eficiency , better reliability and simpler operation . The FOPS - approved cabin and automatic pipe handling system come standard .

 He***y - duty undercarriage with wide tracks ensures both extreme maneuverability and improved safety . The hydraulic dust collecting system meets the latest environmental protection regulati*** and it ＇ s a reliable solution to realize the modern green mining .

主要特点

全自动钻进，单人操作

进口 Rexroth （力士乐）+ Eaton （伊顿）液压控制单元保证扭矩输出强劲，满足各种中大孔径需求

可伸缩重型钻臂，提供更大的扇形钻孔面积，提高有效钻进

时间

柴油机动力充足，冲击力、推进和回转速度可根据岩层的硬

度等地质条件做无级调整，适合多种复杂岩层以及地形要求

配置 Atlas · Copco 2级进口机载空压机，进尺效率高，而且成孔质量更好

 Automatic drilling , single operator

 Imported Rexroth and Eaton hydraulic control unit ensures strong torque output to meet large hole driling needs

 Extendable he***y - duty boom has a large drilling coverage to

 increase working efficiency

 The diesel engine ofers strong power . Impacting , feeding and rotating rate can be variably adjusted to suit diferent rock formati***

 Imported Airman two - stage air compressor can switch between two compression stages , increases penetration rate and hole quality

回转机构配有浮动接头，可以起到减振作用，同时在接卸钻杆时保护钻杆螺纹。使用寿命长，调整方便。

 The rotation unit is equipped with a floating connector which can reduce vibration as wel as protect pipe threads when loading / unloading drill pipes . It＇s easily adjusted and has a long service life .

采用伸缩式重型液压钻臂，扩大了钻孔的工作范围。三自由度多向***的钻臂结构，实现***的凿岩角度覆盖。

 The extendable he***y - duty boom ensures a larger driling coverage . The boom structure has three degrees of *** to ensure a wider range of driling angles .

采用满足国三阶段排放标准的大功率电喷发动机，动力充足，转场迅捷，油耗更低，同时保证发动机的使用寿命。 Atlas · Copco 高压空气压缩机，冲击力强劲（采用中高压和高压两段式压力设计，节约能耗同时保证各种工况的使用）

 The powerful EFI Cummins diesel engine is rated at 335kW with lower fuel c***umption and meets the National Il emission standard . The imported Airman air compressor from Japan offers strong flushing power ( two - stage compression design , better fuel efficiency and solid performance in any working situati*** .
