sectional directional control valves: DCV series (DCV60 series & DCV100 series)
u Sectional types with 1 to 7 working secti***
u DCV60 series’ flow: 50l/min, max 60l/min with pressure up to 315bar;
u DCV100 series’ flow: 80l/min, max 100l/min with pressure up to 315bar;
u DCV60 series’ operation methods: pneumatic control; electrical+ pneumatic control; spring return; ball locking

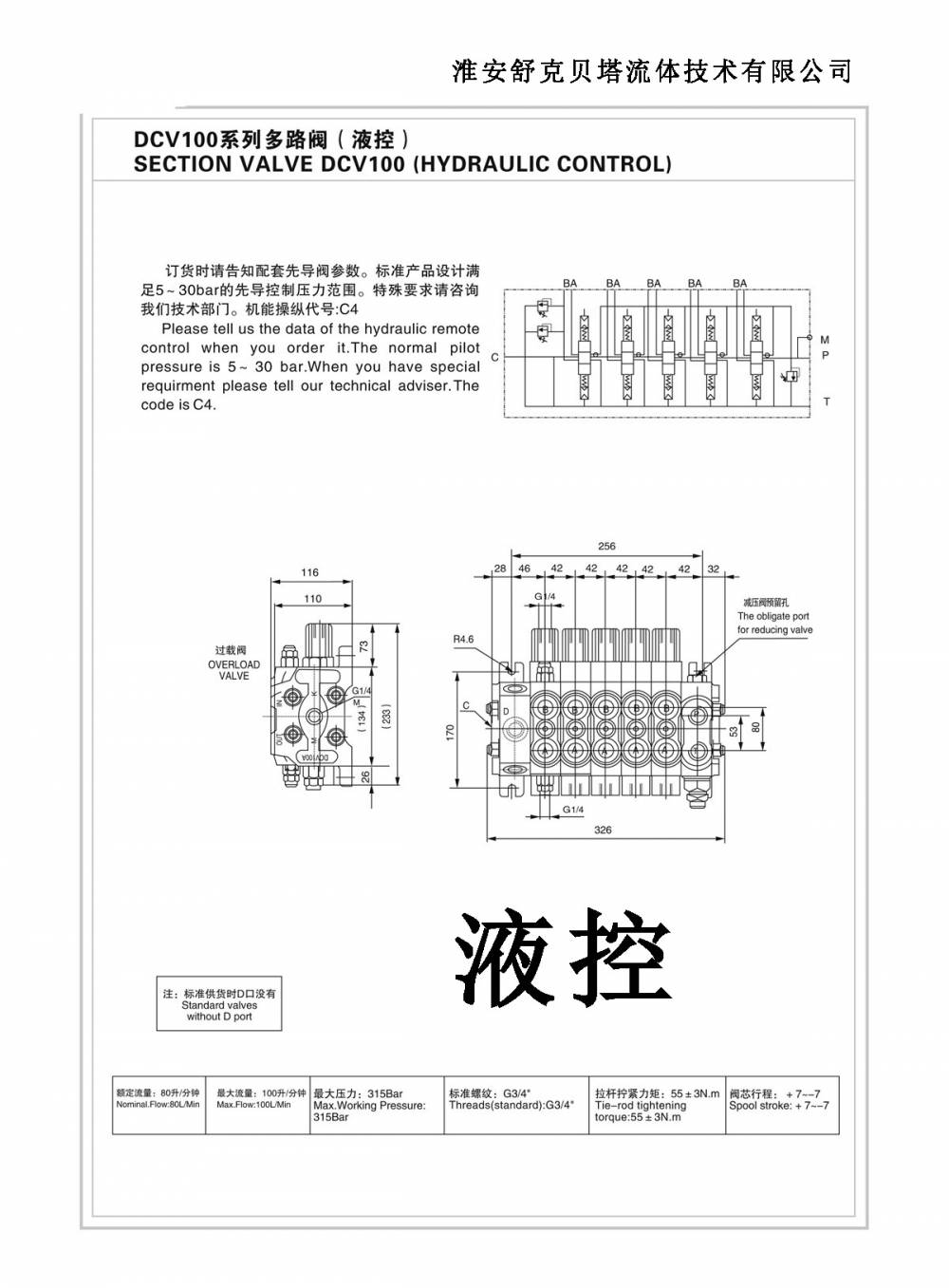

u DCV100 series’ operation methods: pneumatic control; electrical+ pneumatic control; spring return; ball locking; hydraulic control
u Joining port: L (screw connection)
u Selective spool functi***: O, W etc.
u Nominal diameter: G1/2; G3/4;
u Model examples: DCV100-4OQ; DCV60-2OW.2OT; DCV100-OT-S; DCV60-4OQ; DCV100-2ODQ etc.
