1. General Description

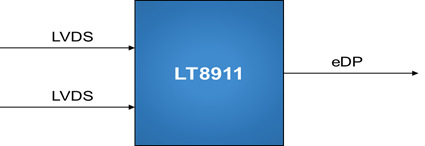

The Lontium LT8911 LVDS to eDP converter features a single-port or dual-port configurable LVDS receiver with 1 clock lane and up to 10 data lanes operating at maximum 1.5Gbps per data lane; a maximum input bandwidth of 12Gbps. The converter deserializes input LVDS data, decodes packets and converts the formatted video data stream to a single-link VESA eDP1.4 compliant output with 1/2/4 configurable data lanes, supporting RBR(1.62Gbps) and HBR(2.7Gbps) link speeds. The build-in optional *** function reduces EMI effect on EMI-concerned system application.
2. Features
• Single/Dual-port LVDS Receiver
• eDP1.4 Tran***itter
• Miscellaneous
3. APPLICATI***
• Mobile systems
• Cellular handsets
• Digital video cameras
• Digital still cameras
• Personal media players
• Gaming
LT8911EXB
功能：MIPI CSI/DSI转EDP信号转换芯片
特征：
1. 单端口MIPI DSI***
--符合D-PHY1.2 DSI1.3和CSI1.3
--1个时钟通道和1-4个可配置的数据通道
--每个数据通道80Mb/s-2.0Gb/s
--数据通道和极***换
--数据通道输入去偏斜
--内部Rterm校准w/i小于5%的错误
--3位可编程均衡
--可支持突发和非突发模式
--支持16/18/24/30/36位RGB和YUV格式
与LT8911B完全pin to pin替换
