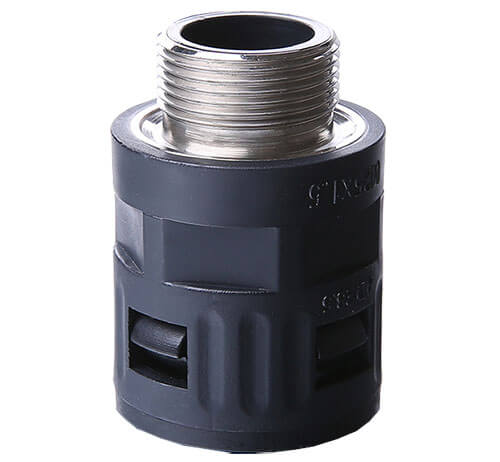

EPIN金属螺纹尼龙软管接头系列
Flexible Conduit Fittings with metal thread
EPIN Plastic Flexible Conduit Fittings>Metal thread Plastic Conduit Connector
上海颐品自动化科技有限公司
Products Technical Date:
1. Material: Polyamide(pa), thread is nickel plated brass
2. Working Temperature: -40℃~ +110℃
3. Threads: PG and Metric
4. Protection Level: IP66.
5. Packaging: PE coated with carton.
6. Size:
Metric Thread
| Specification | Matched Conduit Outer Diameter | Thread | Thread Length |
| TR-AD15.8/M16 | AD15.8 | M16*1.5 | 12mm |
| TR-AD15.8/M20 | AD15.8 | M20*1.5 | 12mm |
| TR-AD21.2/M20 | AD21.2 | M20*1.5 | 13mm |
| TR-AD28.5/M25 | AD28.5 | M25*1.5 | 13mm |
| TR-AD28.5/M32 | AD28.5 | M32*1.5 | 13mm |
| TR-AD34.5/M32 | AD34.5 | M32*1.5 | 13mm |
| TR-AD34.5/M40 | AD34.5 | M40*1.5 | 13mm |
| TR-AD42.5/M40 | AD42.5 | M40*1.5 | 14mm |
| TR-AD42.5/M50 | AD42.5 | M50*1.5 | 14mm |
| TR-AD54.5/M50 | AD54.5 | M50*1.5 | 14mm |
|
TR-AD54.5/M63
|
AD54.5
|
M63*1.5
|
14mm
|
PG Thread
| Specification | Matched Conduit Outer Diameter | Thread | Thread Length |
| TR-AD15.8/PG11 | AD15.8 | PG11 | 12mm |
| TR-AD21.2/PG13.5 | AD21.2 | PG13.5 | 13mm |
| TR-AD21.2/PG16 | AD21.2 | PG16 | 13mm |
| TR-AD28.5/PG21 | AD28.5 | PG21 | 14mm |
| TR-AD34.5/PG29 | AD34.5 | PG29 | 14mm |
| TR-AD42.5/PG36 | AD42.5 | PG36 | 17mm |
| TR-AD54.5/PG48 | AD54.5 | PG48 | 17mm |
Remarks:
MOQ: 10pcs. Payments: T/T, Western Union, Paypal are ***ailable. Others are negotiated.
Customizable Service: Metal thread quick connectors customizable is workable for us.
