G3PE固态继电器

单相/三相加热用固态继电器   [单相] 小巧、纤细的散热器一体型SSR。 备有无过零型，应用更广泛。 • 符合RoHS标准。 • 备有无过零型。 • 输出回路的抗浪涌电压性能进一步提高。 • 形状小巧纤细。 • 可以DIN导轨安装或螺钉安装。 • UL、CSA、和EN规格申请中（TÜV 认证）。 [三相] 小巧、纤细的散热器一体型SSR。 三相加热器用固态接触器， DIN导轨安装可以缩短安装工时。 • 符合RoHS标准。 • 输出回路的抗浪涌电压性能进一步提高。 • 设计纤小的散热器内置型3相输出型。 • 可以DIN导轨安装和螺钉安装。所有DIN导轨安装型必须安装到DIN导 轨上（适用DIN导轨：TR35-15Fe （IEC 60715））。 • UL、CSA、和EN规格申请中（TÜV 认证）。

Solid State Relays

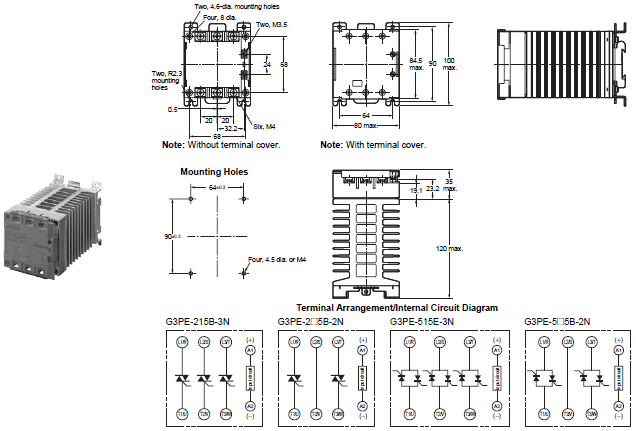

Models with DIN Track Mounting
G3PE-215B-3N
G3PE-215B-2N
G3PE-225B-2N
G3PE-515B-3N
G3PE-515B-2N
G3PE-525B-2N

Models with DIN Track Mounting

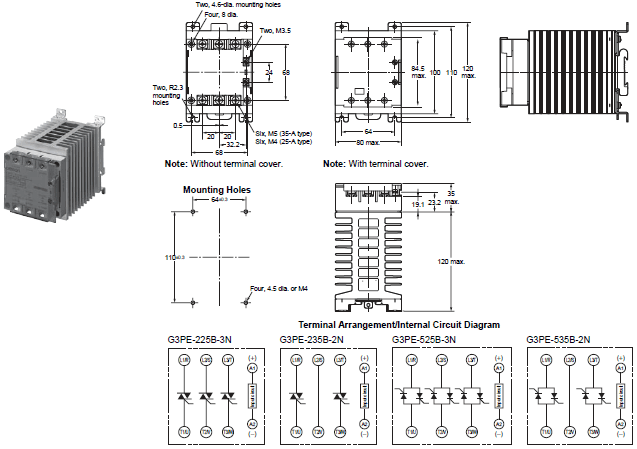

G3PE-225B-3N
G3PE-235B-2N
G3PE-525B-3N
G3PE-535B-2N

Models with DIN Track Mounting

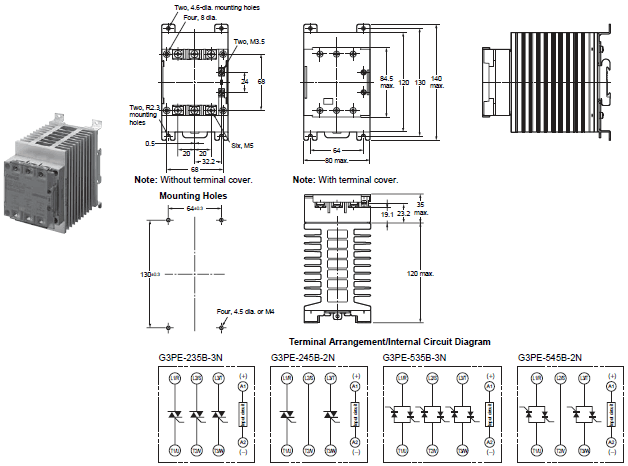

G3PE-235B-3N
G3PE-245B-2N
G3PE-535B-3N
G3PE-545B-2N

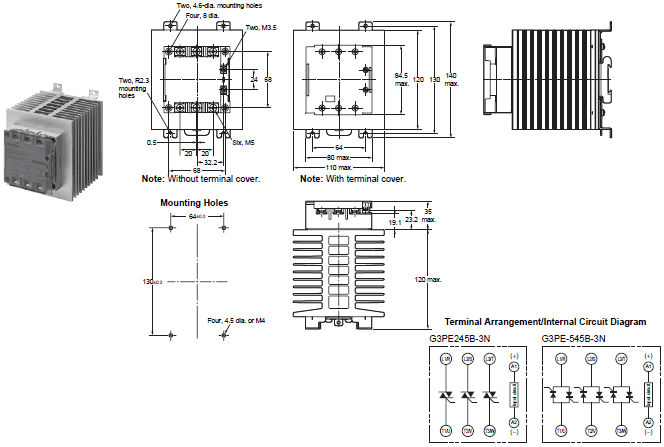

Models with DIN Track Mounting
G3PE-245B-3N
G3PE-545B-3N

Models with Screw Mounting

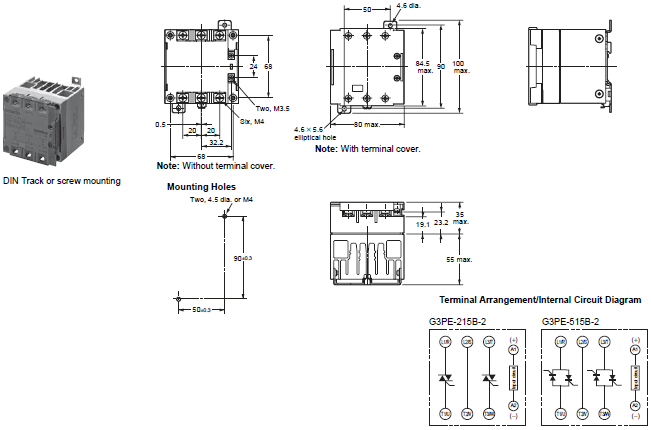

G3PE-215B-2
G3PE-515B-2

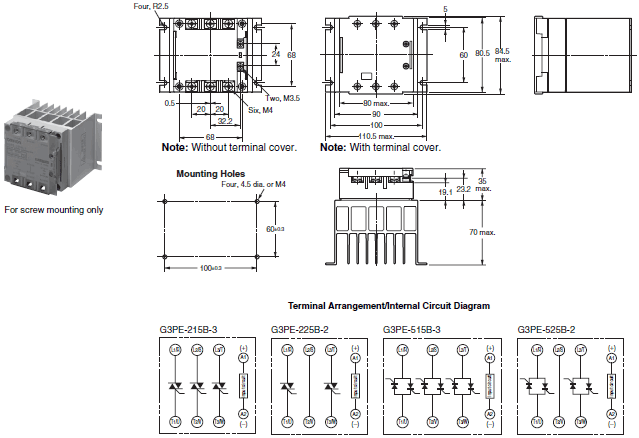

Models with Screw Mounting
G3PE-215B-3
G3PE-225B-2
G3PE-515B-3
G3PE-525B-2

Models with Screw Mounting

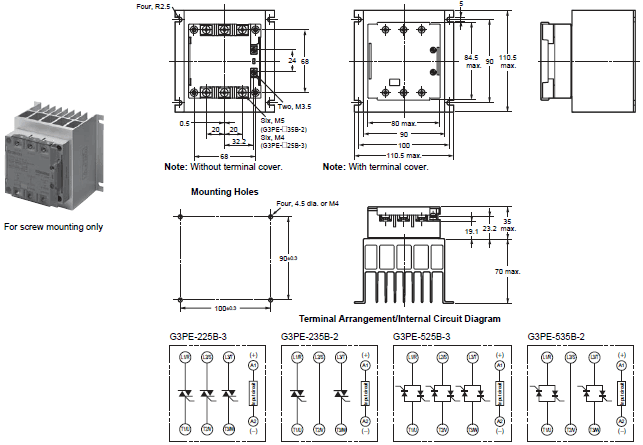

G3PE-225B-3
G3PE-235B-2
G3PE-525B-3
G3PE-535B-2

Models with Screw Mounting

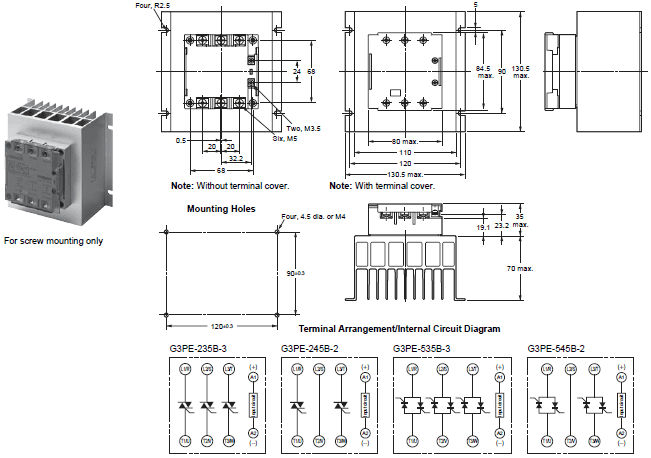

G3PE-235B-3
G3PE-245B-2
G3PE-535B-3
G3PE-545B-2

Models with Screw Mounting

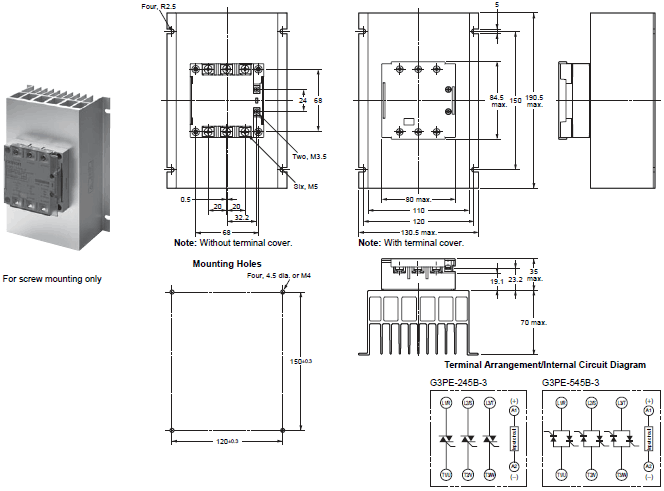

G3PE-245B-3
G3PE-545B-3

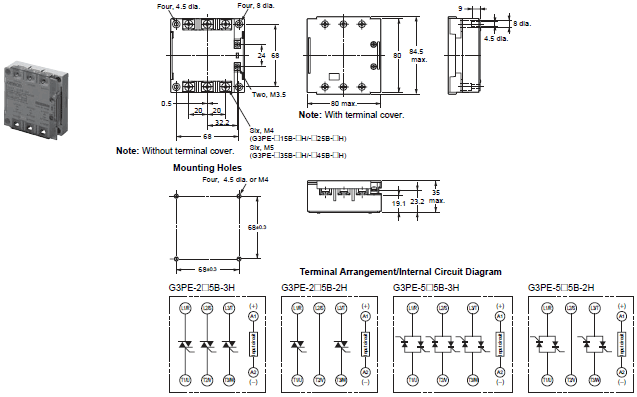

Models with Externally Attached Heat Sinks
G3PE-215B-3H
G3PE-215B-2H
G3PE-225B-3H
G3PE-225B-2H
G3PE-235B-3H
G3PE-235B-2H
G3PE-245B-3H
G3PE-245B-2H
G3PE-515B-3H
G3PE-515B-2H
G3PE-525B-3H
G3PE-525B-2H
G3PE-535B-3H
G3PE-535B-2H
G3PE-545B-3H
G3PE-545B-2H

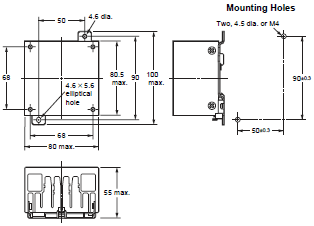

Accessories (Order Separately)

Heat Sink
Y92B-P50 (Mounts to DIN Track.)
For G3PE-215B-2H and G3PE-515B-2H

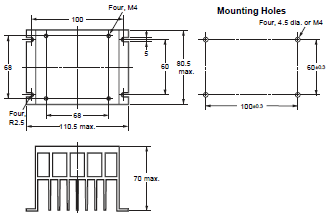

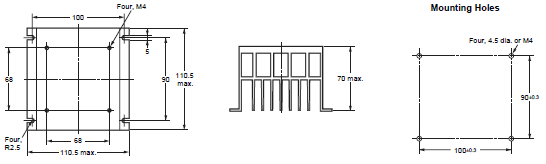

Heat Sink
Y92B-P150
For G3PE-225B-3H, G3PE-235B-2H, G3PE-525B-3H, and G3PE-535B-2H

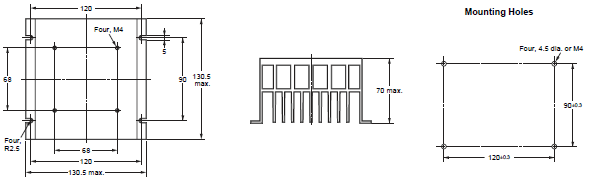

Heat Sink
Y92B-P200
For G3PE-235B-3H, G3PE-245B-2H, G3PE-535B-3H, and G3PE-545B-2H

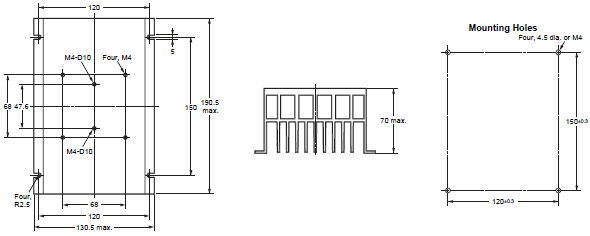

Heat Sink
Y92B-P250
For G3PE-245B-3H and G3PE-545B-3H
