广 州 建 港 钢 丝 绳 有 限 公 司 GUANGZHOU JIANGANG WIREROPE CO.,LTD. |
||||
 |
|||||
|
绳径d(毫米) |

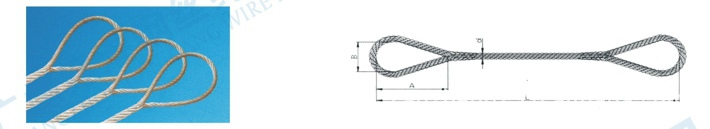

软环尺寸(毫米) Soft loop dimension(mm) |
最小破断力（吨）MBL(t)
|
工作极限负荷(吨) Working load limit(t) |
||
|
A |
B |
n=5 |
n=6 |
||
|
5 |
130 |
65 |
1.25 |
0.24 |
0.20 |
|
6 |
150 |
75 |
1.80 |
0.34 |
0.28 |
|
7 |
150 |
75 |
2.46 |
0.48 |
0.38 |
|
8 |
200 |
100 |
3.21 |
0.60 |
0.50 |
|
9 |
200 |
100 |
4.07 |
0.72 |
0.60 |
|
10 |
200 |
100 |
5.03 |
0.90 |
0.75 |
|
11 |
230 |
115 |
6.08 |
1.10 |
0.90 |
|
12 |
230 |
115 |
7.23 |
1.30 |
1.10 |
|
13 |
230 |
115 |
8.49 |
1.50 |
1.30 |
|
14 |
250 |
125 |
9.85 |
1.80 |
1.50 |
|
16 |
300 |
150 |
12.85 |
2.30 |
1.90 |
|
18 |
300 |
150 |
16.32 |
2.90 |
2.40 |
|
20 |
350 |
175 |
20.09 |
3.60 |
3.00 |
| 22 |
350 |
175 |
24.27 |
3.90 |
3.20 |
|
24 |
450 |
225 |
28.96 |
4.60 |
3.90 |
|
26 |
450 |
225 |
33.96 |
5.40 |
4.50 |
|
28 |
500 |
250 |
39.36 |
6.30 |
5.20 |
|
30 |
500 |
250 |
45.17 |
7.20 |
6.00 |
|
32 |
^ 550 |
275 |
51.39 |
7.70 |
6.40 |
|
34 |
600 |
300 |
58.12 |
8.70 |
7.30 |
|
36 |
600 |
300 |
65.06 |
9.80 |
8.10 |
|
38 |
600 |
300 |
72.50 |
10.90 |
9.10 |
|
40 |
700 |
350 |
80.35 |
12.10 |
10.00 |
|
42 |
800 |
400 |
88.61 |
12.40 |
10.30 |
|
44 |
800 |
400 |
97.28 |
13.60 |
11.30 |
|
46 |
900 |
450 |
106.05 |
14.80 |
12.40 |
|
48 |
900 |
450 |
116.25 |
16.30 |
13.60 |
|
50 |
1000 |
500 |
125.43 |
17.60 |
14.60 |
|
52 |
1000 |
500 |
135.62 |
19.00 |
15.80 |
|
54 |
1000 |
500 |
146.84 |
20.60 |
17.10 |
|
56 |
1000 |
500 |
157.04 |
22.00 |
18.30 |
|
58 |
1200 |
600 |
169.27 |
23.70 |
19.70 |
|
60 |
1200 |
600 |
180.49 |
25.30 |
21.10 |
|
62 |
1200 |
600 |
185.59 |
26.00 |
21.70 |
|
64 |
1300 |
650 |
197.82 |
27.70 |
23.10 |
|
66 |
1300 |
650 |
210.06 |
29.40 |
24.50 |
|
68 |
1400 |
700 |
223.32 |
31.30 |
26.10 |
|
70 |
1400 |
700 |
236.57 |
33.10 |
27.60 |
|
72 |
1400 |
700 |
249.93 |
35.00 |
29.20 |
|
74 |
1500 |
750 |
264.01 |
37.00 |
30.80 |
|
76 |
1500 |
750 |
278.38 |
39.00 |
32.50 |
|
78 |
1600 |
800 |
293.68 |
41.10 |
34.30 |
|
80 |
1600 |
800 |
307.95 |
43.10 |
35.90 |
|
82 |
1600 |
800 |
324.27 |
45.40 |
37.80 |
|
84 |
1700 |
850 |
339.57 |
47.50 |
39.60 |
|
86 |
1700 |
850 |
356.90 |
50.00 |
41.60 |
|
88 |
1800 |
900 |
373.22 |
52.30 |
43.50 |
|
90 |
1800 |
900 |
390.55 |
54.70 |
45.60 |
|
92 |
1800 |
900 |
407.89 |
57.10 |
47.60 |
|
94 |
1900 |
950 |
426.24 |
59.70 |
49.70 |
|
96 |
1900 |
950 |
444.60 |
62.20 |
51.90 |
|
98 |
2000 |
1000 |
462.95 |
64.80 |
54.00 |
|
100 |
2000 |
1000 |
482.33 |
67.50 |
56.30 |
|
102 |
2000 |
1000 |
501.10 |
70.20 |
58.50 |
|
104 |
2100 |
1050 |
521.07 |
72.90 |
60.80 |
|
106 |
2100 |
1050 |
541.47 |
75.80 |
63.20 |
|
108 |
2200 |
1100 |
561.86 |
78.70 |
65.60 |
|
110 |
2200 |
1100 |
583.28 |
81.70 |
68.00 |
