| 品牌 | 绿洲 | 型号 | SPB |
| 别名 | 标准筛 | 用途 | 分级粒度 |
| 筛面层数 | 8 | 筛面长度 | 200（mm） |
| 筛孔尺寸 | 200（mm） | ***大入料粒度 | 2（mm） |
| 重量 | 0.06（t） | 产品类型 | 全新 |
| 功率 | 0.37kw | 类型 | 标准筛 |
| 筛网材料 | 金属丝编织网 | 物料运动轨迹 | 圆振筛 |
试验室筛分设备、标准筛技术参数
Technical Parameter of laboratory Screen and standard screen
主要供煤电、电力、矿山、地质、化工、冶金、建材及化工等行业科研单位、院校实验室内物料筛分分析。是替代人工手筛筛分、减轻操作人员劳动强度，电器控制设有电子计数控制器，使筛内试料得到准确的筛分次数。本产品由原地矿部***指定企业生产，执行行业标准。

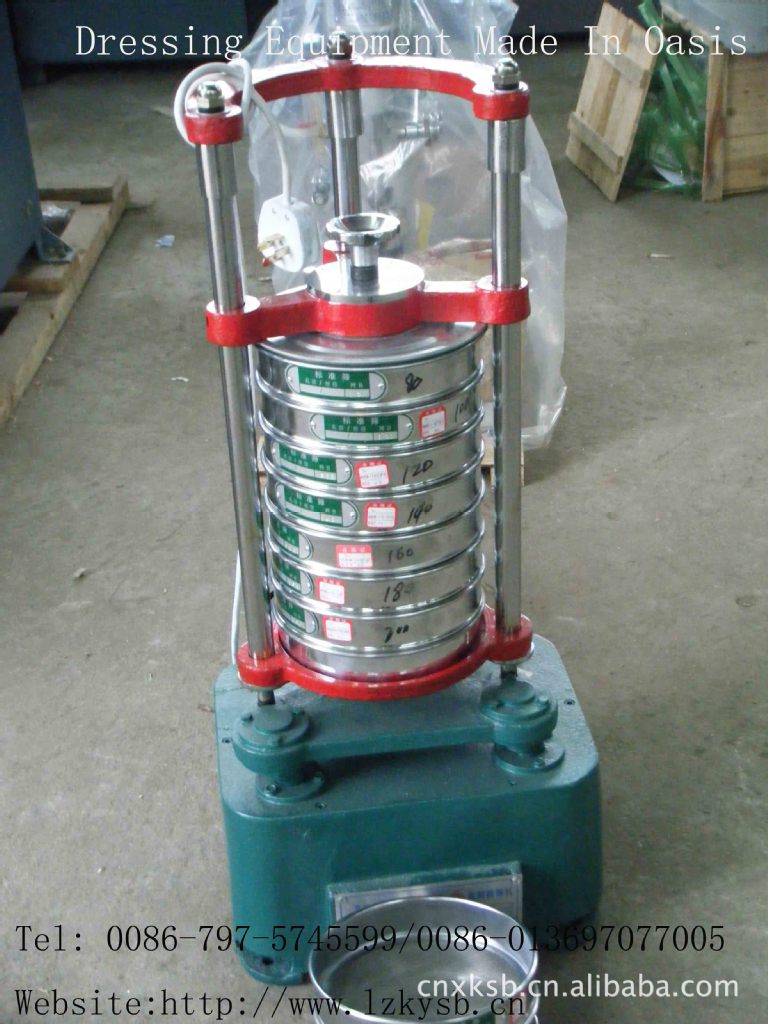

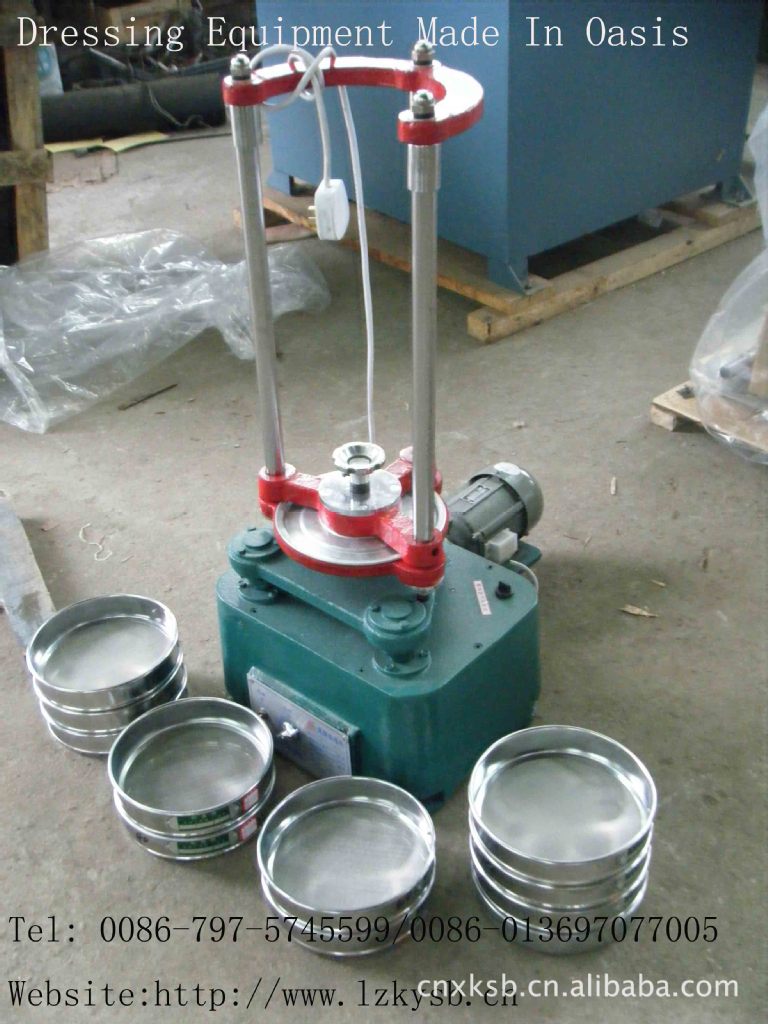

实验室振筛机结构***，性能良好，具有转制幅度大，振动力强，使用方便，筛选效果好，使用夹套方便灵活等特点。
该机配200目标准筛，筛摇动次数221次/分，振击次数147次/分
Primarily for coal, electricity, mining, geological, chemical, metallurgy, building materials and chemical industries and scientific research units, instituti*** screening laboratory analysis of materials. Is the alternative to manual hand sieves sieving, reducing operator labor intensity, the electrical control of an electronic counting controller, so that screening test is expected to be accurate within the screening times. This product is the only designated former Ministry of Geology and Mineral production, the implementation of industry standa***.
Laboratory test sieve shaker advanced structure, good performance with a conversion rate of big, strong vibration, easy to use, screening effective, easy to use and flexible jacket and so on.
Machine equipped with 200 standard sieve, sieve shaking frequency of 221 beats / min, the vibration hit number 147 beats / min
|
型号Model |
筛框尺寸 Screen size |
筛孔尺寸Hole size |
给料粒度Feed size |
层数Number |
处理里Capacity |
功率Power |
重量Weight |
|
|
mm |
mm |
mm |
|
t/h |
kw |
kg |
|
SPB 200 |
200 |
20-200 |
0.5 |
5 |
|
0.37 |
210 |
|
SDB 200 |
200 |
20-200 |
0.5 |
8 |
|
0.37 |
120 |
|
XSZ 600/300 |
600/300 |
2-25 |
4.5 |
2 |
5 |
0.55 |
125 |
|

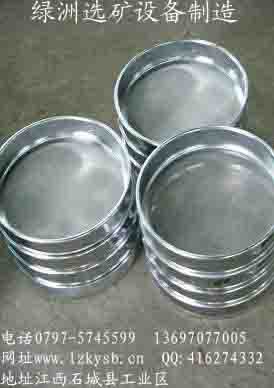

标准筛（铜网、不锈钢网） |
200 |
20-200 |
0.5 |
|
|
|
|
