| 类型 | 温度记录仪 | 品牌 | 新西兰Logtag |
| 型号 | TRIL-8 / SRIL-8 | 测量范围 | -80°C ~ +40°C |
| 测量精度 | &plu***n;1°C |
不带外置探头
带外置探头
深圳中际冷链电子有限公司 电话:0755-3695 7202 传真: 0755-6162 4199 邮箱: sales@.cn

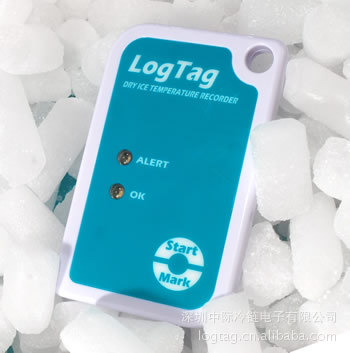

Logtag -80°C 干冰记录仪 （三程/单程使用）
【产品介绍】
Highlights产品亮点 | |
| Alert indicator – indicates if readings are outside of preset limits 'Alert'指示灯－温度超标时红色闪烁显示 |
| OK indicator indicates if still recording and if readings within configured limits‘OK’指示灯－记录温度在指定范围内时绿色闪烁显示 |
| Inspection mark in log by push buttonMark’检查键查询全程是否有温度超标 |
| Push Button Logging start with optional delayed start or specific Time & Date start记录仪可手工立即启动，也可***启动 |
| Rapid Download! Takes only seconds to download recordings几秒内快速***记录的数据 |
| ‘Pre-Start’ logging - Logtag can be configured to record even if it has not been started.预启动（影子记录）功能，即使忘记启动也有数据被记录 |
| High performance at low cost高品质***格 |
| Credit card sized case – thin enough to be easily mailed “letter rate”.卡片大小，轻薄可邮寄 |
| Real time clock reco*** time & temperature simultaneously 实时记录温度与时间信息 |
| Easy to use LogTag Analyzer software that runs on any PC configures LogTag for recording then downloads resulting data for analysis. Data can also be exported to fomats compatible with other applicati*** such as MS ExcelLogTag Analyzer软件可在任何电脑上快速***和分析数据，这些数据可以多种形式导出，如TXT、Excel、PDF等 |
| Re-calibration to achieve higher accuracy possible通过再校准，可将记录仪的温度***度提升至更高 |
深圳中际冷链电子有限公司 电话:0755-3695 7202 传真: 0755-6162 4199 邮箱: sales@.cn
Product Specificati***【产品规格】
Specificati***产品规格书 | ||
Model#型号 |
| TRIL-8 (Multi-use : 3 trips) 3程使用 |
Measurement Range温度范围 |
| -80 ~ +40°C (-112°F ~ +104°F) |
Resolution显示精度 |
| < 0.1°C for -80°C ~ 0.0°C, |
Accuracy***度 |
| Better than &plu***n;1°C for -30°C~ +20°C |
Sensor reaction time反应时长 |
| typically less than 5 minutes(T90) in moving air (1m/s). 小于5秒 |
Capacity内存容量 |
| 8000 temperature readings (16Kbytes memory) 8000组温度数据 |
Sampling frequency取样间隔 |
| adjustable, 1~60 minutes or 1~18 hours1－60分钟 或1－18小时 可调 |
Logging start opti***启动方式 |
| Push button start or specific date & time.手工立即启动 或者***启动 |
Recording indication工作指示 |
| Flashing 'OK' indicator flashing 'Alert' indicator.OK绿色灯闪烁/Alert红色灯闪烁 |
Download Time***时长 |
| Typically with full memory (8000 readings) in less than 5 secs depending on computer or readout device used. 小于5秒 |
Environmental防水防尘等级 |
| IP65 (roughly equivalent to NEMA 4) |
Power source电源 |
| 3V low temperature chemistry Lithium battery.3V锂电池 |
Battery life电池寿命 |
| Minimum storage life of 12 months before ‘start’. 未启动***短储存寿命12个月 |
Size尺寸 |
| 86mm(H)x54.5mm(W)x8.6mm(T) |
Weight重量 |
| 35g |
Case Material外壳材料 |
| Polycarbonate聚碳酸酯 |
Other features其它特点 |
| • Optional clearing of alert indication by push button(按'Mark'检查键可清楚报警提示－可选). |
Note: Resolution & Accuracy are rated values - actual product performance may be substantially better than figures stated. 备注：显示精度和***度只是额定值 － 实际产品性能可能高于此值。 | ||
