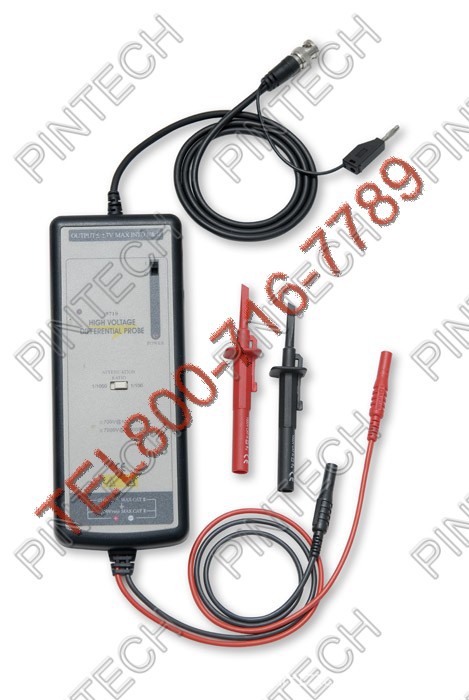

| 类型 | 指针式电压测量仪表 | 品牌 | PINTECH |
| 型号 | PT-8101 | 测量范围 | 700（V） |
| 输入电压 | 700（V） | 输出电压 | 见参数（V） |
| 环境温度 | -10~40（℃） | 重量 | 500（g） |
| 外形尺寸 | 202*83*38（mm） | 电压测量误差 | 2% |
Specificati***
| |||
Bandwidth | 100MHz | ||
Accuracy | &plu***n;2% | ||
Input Impedance | 4KΩ//7 p F each side ground | ||
Output Voltage | |||
-Swing(into 50 KΩ load) | &plu***n;7V | ||
-Offset(typical) | ＜&plu***n;5Mv | ||
-Source Impedance（typical） | 50Ω | ||
Power Requirements | |||
-Standard | 4×AA cells or 6V DC/70m A mains adaptor regulated 9V DC/120m A mains adaptor | ||
-Opti*** | power leads | ||
Length of BNC Lead | 90cm | ||
Length of Input Leads | 30cm | ||
Weighr | 500g | ||
Dimension(L×W×H) | 202mm×83mm×38mm | ||
| |||
Specificati*** | PT-8101 | PT-8110 | |
Attenuation Ratio | 1:10/100 | 1:100/1000 | |
CMRR(typical) | -85dB@50Hz,-55dB@1MHz | -80dB@60Hz,-50d B@1MHz | |
Differential Input Voltage (DC+ Peak AC) | &plu***n;70V@1/10 &plu***n;700V@1/100 | &plu***n;140@1/100 &plu***n;1400@1/1000 | |
Common Mode Voltage (DC+Peak AC) | &plu***n;700V@1/10＆1/100 | &plu***n;1400V@1/100＆1/1000 | |
Absolute Max .Input (Each side to ground) | 1000V rms CATⅢ | 1000V rms CATⅢ | |
| |||
Features: ·Bandwidth up to 100MHz ·Up to&plu***n;1400V(DC+Peak AC) Differential and Common Mode ·Safety Certified Applicsti***: ·Switching Power Supply Design ·Motor Drive Design ·Electronic Ballast Design ·CRT Display Design
| |||
