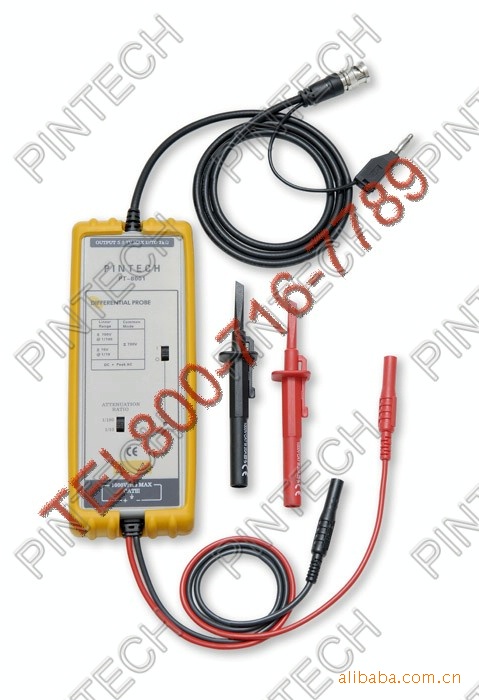

| 类型 | 差分探头 | 品牌 | 台湾品致 |
| 型号 | PT-8001 | 测量范围 | 700（V） |
| 输入电压 | 700（V） | 环境温度 | -10~40（℃） |
| 重量 | 400（g） | 外形尺寸 | 170*63*21（mm） |
| 电压测量误差 | +/-2% |
Specifications
| |
Bandwidth | 25MHz |
Accuracy | ±2% |
Input Impedance | 4KΩ//5.5 p F each side ground |
Output Voltage | |
-Swing(into 50 KΩ load) | ±7V |
-Offset(typical) | ＜±5mV |
-Noise（typical） | 0.7mV rms |
Power Requirements | |
-Standard | 4×AA cells or 6V DC/60m A mains adaptor or regulated 9V DC/40m A mains adaptor |
-Options | power leads |
Weighr | 400g (probe and PVC jacket) |
Dimension(L×W×H) | 170mm×63mm×21mm |
|
|
|
|
Specifications | PT-8001 | PT-8002 |
Attenuation Ratio | 1:10/100 | 1:20/200 |
CMRR(typical) | -86dB@50Hz,-66dB@20MHz | -80dB@50Hz,-60dB@20kHz |
Differential Input Voltage (DC+ Peak AC) | ±70V@1/10 ±700V@1/100 | ±140@1/20 ±1400@1/200 |
Common Mode Voltage (DC+Peak AC) | ±700V@1/10＆1/100 | ±1400V@1/20＆1/200 |
Absolute Max .Input (Each side to ground) | 1000V rms CATⅢ | 1000V rms CATⅢ |
Features:
·Up to±1400V(DC+Peak AC) Differential and Common Mode
·Safety Certified
·Economical Cost
Applicstions:
·Switching Power Supply Design
·Motor Drive Design
·Electronic Ballast Design
·CRT Display Design
