| 是否提供加工定制 | 否 | 产品名称 | 连接器 |
| 品牌 | GANTER | 型号 | GN240.2 |
| 规格 | 多种供选 | 材质 | 多种供选 |
| 适用机床 | 皆可 | 样品或现货 | 现货 |
| 是否标准件 | 是 | 尺寸 | 多种供选 |
| ***大加工速度 | 1 | 是否库存 | 是 |
| 是否批发 | 是 |

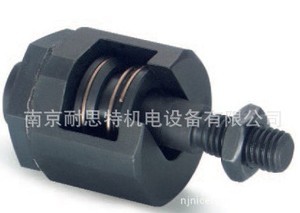

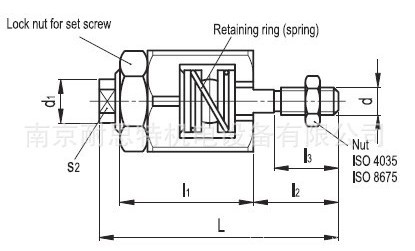

GN 240.2Quick-fit couplings
•Coupling
Steel, tempered, phosphated.
•Retaining ring (spring)
Stainless steel.
Instructi***

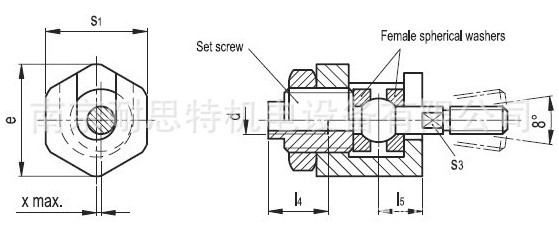

Quick-fit couplings GN 240.2 h***e been designed to compensate a radial
or angular off-set. Furthermore they are axially freely adjustable via the set
screw.
Applicati***
A typical application is the axial link to a piston rod of a cylinder operating in
any type of fixture or system.
Ergonomic and design
The coupling is renowned by its very compact c***truction without any loose
components. The coupling is not designed for the transfer of torque.
