| 样品或现货 | 现货 | 品牌 | JALDER |
| 类别 | 闭口销 | 标准类型 | 德标 |
| 标准编号 | GB879-86 | 公称直径 | 见参数（mm） |
| 公称长度 | 见参数 | 表面处理 | 氧化发黑 |
| 材料等级 | 不锈钢 A1 | 应用范围 | 机械工业用紧固件 |

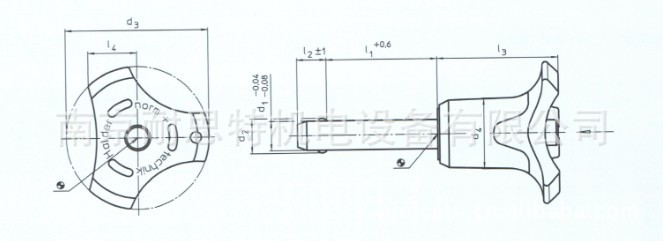

Single-Acting Ball Lock Pins self-locking
Material:
Pin part: stainless steel 1.4542 Handle： plastic (PA6) Spring steel
precipitation-hardened ,hard coated grey/orange,
(marking) grey/blue,
Stainless steel 1.4305 grey/grey
-refer to EH2237
Note:
press=release
for quick fastening,locking ,adjusting changing and securing.Quicklt and easily unlockable for frequently repeated connecti***.
The features of this ball lock pin are:
-
- corrosion-resistant
-ergonomic grip,different colour combinati***
- grip design ***oids unintentional unlocking

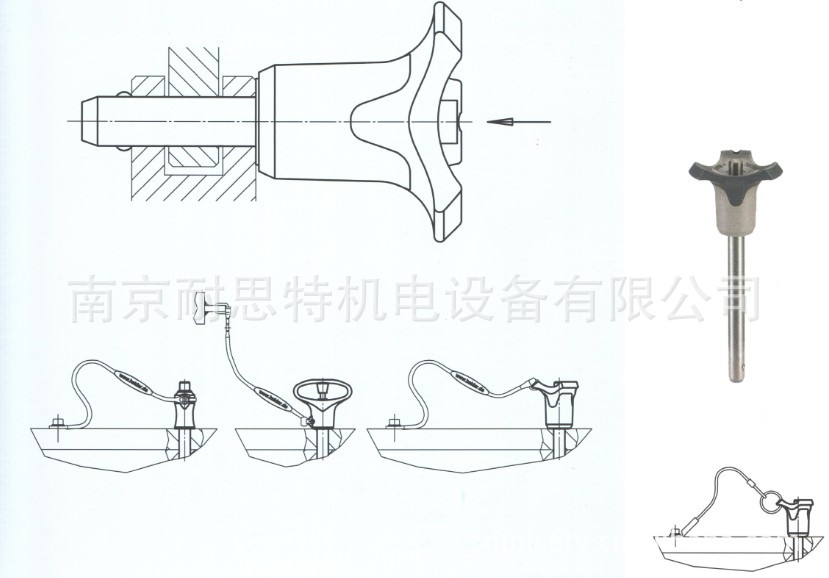

- can easily be fitted with retaining cable EH2240
-temperature range form -30℃ up to +80℃。
