| 种类 | 把手 | 品牌 | ELESA |
| 型号 | GN 598.3 | 材质 | PA |
| 颜色 | 黑色 | 表面处理 | 见参数 |
| 规格 | 标准件 |

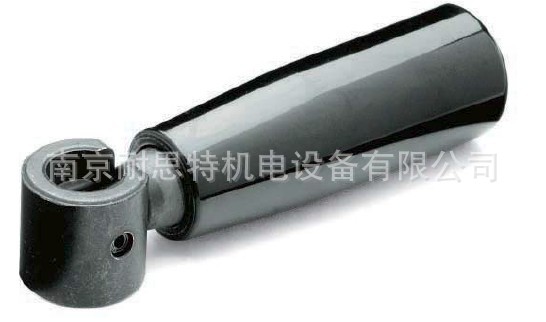

GN 598.3
Fold-away
handles
•Black
phenolic based (PF) Duroplast.
Resistant to solvents, oils, greases and other
chemical agents.

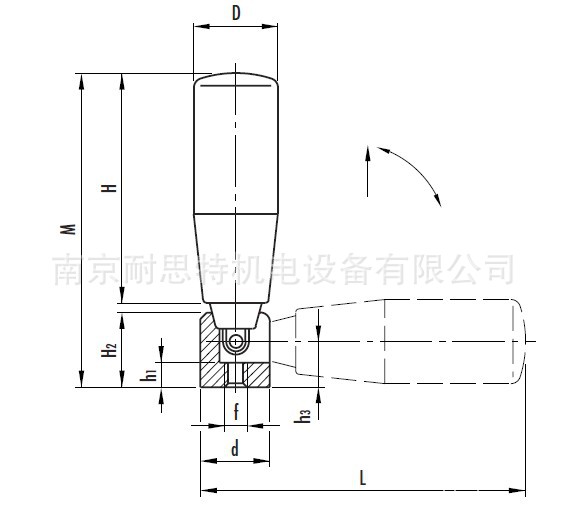

•Black oxidesteel stud.The handle is pulled out of its taper seating
in the
direction of the arrow and then tilted. A
fold-away mechani*** with
compression spring locks the handle in both
end positi***.
GN 598.3 fold-away handles are suitable when
the handle must be
withdrawn during automatic operati*** for
safety reas*** or for lack of space.
