| 样品或现货 | 现货 | 品牌 | HALDER |
| 类别 | 闭口销 | 标准类型 | 德标 |
| 标准编号 | GB91 | 公称直径 | 见参数（mm） |
| 公称长度 | 见参数 | 表面处理 | 多款供选 |
| 材料等级 | 不锈钢 A1 | 应用范围 | 机械工业用紧固件 |
Single -Acting ball lock pins
Material:
pin part: Stainless steel 1.4305 Handel: Plastic (PA6/tpe),
Stainless steel 1.4542, grey/orange
precipitation-hardened,hard coated(making)
NOTE:

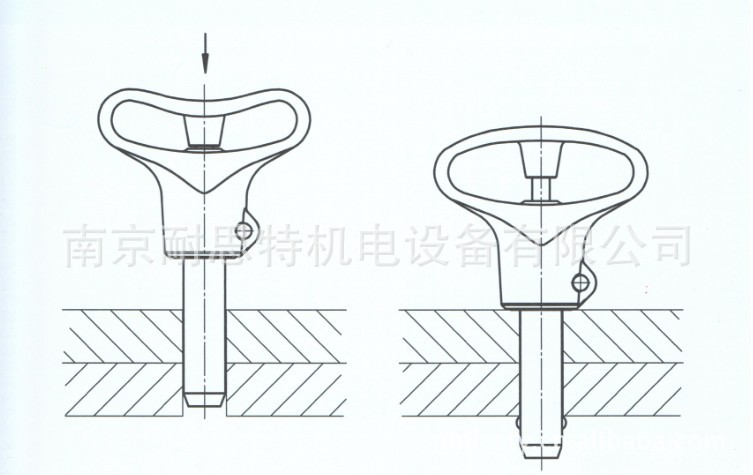

press=release
EH2237.stainless steel 1.4305
EH2238.stainless steel 1.4542,precipitation hardened,hard coated

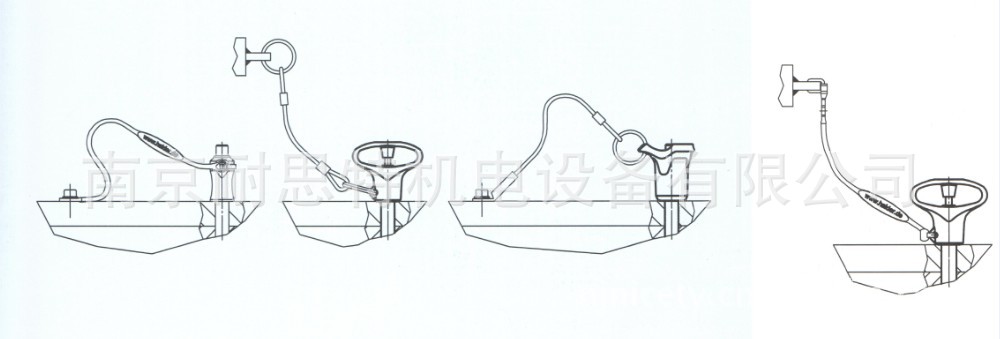

for quick fastening,locking,adjusting,changing and securing,multiple applicati*** in different sectors,e.g. sports,leisure,medical healing and remedial instruments and apparatuses,machine c***truction and engineering etc.quickly and easily unlockable for frequently repeated connecti***.
the features of this ball lock pin are：
-and ergonomic grip with integrated reset(locking)
-new modern,patented design
-corrosion resistant
-solid,hardened,hard coated,abrasion-resistant pin ,h***ing an extreme load capacity (stainless steel 1.4542)
-temperature range from -30℃ up to +80 ℃
