| 是否提供加工定制 | 否 | 品牌 | ELESA |
| 型号 | GN 227.1 | 类型 | 手轮 |
| 规格 | 标准件 | 适用机床 | 皆可 |
| 产品别名 | 见参数 | 材质 | 塑料 |
| 手柄高度 | 见参数（mm） | 手轮高度 | 见参数（mm） |
| 外径 | 见参数（mm） | 是否库存 | 是 |
| 是否批发 | 是 |

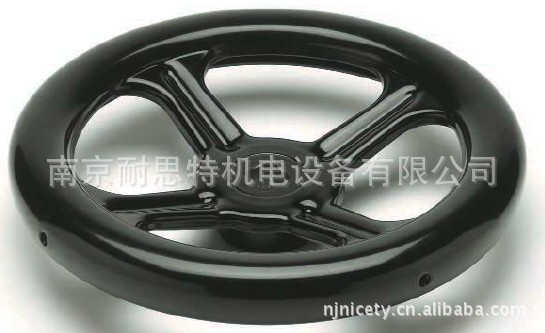

GN 227.1Pressed steel spoked handwheels
•Pressed steel with RAL 9005 black epoxy resin coating with bright
finish.
•Welded hub with:
B = standard H9 tolerance plain bore
K = standard H9 tolerance reamed bore with DIN 6885/1 P9 keyway

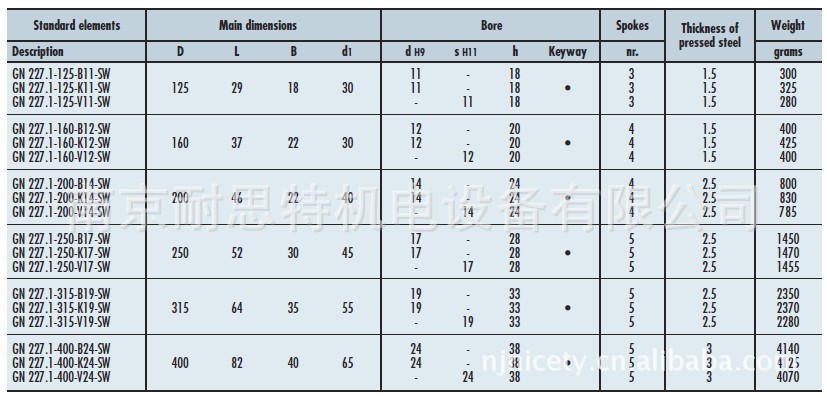

(see table on page 669)
V = H11 tolerance square bore.
•Axial and radial runout lower than IT 12.
Pressed steel handwheels GN 227.1 are renowned for their high mechanical
strength and their resistance to shocks and knocks.
For fixing GN 227.1 on shafts by a grub screw see GN 110 drilling
technical information on page 668.
?
