| 是否提供加工定制 | 否 | 品牌 | ELESA |
| 型号 | EMW+IEL | 类型 | 手轮 |
| 规格 | 德标 | 适用机床 | 皆可 |
| 产品别名 | 手轮 | 材质 | 胶木 |
| 手柄高度 | 见参数（mm） | 手轮高度 | 见参数（mm） |
| 外径 | 见参数（mm） | 是否库存 | 是 |
| 是否批发 | 是 |
EMW+IEL Monospoke handwheels
•Material
High impact strength special technopolymer. Resistant to solvents, oils,
greases and other chemical agents.
•Colour
Black with matte finish.
•Boss
Black oxide steel with standard H7 tolerance reamed hole.

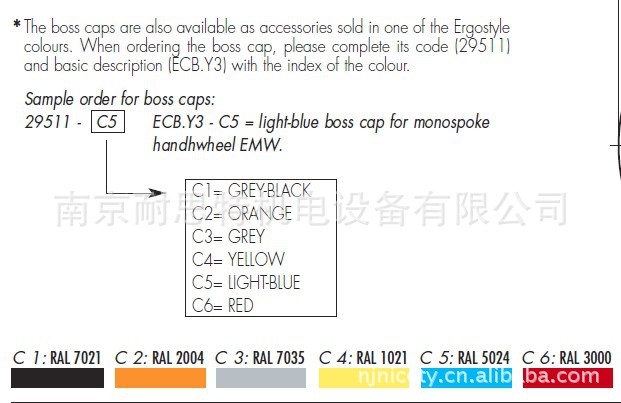

•Boss caps ECB.Y3*
Technopolymer in one of the six Ergostyle colours with glossy finish, press-fit
mounting, removable by pressing on the outer edge.
•Revolving handle
Type IEL+x. Elastomer technopolymer (TPE), Shore 40 hardness D. Black
colour with matte finish. The special two-volume design of this handle
provides the fingers with a safe and ergonomic grip, preventing them from
slipping off during rotation of the handwheel. Moreover it ***oids any risks
of hooking operator’s clothing.
•Accessories on request
Axial retaining washer type GN 184.
Ergonomyand Design
The light visual impact and the eccentric movement effect of EMW.
Monospoke handwheel offer a modern and innovative design. A high degree
of flexibility and resilience to guarantee maximum operator safety in cases of
accidental contact.

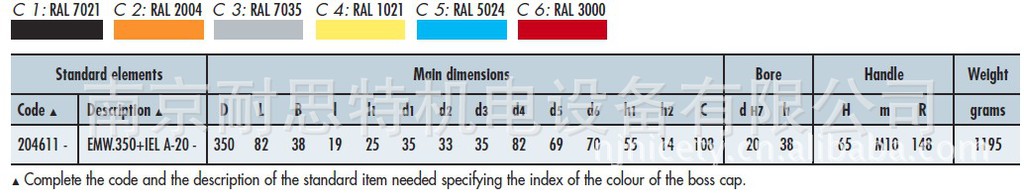

Order
When ordering please complete the code and the description of the element
needed specifying the colour of the boss cap (see the ***ailable colours shown
above the dimensi*** table).
Sample order:
204611 - C3 EMW.350+IEL A-20 - C3
Monospoke handwheel with grey boss caps.
?
