| 型号 | EH2240950-974 | 规格 | 见参数 |
| 类型 | 旋转环 | 材质 | 见参数 |
| ***大载荷 | 见参数（KN） | 适用范围 | 见说明 |

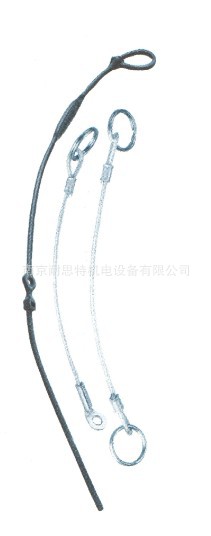

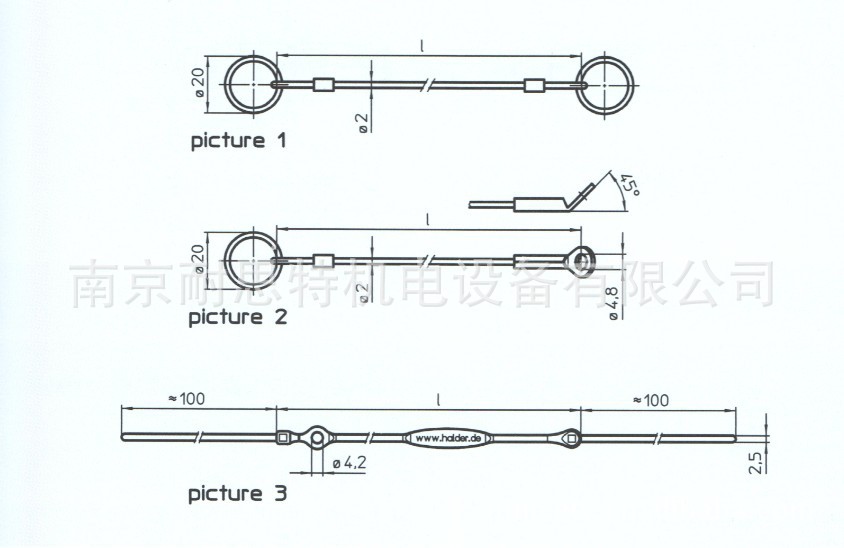

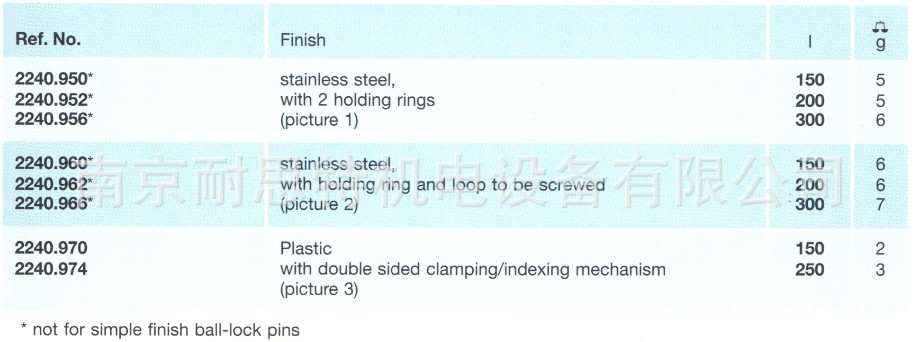

EH2240. Retaining Cables
Material:
Retaining cable : stainless steel , Ring: Stainless Attaching link band /ring: Stainless steel
coated with clear PVC steel
Plastic(PA 6),grey
Noth:

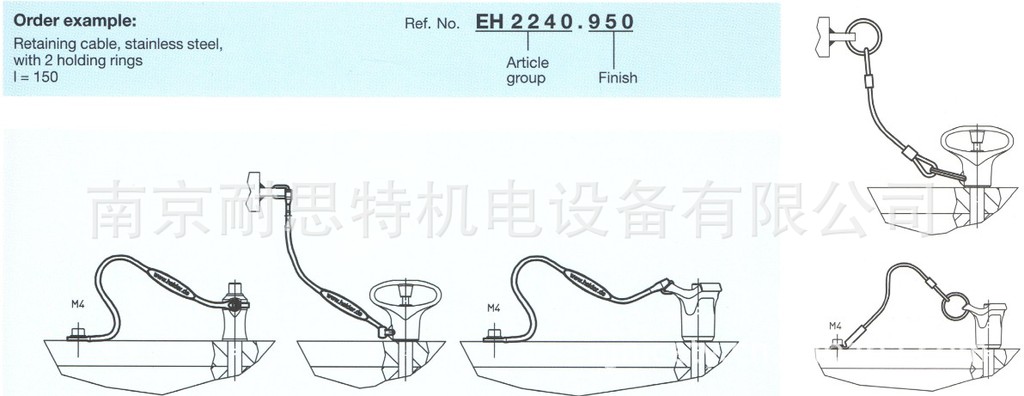

These retaining cables secure the single-acting ball lock pin EH 2237.and EH2238.,as well as clamping pin EH.2236, and socket pin EH2240 against loss.
Plastic version :cut-off projecting ends without burr after fastened.
Temperature range up to +80℃
