| 品牌 | REOMAX 17AMH | 型号 | 17AMH |
| 种类 | 过热保护器 | 用途 | 电子 |
| 体积 | 微型 | 电压特性 | 安全电压 |
| 形状 | 平板式 | 熔断速度 | F/快速 |
| 执行标准 | 美标 | 自动复位功能 | 有 |
| 最大电压 | 125-250(V) | 最大电流 | 5-15(A) |
| 保持电流 | 5-15(A) | 动作温度 | 55-185(℃) |
| 温控范围 | 55-180(℃) |

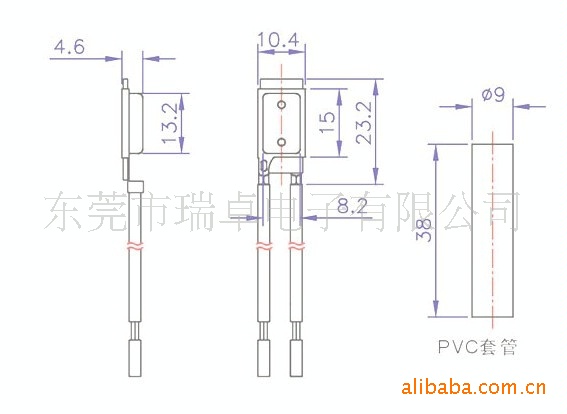

17AMH
功能/ Function:
是一种过温、过流保护器,温度达到设定规格自动切断电路。
This thermostat will cut off the circuit automatically when Overload and Overheat protector.
优点/ Advantage:
体积小,断开动作快。Small size & short respond time.
认证/ Approval:
UL/cUL Approval:E250586 RoHS Test Report
说明/ Elucidation:
可根据客户的需要铆合各种不同规格不同长度的电线。
The wire can be selected based on customers requirement.
我们可以提供Mylar套管,防护温度开关与马达线圈或金属物接触而造成短路。
Mylar tube also can be used for circuit-shorting protection.
