ELEFP SINGLE-PHASE CYLINDRICAL CAPACITOR西班牙LIFASA电

产品编号：4446782 更新时间：2020-08-17

价格：

来电议定

上海山合海融商贸有限公司

主营业务：接地线，验电器，KUDOS，salisbury，LIFASA
公司官网：www.51082245.com
公司地址：

联系人名片：

联系时务必告知是在"产品网"看到的

产品详情

Self-healing capacitor elements with low losses metalli-

zed polypropylene dielectric. Capacitors mounted in cylin-

drical aluminium cans with M12 stud for fixing and earthing.

Connection is made through fast-on 6.3 x 0.8 mm terminals.

The aluminium can is equipped with an overpressure disconnection

device that acts in case of overloads.

c aracterísticas técnicas /t eChniCal CharaCteristiCs

• Tensión nominal/Rated voltages...........................230 ... 525 V

• Frecuencia/Frequency ............................................50/60 Hz

• Dieléctrico/Dielectric ..............................................Prolipropileno/Polypropylene

• Nivel aislamiento/Isolation level ..........................3/- kV rms

• Pérdidas dieléctricas/Dielectric losses ................< 0.2 W/kvar

• Sobretensión máx./ Max. overvoltage ..............1.1 Un

• Sobreintensidad máx./ Max. overcurrent ..........1.3 In

• Tolerancia potencia/ Power tolerance ................-5/+10%

• Gama climática/ Temperature range .................-40/+55°C

• Terminales conexión/Terminals .............................6,3 x 0,8 mm

• Par máx./Max. torque ...........................................M12: 12Nm

• Normas/Standards .................................................IEC 60831, EN 60831

Otras potencias, tensiones y frecuencias bajo pedido/Other power, voltages and frequencies on request.

Referencia

Code

Capacidad

Capacity

(µF)

50 Hz 60 Hz

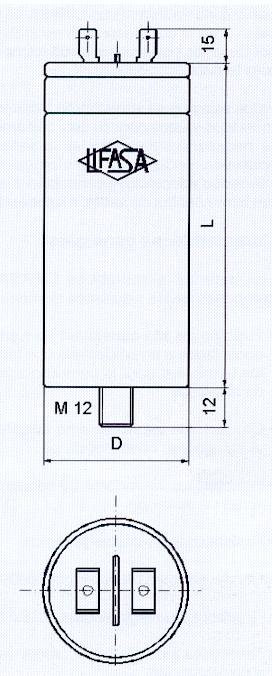

Dimensiones

Dimensions

D x L

Peso

Weight

(kg)

230V 400V 440V 480V 525V 230V 400V 440V 480V 525V

Qn (kvar) Qn (kvar)

ELEFP23016AE 100 1.66 2.00 60 X 148 0.5

ELEFP23025AE 150 2.50 3.00 60 X 148 0.55

ELEFP23027AE 165 2.75 3.30 60 X 148 0.56

ELEFP40016AE 33 0.55 1.66 2.00 0.66 2.00 2.41 40 X 148 0.2

ELEFP40025AE 50 0.83 2.50 3.05 1.00 3.00 3.65 45 X 148 0.3

ELEFP40033AE 66 1.10 3.32 4.00 1.32 4.00 4.82 50 X 148 0.4

ELEFP40041AE 83 1.38 4.17 5.00 1.66 5.00 6.06 60 X 148 0.5

ELEFP44033AE 57 0.95 2.87 3.47 1.14 3.44 4.16 50 X 148 0.3

ELEFP52033AE 38,1 0.63 1.92 2.32 2.76 3.30 0.76 2.30 2.78 3.30 4.00 50 X 148 0.3

Single Phase Power Capacitor Elements Elefp Series

Description

Self-healing capacitor elements with low losses metallized polypropylene dielectric. Capacitors mounted in cylindrical aluminium cans with M12 stud for fixing and earthing. Connection is made through fast-on 6.3 × 0.8mm terminals.

This series of power capacitors have been designed to meet the VDE standards requirements. The aluminum can is equipped with an overpressure disconnection device that acts in case of overload.

Technical Characteristics

Frequency	50 Hz
Dielectric	Polypropylene
Dielectric losses	＜ 0.2 W/kvar
Total losses	＜ 0.4W/kvar
Max. overvoltage	1.1U N
Max. overcurrent	1.3 I N
Power tolerance	-5/+10%
Temperature range	-40/+ 50 ℃
Connection terminals	6.3 × 0.8mm terminals
Installation	Indoor
Maximum torque	5 N.m
Standards for capacitors	IEC 831, VDE 560, En 60831

*Other voltages and frequencies on request

Code	Q_N(kvar)	U_N(V)	C_N(μ F)	I_N(A)	Dimensions		Weight(kg)
Code	Q_N(kvar)	U_N(V)	C_N(μ F)	I_N(A)	D(mm)	L(mm)	Weight(kg)
ELEFP 23008A	0.83	230	50	3.6	60	110	0.38
ELEFP 23012A	1.25	230	75	5.4	60	110	0.38
ELEFP 23016A	1.66	230	100	7.2	60	135	0.39
ELEFP 23025A	2.50	230	150	10.8	60	135	0.48
ELEFP 23027A	2.76	230	166	12.0	60	135	0.49
ELEFP 40016A	1.66	400	33	4.2	60	110	0.37
ELEFP 40025A	2.50	400	50	6.3	60	110	0.38
ELEFP 40027A	2.76	400	55	6.9	60	110	0.50
ELEFP 40033A	3.33	400	66	8.3	60	135	0.50
ELEFP 40041A	4.17	400	83	10.4	60	135	0.49
ELEFP 44016A	1.66	440	27	3.8	60	110	0.36
ELEFP 44025A	2.50	440	41	5.7	60	110	0.37
ELEFP 44027A	2.76	440	45	6.3	60	135	0.51
ELEFP 44033A	3.33	440	55	7.6	60	135	0.50
ELEFP 52016A	1.66	525	19	3.2	60	110	0.37
ELEFP 52025A	2.50	525	29	4.8	60	110	0.51
ELEFP 52027A	2.76	525	32	5.3	60	135	0.51
ELEFP 52033A	3.33	525	38	6.3	60	135	0.50
