CAT6六类多股非屏蔽线缆
产品名称及型号 Name & type, description
|
产品名称 Product Name |
型号及形式 Type and description |
|
Gigabit tran***ission shielded cable Cat. 6 |
4P NSGDT6- PC (□□) |
|
六类屏蔽网线 |
① ② ③ |
①对数 pairs ②线种名称 model name③外皮颜色 colors of outer jacket
适用规格Applicable specificati***
ANSI/TIA-568-C.2 100Ω平衡双绞线网络线 六类非屏蔽网络线
ANSI/TIA-568-C.2 & 100Ω Twisted pair cable, Category 6
JIS X 5150:2004、ISO/IEC 11801:2002、YD/T 1019、JIS C 3005 60度倾斜燃烧测试
60 ℃ inclined combustion test
使用材料： 符合RoHS 指令要求
Materials compile with RoHS requirement

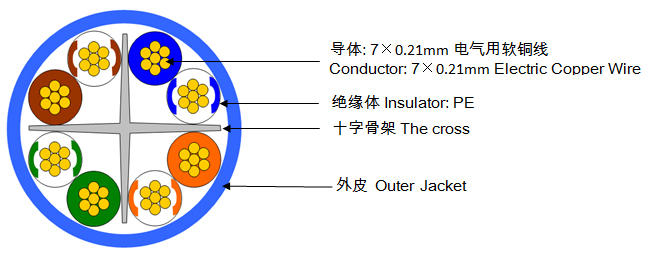

构造
|
项目 Items |
单位 Unit |
详述规格 Description |
||||
|
导体 Conductor |
材质 Materials |
- |
电气用软铜线 Electric Copper wire |
|||
|
线径 Diameter |
- |
7×0.21mm (equivalent to 24AWG) |
||||
|
绝缘体 Insulation |
材质 Materials |
- |
聚乙烯 (Polyethylene, PE) |
|||
|
颜色 Colors |
- |
1 |
2 |
3 |
4 |
|
|
白/蓝 |
白/橙 |
白/绿 |
白/啡 |
|||
|
White/ Blue |
White/ Orange |
White/ Green |
White/ Brown |
|||
|
蓝 |
橙 |
绿 |
啡 |
|||
|
Blue |
Orange |
Green |
Brown |
|||
|
外径（约） Overall diameter (approx.) |
毫米mm |
0.9 |
||||
|
十字骨架 The cross |
材质 Material |
毫米mm |
0.4 / 4.5 |
|||
|
外皮 Outer Jacket |
材质 Material |
- |
软质 PVC |
|||
|
颜色 Color |
- |

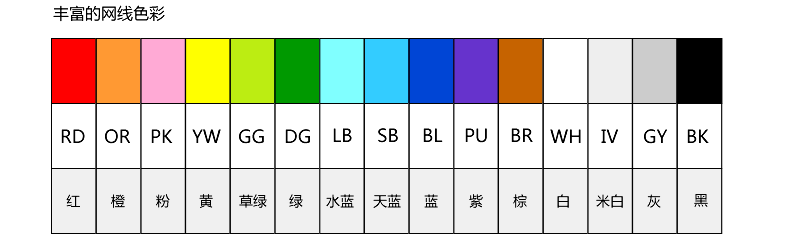

15 colors |
||||
|
标准厚度 |
毫米mm |
0.6 |
||||
|
标准成品外径 Overall completed diameter |
毫米mm |
6.6 |
||||
|
平均重量 Approximate weight |
kg/km |
45 |
||||
|
标签 Marker |
- |
4P NSGDT6 CAT6 NIPPON SEISEN PVC LOT No. xx |
||||
机械特性 Mechanical characteristic
|
项目 Characteristic |
单位 Unit |
产品规格 Specification |
|
容许拉力 Allowable tension |
牛顿 N |
110 以下 |
|
容许屈曲半径 Allowable bending radius |
- |
作业中：线缆外直径的8倍以上 In progress: More than 8 times of the cable diameter |
|
作业后：线缆外直径的4倍以上 Post operation:More than 4 times of the cable diameter |
环境特性 Environmental natures
|
项目 Nature |
单位 Unit |
产品规格 Specification |
|
适用温度范围 Appropriate Temperature |
攝氏度 ℃ |
施工作业中：0~50 In progress： 0~50 |
|
运行/运作中：-40~75 In operation：-40~75 |
电气特性 Electrical characteristic
|
项目 Characteristic |
单位 Unit |
产品规格 Specification |
|
导体电阻(直流) Conductor resistance(DC) |
Ω/100m |
9.38 以下(Max) |
|
电阻不平衡率(直流) Resistor unbalance(DC) |
% |
5 以下 (Max) |
|
工作电容 Capacitance |
nF/100m |
5.6 以下 (Max, 1kHz) |
|
电容失衡对接地 Capacitance unbalance |
pF/100m |
330 以下 (Max, 1kHz) |
|
额定传导速度NVP |
% |
68.5 |
[20℃&plu***n;3℃]
|
频率 MHz |
近端串音衰減 NEXT [dB] |
功率和近端串音 PS-NEXT[dB] |
衰減远端串音比 ACRF[dB] |
衰減远端串音比功率和 PS-ACRF[dB] |
衰減 IL [dB/100m] |
回波损耗 RL[dB] |
相时延 [ns/100m] |
时延差 [ns/100m] |
|
Frequency |
Near-end cross-talk loss |
Power sum near-end crosstalk |
Attenuation to Crosstalk Ratio at the Far-end |
Power Sum Attenuation to Crosstalk Ratio at the Far-end |
Insertion Loss |
Return Loss |
Delay |
Delay- -skew |
|
MHz |
Min |
Min |
Min |
Min |
Max |
Min |
Max |
Max |
|
1 |
74.3 |
72.3 |
68.0 |
65.0 |
1.8 |
20.0 |
570 |
45 |
|
10 |
59.3 |
57.3 |
48.0 |
45.0 |
5.9 |
25.0 |
545 |
45 |
|
20 |
54.8 |
52.8 |
42.0 |
39.0 |
8.4 |
25.0 |
542 |
45 |
|
31.25 |
51.9 |
49.9 |
38.1 |
35.1 |
10.6 |
23.6 |
540 |
45 |
|
62.5 |
47.4 |
45.4 |
32.1 |
29.1 |
15.3 |
21.5 |
540 |
45 |
|
100 |
44.3 |
42.3 |
28.0 |
25.0 |
19.8 |
20.1 |
538 |
45 |
|
250 |
38.3 |
36.3 |
20.0 |
17.0 |
32.8 |
17.3 |
536 |
45 |
包裝 Packing
|
单位 Unit |
规格标准 |
|
|
包装长度 Length |
m |
300 |
|
包装形态 Packaging |
- |
卷绕/箱 Free coil winding |
