| 耐火温度：1580～1770℃（℃） | 产地：东营 | 品牌：祥雨 |
| 产品类别：硅酸铝制品 | 材质：硅酸铝 | 导热系数（常温）：0.056 |
| 等级：1 | 低温弯折≤：强 | 抗弯强度：强 |
| 抗压强度：强 | 使用温度：950-1350 | 撕裂强度：强 |
| 芯材：陶瓷纤维 | 形态：纤维状 | 形状：长方形 |
| 规格：300*300*300/200（mm） |

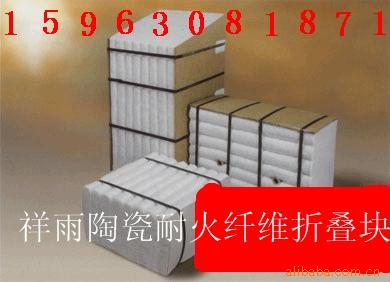

陶瓷纤维整体模块是将整体化的大型纤维毯块,切割成整齐的小块，中间穿插蝶形锚固件，组成一个整体组件。整个模块在6个方向均可压缩、膨胀，而且无须常规折叠模块的打包带约束；是一种组装快速、简易，安装后使用效果良好的衬里隔热产品。
产品名称：陶瓷纤维整体模块
（2）产品指标
项目 | 1260型 | 1430型 | |
分类温度 | 1260℃ | 1430℃ | |
长期使用温度 | 1100℃ | 1350℃ | |
密度(Kg/m3) | 200 | 200 | |
加热***性变化 | ≤-3%（1100℃*24h） | ≤-3%（1350℃*24h） | |
尺寸允许偏差 | 切割方向305（mm） | 10--15 | |
挤压方向305（mm） | 10--15 | ||
保温方向230/320（mm） | 0---5 | ||
渣球含量（Ф≥0.212mm） | ≤12% | ||
导热系数（平均温度500℃） | ≤0.12W/m.k | ||
锚固件、导向管 安放位置偏差（mm） | ＜5 | ||
产品包装 | 产品单件塑料套袋包装，然后用纸箱包装。 | ||

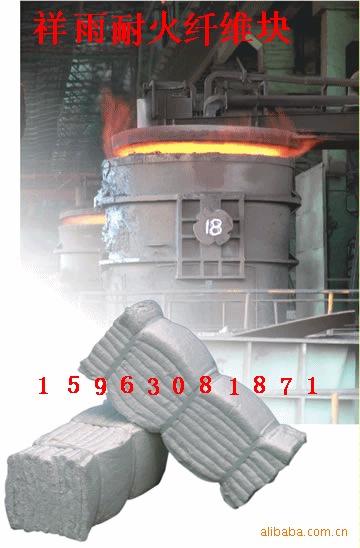

陶瓷纤维整体模块具有六面可膨胀、可压缩、柔韧性好、易切割和易施工等性能特点，该产品适用于形状规整的热工平面，又适用于形状复杂，烟气流速快的各种加热设备。具体应用市场如下：
（1）陶瓷行业：取代耐火砖、浇注料及其它保温材料，用于各种低、中温陶瓷窑炉的炉墙、炉顶衬里。
（2）石化行业：用于各种石化行业加热炉，如重整炉、加氢炉、制氢炉、延迟焦化炉、芳烃加热炉、乙烯裂解炉等衬里材料。
（3）冶金行业：用于各种加热炉及热处理炉，如罩式炉、台车炉等炉衬热面材料，可取代耐火砖或耐火浇注料。
（4）有色金属行业：取代硅藻土保温砖、硅钙板，用于各窑炉热面或背衬材料。
Ceramic fiber module is the whole of the whole large-scale fiber blanket block, cut into neat pieces, punctuated by pieces of butterfly anchor, forming an integral component. The direction of the entire module 6 can be compressed, expansion, and no conventional folding module packaged with c***traints; is assembled quickly and easily installed using the good effect of the lining after the insulation product.
Product Name: ceramic fiber modules as a whole
(2) Product Index
Item
1260 Model
1430 Model
Classification Temperature
1260 ℃
1430 ℃
Long-term use temperature
1100 ℃
1350 ℃
Density (Kg/m3)
200
200
Heating a permanent change in
≤ -3% (1100 ℃ * 24h)
≤ -3% (1350 ℃ * 24h)
Size allowable deviation
Cutting direction 305 (mm)
10 - 15
Extrusion direction of 305 (mm)
10 - 15
Insulation direction of 230/320 (mm)
0 --- 5
Slag content (Ф ≥ 0.212mm)
≤ 12%
Thermal conductivity coefficient (***erage temperature of 500 ℃)
≤ 0.12W/m.k
Anchors, guide tube
Placed position deviation (mm)
"5
Packaging
One-piece plastic bagged product packaging, and then carton packaging.
Ceramic fiber surface can be a whole module has six expansion, compressibility, flexibility is good, easy to cut and easy c***truction and other performance characteristics, the shape regularity of the product applied to the thermal plane, but also applied to complex shape, a variety of flue gas flow rate of fast heating equipment. Specific applicati*** market is as follows:
(1) Ceramic Industry: to replace the bricks, cast materials and other insulation materials, used in a variety of low-, medium-temperature ceramic kiln furnace walls, roof lining.
(2) the petrochemical industry: used in various petrochemical industry furnace, such as reforming furnace, hydrogen furnace, hydrogen furnace, delayed coking furnace, aromatics furnace, such as ethylene cracking furnace lining materials.
(3) the metallurgical industry: for a variety of heating furnace and heat treatment furnace, such as the hood-type furnace, such as trolley furnace lining hot face material that can be replaced by brick or castable.
(4) non-ferrous metals industry: to replace the diatomite insulation bricks, calcium silicate board, used in various furnace hot surface or backing materials.
