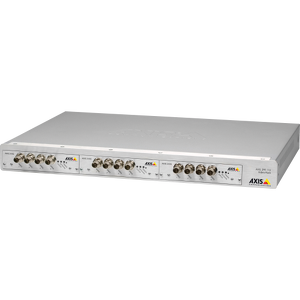

安讯士AXIS 291 1UVideo ServerRack
3槽编码器机架
1U 19” 编码器机架，***大支持3插槽，兼容所有AXIS刀片式视频编码器，具备统一内置电源，一个10/100/1000 Base-T网口。
安讯士AXIS 291 1U Video Server Rack
Full frame rate, high-density video encoder rack solution
- Quick and professional installation of various video encoders in the same rack
- Expandable system, simply by adding blades and wiring up
- Integrated power supply, for easy installation/expansion
- Higher density of video channels compared to standalone solution
-
-
Video server rack solution for blade video encoders
Together with Axis video encoder blades, AXIS 291 1U Video Server Rack can migrate analog systems to high performance, IP-based digital soluti***.
Serviceability and easy unit replacement
AXIS 291 1U Video Server Rack combines high reliability and functionality with quick, flexible and professional installation. The rack holds up to 3 interchangeable and hot-swappable blades. It is designed for improved serviceability and quick replacement of units. There is no need to power down when installing or changing blades. The rack provides serial communication and I/O connectors at the rear of each slot. It has a single network connection together with integrated power for simple installation.
Flexibility
AXIS 291 1U is designed for applicati*** that need to be able to expand, not only by adding more channels, but also by using different types of cameras. It is ideal for airports, hotels and train stati*** or other premises where analog cameras are already installed.
Supported blade video servers
The 19'' AXIS 291 1U Video Server Rack can use any combination of up to 3 interchangeable and hot-swappable Axis blade video servers. The AXIS 291 1U provides serial communication and I/O connectors at the rear of each slot, and a single network connection together with integrated power for simple installation.
| Blade | No. of channels | Video compression* | Frames per second in max. resolution | External inputs/outputs | PTZ support | Audio |
| AXIS P7224 | 4 | H.264 Motion JPEG |
Multiple streams at 30/25 in D1 per channel | 4 configurable |  |
|
| AXIS Q7406 | 6 | H.264 Motion JPEG |
Multiple streams at 30/25 in D1 per channel | 8 configurable | |
|
| AXIS Q7414 | 4 | H.264 Motion JPEG |
Multiple streams at 30/25 in D1 per channel | 8 configurable | |
|
| AXIS Q7436 | 6 | H.264 Motion JPEG |
60/50 fps support | 6 configurable | |
|
| AXIS 243Q | 4 | MPEG-4 Motion JPEG |
30/25 in 4CIF per channel | 4/4 | |
|
| AXIS 241Q | 4 | MPEG-4 Motion JPEG |
21/17 in 4CIF using 1 channel, 20/17 in CIF per channel using 4 channels 30/25 in 4CIF using 1 channel, 30/25 in CIF per channel using 4 channels |
4/4 | |
* H.264 is also called MPEG-4 Parte 10/***C. In the table, MPEG-4 refers to MPEG-4 Parte 2.
Frame rate = NTSC/PAL
