产品特点 | Feature
n S-Type load cell
n Senior aluminum
n Easy to install, stabile & reliable
l Suitable for tension measurements, batching systems, industrial scales and package systems, etc
l S型传感器
l 优质铝合金材质
l 安装简便、快捷，稳定可靠
l 使用与材料试验机、配料秤、机电结合称和包装秤等
量程 | Capacities
10kg , 20kg, 30kg, 100kg, 200kg, 300kg, 500kg,5000kg
技术参数 | Specification
|
Rated Output |
额定输出 |
2.0mv/v&plu***n;1% |
|
Zero Balance |
零点平衡 |
&plu***n;1% of rated output |
|
Creep After 30 Minutes |
蠕变 |
&plu***n;0.03% of rated output |
|
Nonlinearity |
非线性 |
&plu***n;0.03% of rated output |
|
Hysteresis |
滞后 |
&plu***n;0.03% of rated output |
|
Repeatability |
重复性 |
&plu***n;0.03% of rated output |
|
Temp. effect on output |
灵敏度温漂 |
≤0.002% of applied output/℃ |
|
Temp. Effect on zero |
零点温漂 |
≤0.002% of rated output/℃ |
|
Safe temp. Range |
可用温度范围 |
-10℃ to+70℃ |
|
pensated |
温度补偿范围 |
-10℃ to+40℃ |
|
Safe Overload |
安全载荷 |
150% |
|
Input Impedance |
输入阻抗 |
387 Ω&plu***n;20Ω |
|
Output Impedance |
输出阻抗 |
350 Ω&plu***n;5Ω |
|
Insulation Resistance |
绝缘阻抗 |
≥5000MΩ(50V DC) |
|
Rated Excitation |
推荐激励电压 |
10V DC/AC |
|
Cable Color Code |
导线颜色 |
Red(+E)Black(-E)Green(+S)White(-S) |
|

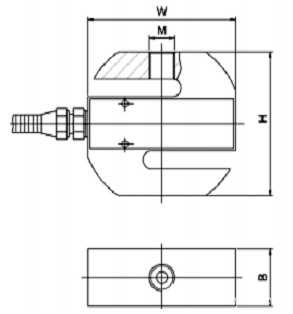

量程（kg） |
M |
W |
H |
B |
|
5~500 |
M12 |
70 |
64 |
20 |
|
1000 |
M12 |
70 |
64 |
25 |
|
2000~5000 |
M20 |
90 |
90 |
32 |
