螺杆空压机的***小压力阀，克服了以往***小压力阀只能通过调节弹簧力来控制开启压力的技术偏见，巧妙通过调整调压阀来***控制***小压力阀的开启压力，使***小压力阀的开启压力可以在宽广的范围内根据压缩机的要求方便地调节，阀达到完全开启状态时所需的压力与阀开启压力的差值很小，从而更加节能
MPV系列***小压力阀：该产品既继承了国外***小压力阀的技术特点，又融入了我公司成熟的密封技术，具有开启压力稳定、止回可靠、压力损失小等优点。
欢迎各界同仁来人来电咨询、洽谈!详细资料至公司索取。我们将以***的产品，超低的价格，优质的服务与您密切合作，共谋发展！
企业***：国内***：400-6969-728 技术咨询：021-51602627 51602681
【进口压缩机国际亚洲配送中心】【中国空压机备品备件营销中心】
技术参数

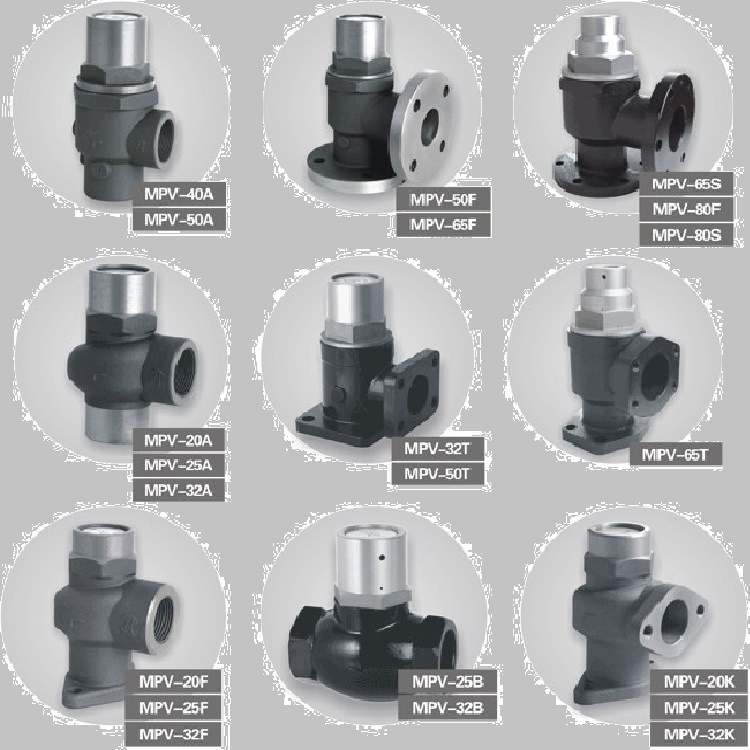

| 型号 | 通径(mm) | 开启压力(bar) | ***高使用压力(bar) | 连接方式 | 入口 | 出口 | 推荐***大使用排量(m3/min) |
| MPV-20A | 20 | 4-5 | 16 | 螺纹 | G3/4 | G3/4 | 2.5 |
| MPV-20F | 20 | 法兰 | 2-Φ10.5-TKΦ67 | G3/4 | 2.5 | ||
| MPV-20K | 20 | 法兰 | 2-Φ10.5-TKΦ67 | 2-M10-TKΦ60 | 2.5 | ||
| MPV-25A | 25 | 螺纹 | G1 | G1 | 4.3 | ||
| MPV-25F | 25 | 法兰 | 2-Φ10.5-TKΦ67 | G1 | 4.3 | ||
| MPV-25K | 25 | 法兰 | 2-Φ10.5-TKΦ67 | 2-M10-TKΦ60 | 4.3 | ||
| MPV-25B | 25 | 螺纹 | G1 | G1 | 4.3 | ||
| MPV-32A | 32 | 螺纹 | G11/4 | G11/4 | 8 | ||
| MPV-32F | 32 | 法兰 | 2-Φ10.5-TKΦ78 | G11/4 | 8 | ||
| MPV-32K | 32 | 法兰 | 2-Φ10.5-TKΦ78 | 2-M10-TKΦ73 | 8 | ||
| MPV-32B | 32 | 螺纹 | G11/2 | G11/2 | 8 | ||
| MPV-32T | 32 | 法兰 | 4-Φ14-36×70 | 4-M12-36×70 | 8 | ||
| MPV-40A | 40 | 螺纹 | G11/2 | G11/2 | 12 | ||
| MPV-50A | 50 | 螺纹 | G2 | G2 | 20 | ||
| MPV-50F | 50 | 法兰 | 4-Φ18-TKΦ125 | 4-Φ18-TKΦ125 | 20 | ||
| MPV-50T | 50 | 法兰 | 4-Φ19-83×118 | 4-M16-60×93 | 20 | ||
| MPV-65F | 65 | 法兰 | 4-Φ18-TKΦ145 | 4-Φ18-TKΦ145 | 30 | ||
| MPV-65T | 65 | 法兰 | 4-Φ20.6-120.6×69.9 | 4-M16-106.3×61.9 | 30 | ||
| MPV-65S | 65 | 法兰 | 4-Φ18-TKΦ145 | 6-Φ18-TKΦ140 | 30 | ||
| MPV-80F | 80 | 法兰 | 8-Φ18-TKΦ160 | 8-Φ18-TKΦ160 | 40 | ||
| MPV-80S | 80 | 法兰 | 6-Φ18-TKΦ165 | 6-Φ18-TKΦ165 |
40 |
| MPV-125F | 125 3-10 | 法兰 | 8-Φ18-TKΦ210 | 8-Φ18-TKΦ210 | 70 |
The minimum pressure valve screw air compressor, the minimum pressure valve only by adjusting the spring force to control the technical prejudice opening pressure, skillfully by adjusting the opening pressure relief valve to precisely control the minimum pressure valve opening pressure, the minimum pressure valve can be in a wide range of compressor according to requirements conveniently adjusted, valve and valve pressure required to completely open the opening pressure is very ***all, thus s***ing more energy
MPV series of minimum pressure valve: This product is not only inherited the technical characteristics of foreign the minimum pressure valve, into the sealing technology company, has the advantages of stable and reliable opening pressure, check, and other ***all pressure loss.
Welcome people from all walks of life come to call to c***ult, negotiate! Details to the company for. We will be first-class products, low prices, quality service to cooperate with you, common development!
The enterprise website: domestic hotline: 400-6969-728 technical c***ultation: 021-51602627 51602681
[imported compressor International Asia distribution center] [China air compressor spare parts marketing center]
Technical parameters
Type the path (mm) opening pressure (bar) maximum working pressure (bar) connection mode of entrance and exit recommended maximum capacity (m3/min)
MPV-20A 20 4-5 16 screw G3/4 G3/4 2.5
MPV-20F 20 flange 2- Φ 10.5-TK Φ 67 G3/4 2.5
MPV-20K 20 flange 2- Φ 10.5-TK Φ 67 2-M10-TK Φ 60 2.5
MPV-25A 25 screw G1 G1 4. 3
MPV-25F 25 flange 2- Φ 10.5-TK Φ 67 G1 4. 3
MPV-25K 25 flange 2- Φ 10.5-TK Φ 67 2-M10-TK Φ 604. 3
MPV-25B 25 screw G1 G1 4. 3
MPV-32A 32 screw G11/4 G11/4 8
MPV-32F 32 flange 2- Φ 10.5-TK Φ 78 G11/4 8
MPV-32K 32 flange 2- Φ 10.5-TK Φ 78 2-M10-TK Φ 738
MPV-32B 32 screw G11/2 G11/2 8
MPV-32T 32 flange 4- Φ 14-36 × 70 4-M12-36 × 70 8
MPV-40A 40 screw G11/2 G11/2 12
MPV-50A 50 screw G2 G2 20
MPV-50F 50 flange 4- Φ 18-TK Φ 125 4- Φ 18-TK Φ 12520
MPV-50T 50 flange 4- Φ 19-83 × 118 4-M16-60 × 93 20
MPV-65F 65 flange 4- Φ 18-TK Φ 145 4- Φ 18-TK Φ 145 30
MPV-65T 65 flange 4- Φ 20.6-120.6 × 69.9 4-M16-106.3 × 61.9 30
MPV-65S 65 flange 4- Φ 18-TK Φ 145 6- Φ 18-TK Φ 140 30
MPV-80F 80 flange 8- Φ 18-TK Φ 160 8- Φ 18-TK Φ 160 40
MPV-80S 80 flange 6- Φ 18-TK Φ 165 6- Φ 18-TK Φ 165 40
MPV-125F 125 3-10 flange 8- Φ 18-TK Φ 210 8- Φ 18-TK Φ 210 70
