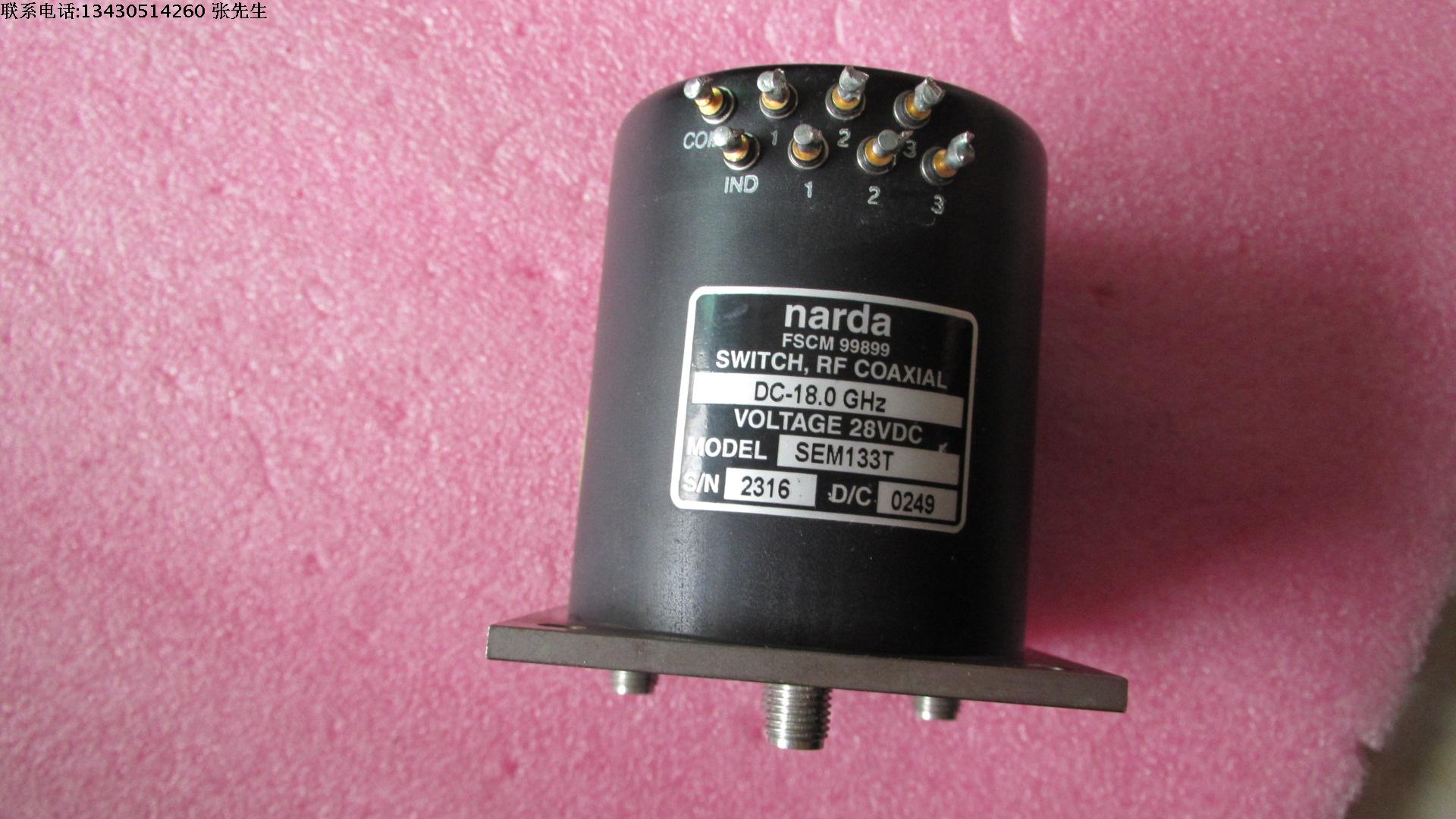

美国NARDA公司 SEM133T SP3T DC-18GHz 450W 28V ***A 射频微波继电器同轴开关
质量包好，包能用 可提供详细测试图 请放心购买
频率范围：DC-18GHz 带内匹配50欧姆负载
插损：0.4dB
隔离度：80dB
输入***大功率：450W
工作电压：28V
***资料
http:///east/p?m=Products&e=getPdf&id=5136

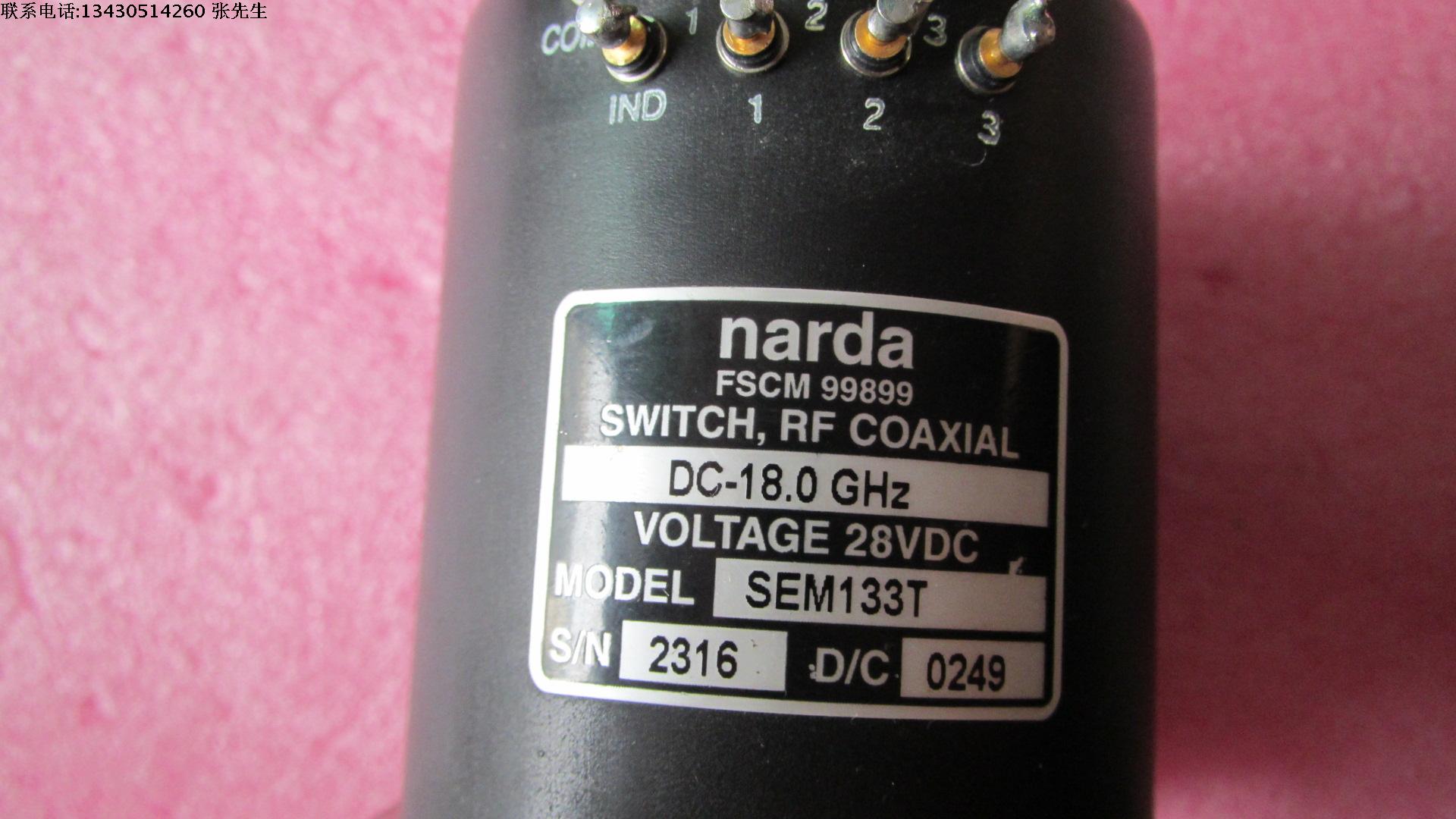

Model Number : SEM133T

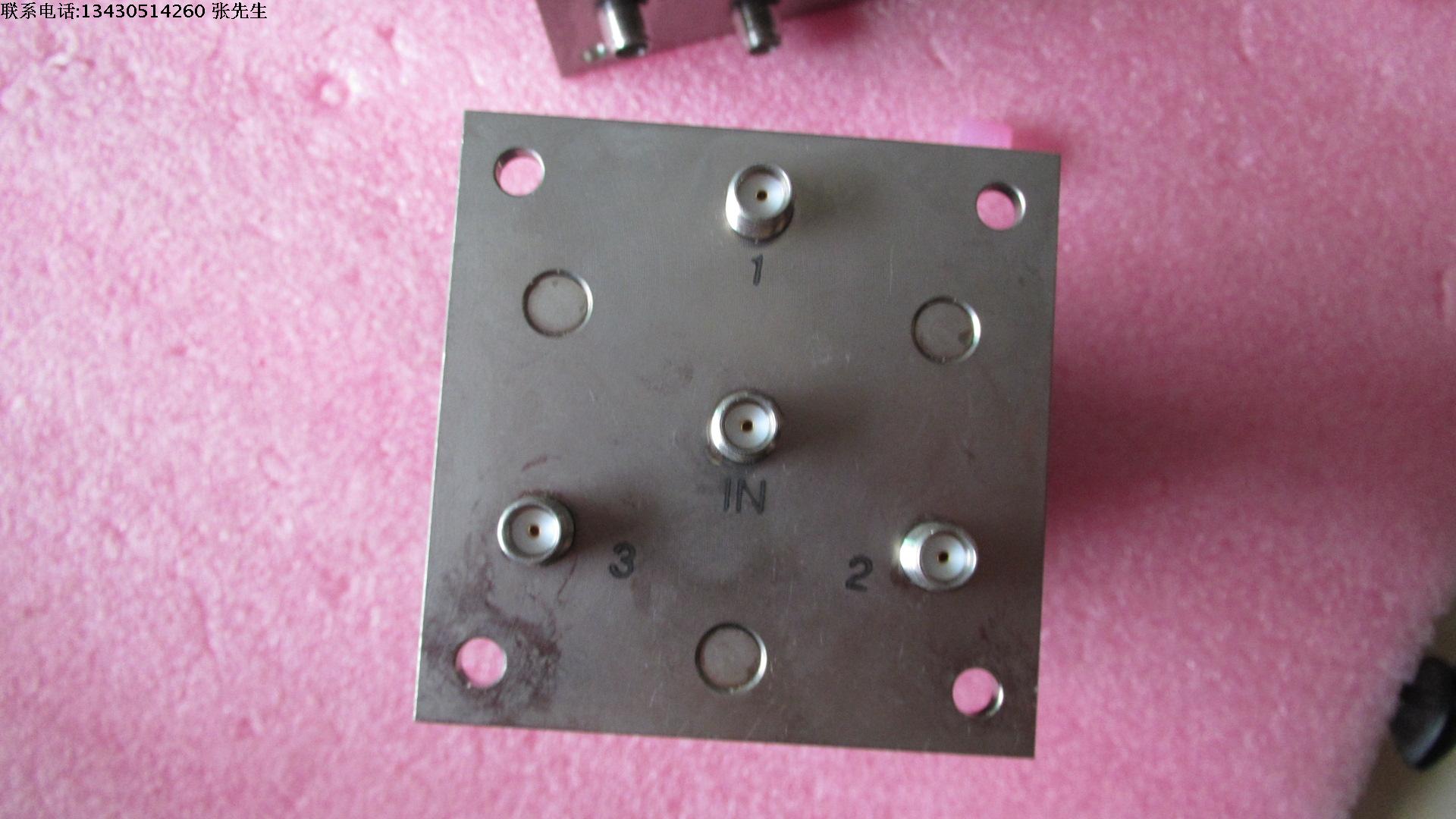

SP3T ***A (F) DC-18 GHz
Model Number |
SEM133T |
Features |
SP3T (***A), Normally Open, Terminated, Indicator Ckt |
Actuating Current |
140mA @28Vdc & 25°C |
Frequency Range (GHz) |
DC-18 |
Insertion Loss dB (max) DC-3 GHz |
0.2 |
Insertion Loss dB (max) 3-8 GHz |
0.3 |
Insertion Loss dB (max) 8-12.4 GHz |
0.4 |
Insertion Loss dB (max) 12.4-18 GHz |
0.5 |
VSWR (max) DC-3 GHz |
1.2:1 |
VSWR (max) 3-8 GHz |
1.3:1 |
VSWR (max) 8-12.4 GHz |
1.4:1 |
VSWR (max) 12.4-18 GHz |
1.5:1 |
Isolation dB (min) DC-3 GHz |
80 |
Isolation dB (min) 3-8 GHz |
70 |
Isolation dB (min) 8-12.4 GHz |
60 |
Isolation dB (min) 12.4-18 GHz |
60 |
Indicator Circuitry |
Included |
Termination 50 OHMS |
Included |
Spec Sheet (download) |
View PDF |
