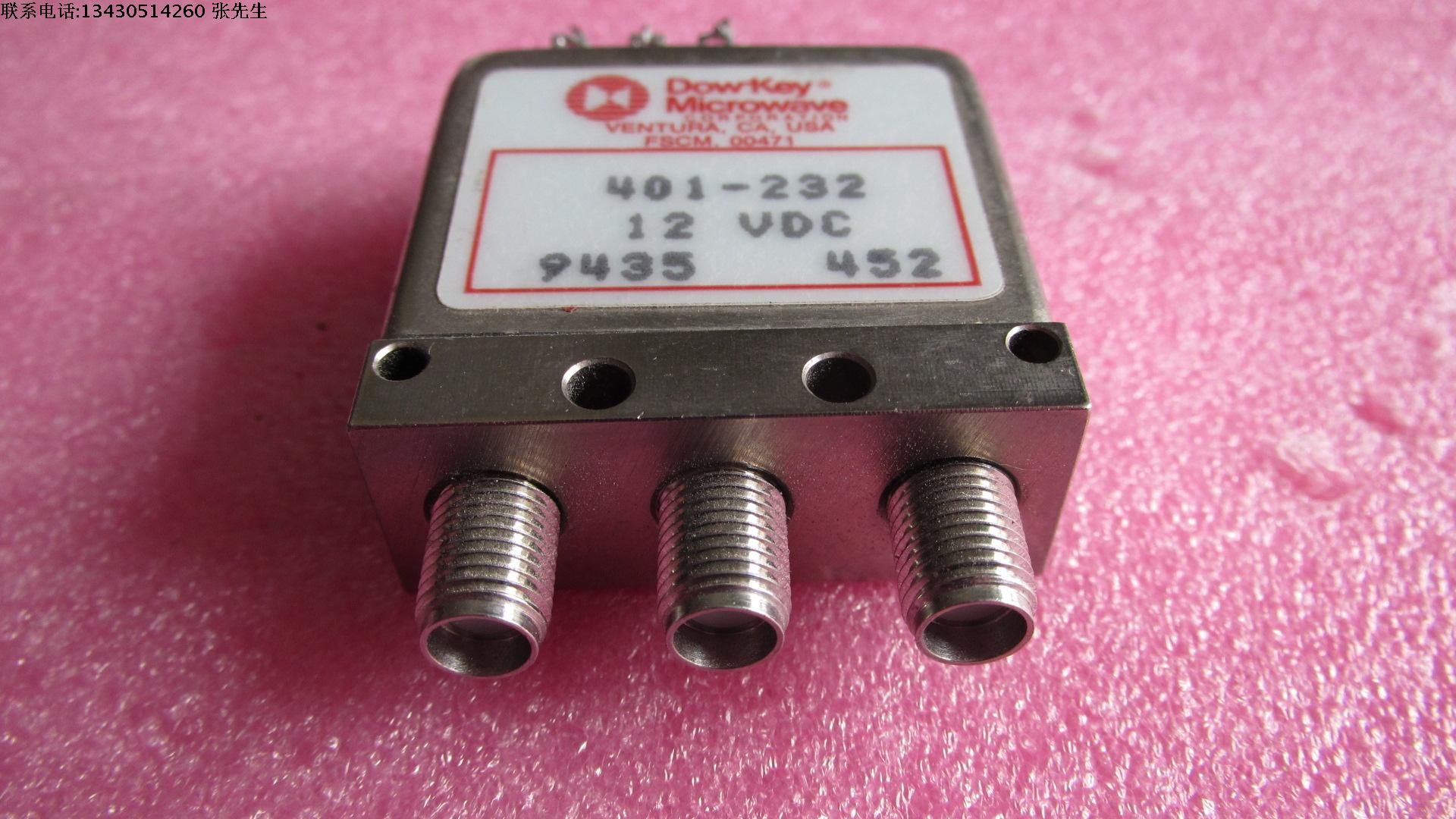

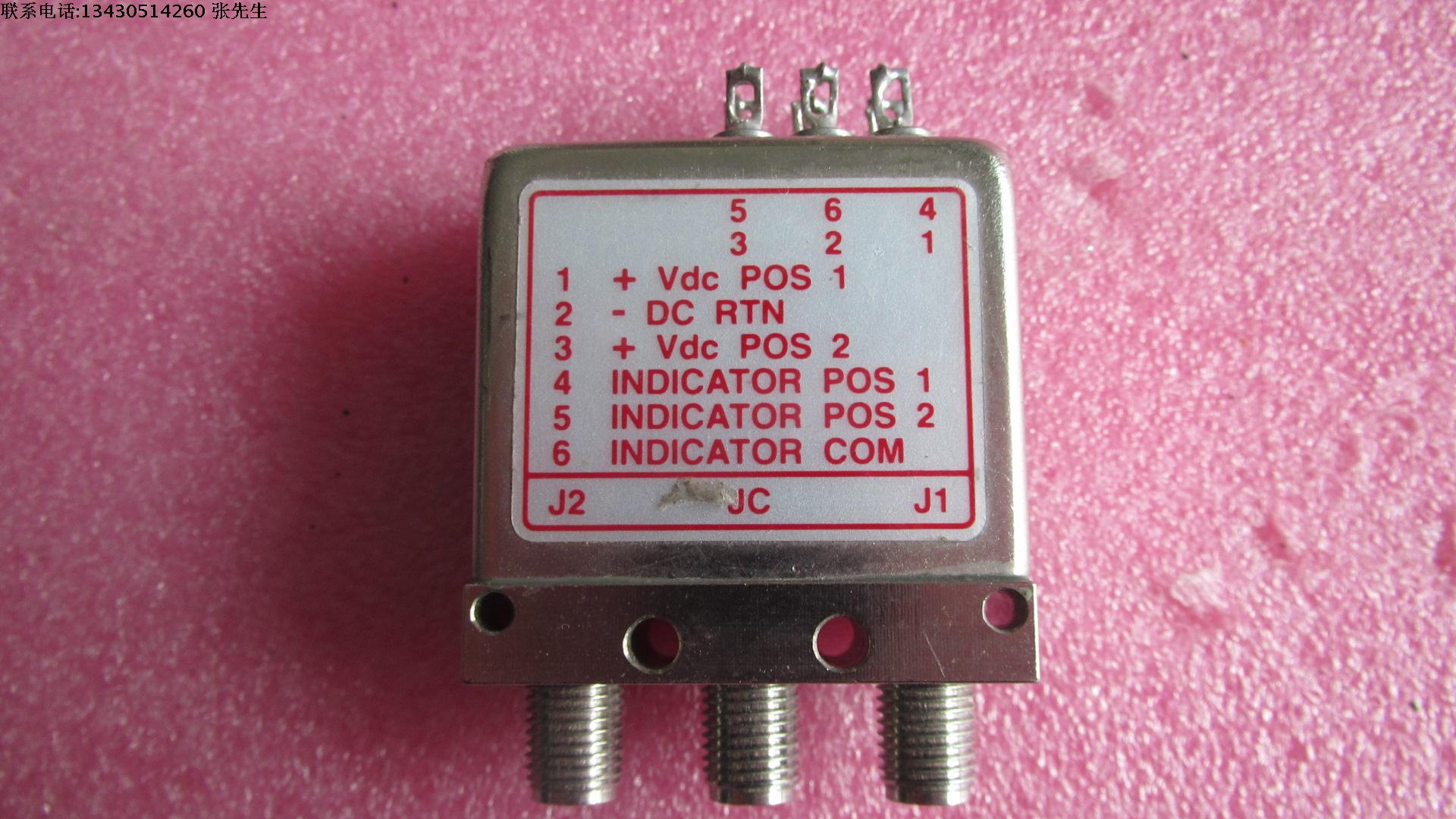

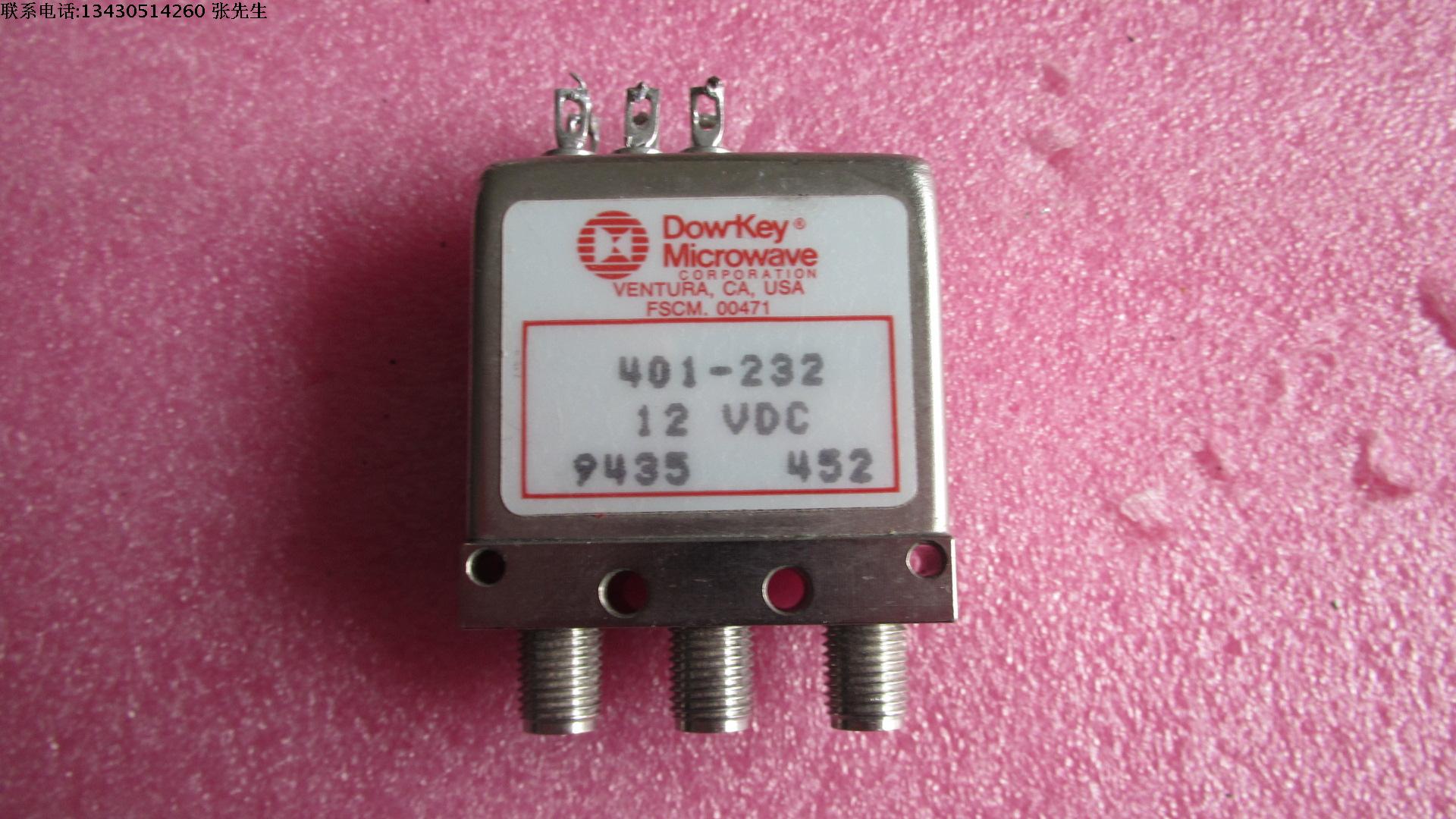

401-232 18GHz ***A头 12V 300W 单刀双掷 射频微波高功率同轴开关
频率范围：DC-18GHz
插损：0.3dB
隔离度：80dB
输入***大功率：300W
工作电压：12V 控制
|
Actual Product May Differ from Photo
|
Qty: |
| Specification | Value |
| Product Series | 401 Failsafe |
| Product Status | ***ailable |
| Switch Type | SPDT |
| Input | 1 |
| Output | 2 |
| Frequency | DC-18 GHz |
| Impedance | 50 Ohm |
| RF Contacts | Break Before Make |
| Connector | ***A |
| Termination | No |
| RF Direction | Bidirectional |
| Actuator Type | Failsafe |
| Coil Voltage | 12 Vdc |
| Indicator | No |
| Circuit Option | No |
| Switching Time | 15 ms |
| Mechanical Life (Cold-Switching) | 1,000,000 |
| Operating Temperature | -25ºC to +65ºC |
| RoHS | No |
| Lead Time (weeks) | 1 |
