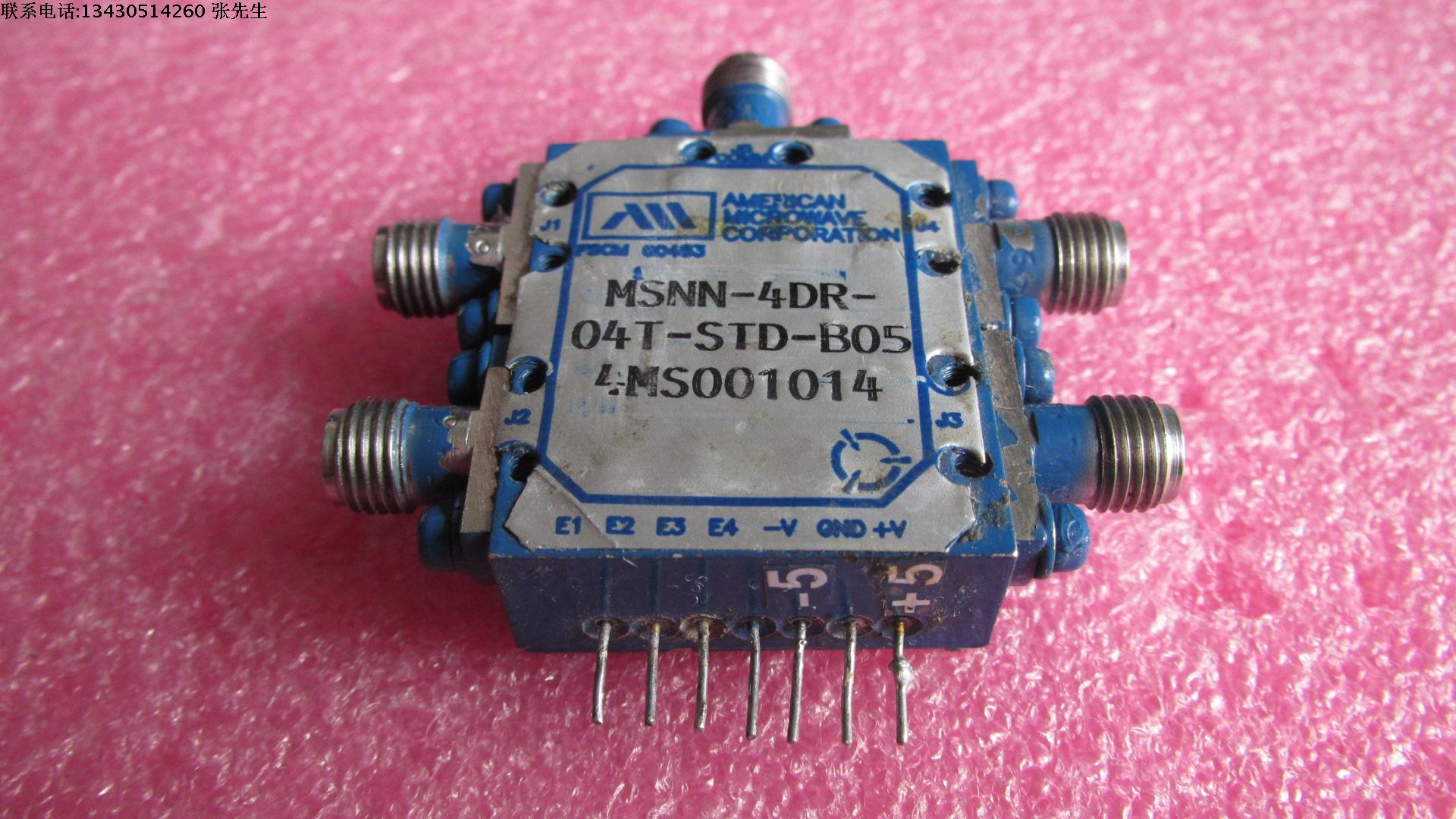

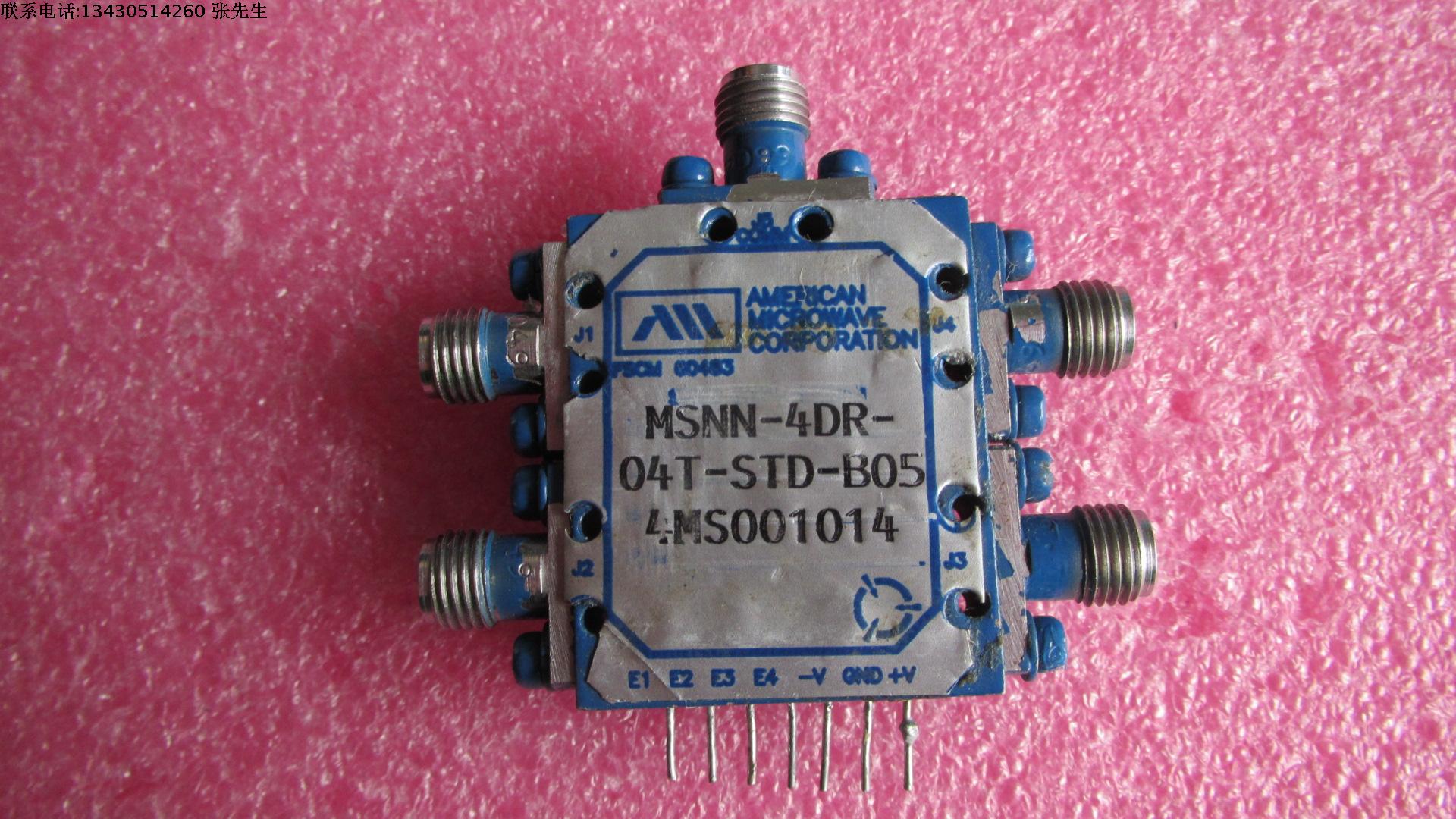

美国进口 AMC MSNN-40R-04T-STD-B05 1-18GHz SPDT 单刀双掷射频微波同轴电PIN开关 开关时间***大 20ns

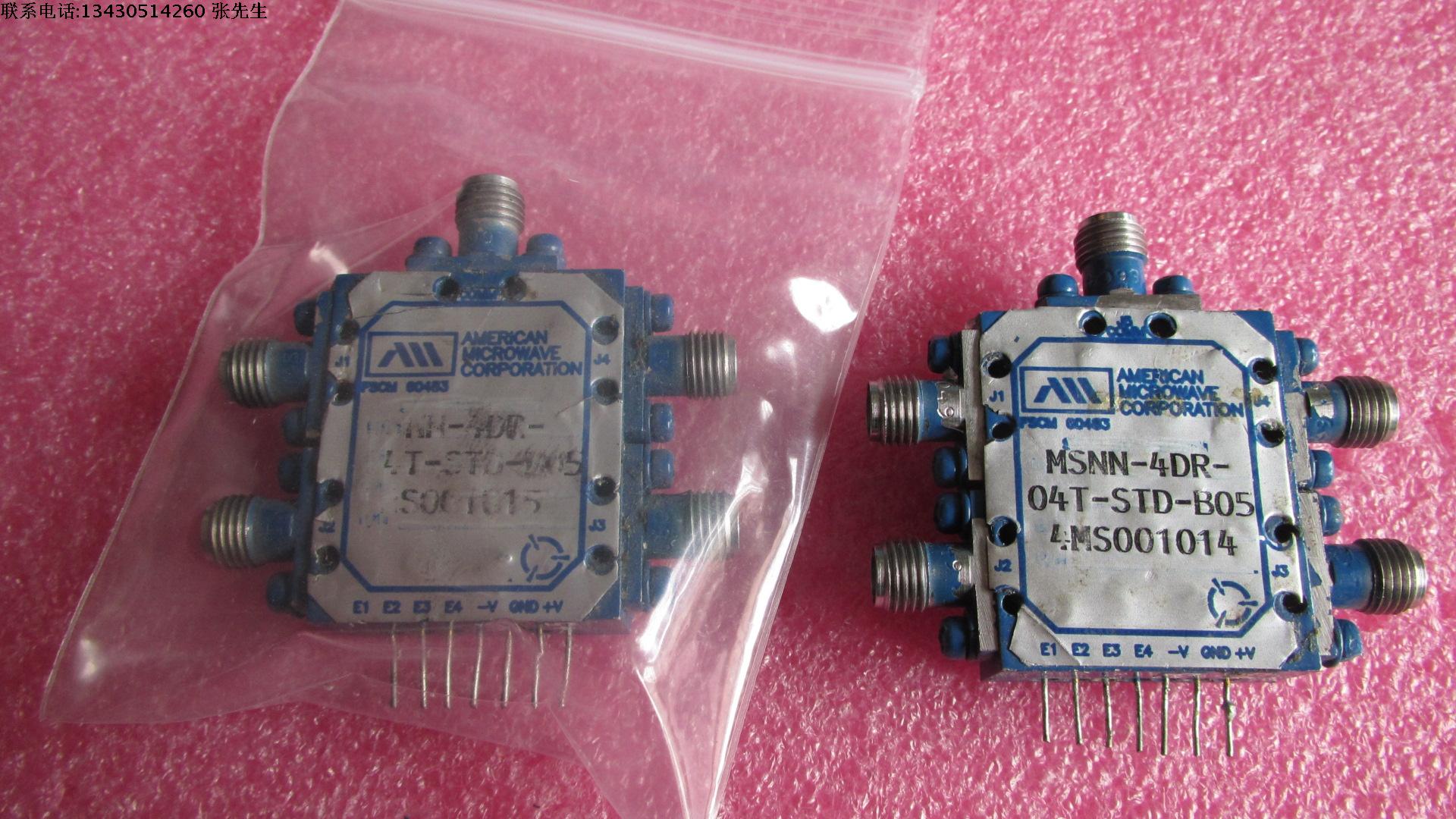

质量包好，保修半年
***资料
http:///oldsite/products/MSNN-4DR-DT-04T-DEC-SP.htm
|
SP4T Reflective or Non-Reflective/Absorptive Solid State Switch
With Decoder and Solder Pin
Specificati***:
| Frequency |
0.5 - 18 GHz |
 Insertion Loss |
Reflective: 3.0 dB
Absorptive: 3.75 dB |
| Isolation |
0.5 - 2 GHz: 60 dB
2 - 18 GHz: 70 dB |
| VSWR |
Reflective In/Out: 2.0:1
Absorptive In/Out: 2.0:1
Absorptive Out/Off: 2.0:1 |
| Speed |
Rise: 10 ns Typical, 15 ns Maximum
Fall: 10 ns Typical, 15 ns Maximum
Delay On: 75 ns Typical, 100 ns Maximum
Delay Off: 75 ns Typical, 100 ns Maximum |
| Power Input |
(CW)+20 dBm (Standard), +10 dBm (High Speed) |
| Survival Power |
1 Watt CW, 10 Watts Peak 1 usec |
| Control |
TTL Logic "0"=On, "1"=Off |
| Power Supply |
+5V @ 200 mA Maximum
- 5V @ 75 mA Maximum (Reflective)
100 mA Maximum (Absorptive/Non-Reflective) |
***ailable Opti***:
Decoder With Solder Pin Standard
| DEC-SP |
2 Bit Decoder with Solder Pin |
| 10M18 |
10 MHz to 18 GHz (Insertion Loss Increases
by 1.5 dB at 10 MHz and 0.5 dB at 18 GHz) |
| 100M18 |
100 MHz to 18 GHz (Insertion Loss Increases
by 1.5 dB at 100 MHz and 0.5 dB at 18 GHz) |
| 118 |
1 - 18 GHz (No Change in Insertion Loss) |
| 218 |
2 - 18 GHz (No Change in Insertion Loss) |
| 412 |
4 - 12.4 GHz (No Change in Insertion Loss) |
| 618 |
6 - 18 GHz (No Change in Insertion Loss) |
| 1218 |
12 - 18 GHz (No Change in Insertion Loss) |
| 100M20 |
100 MHz - 20 GHz (Insertion Loss Increases by
1.5 dB at 100 MHz and 1.0 dB at 20 GHz) |
| 220 |
2 - 20 GHz (Insertion Loss Increases by 1.0 dB at 20 GHz) |
| 1020 |
10 - 20 GHz (Insertion Loss Increases by
1.0 dB at 20 GHz) |
| B01 |
-12V Power Supplies |
| B02 |
-15V Power Supplies |
| B03 |
Reverse Logic "1" = On, "0" = Off |
| B04 |
Driverless, Current Controlled |
| B05 |
High Speed, Turnon/Turnoff 20 nS Maximum when Applicable or Option HS |
| B06 |
High Power - Specify CW Power, Peak Power, Pulse Width, Duty Cycle,
RF Frequency and Bandwidth |
| B07 |
Custom Designed Product - Specify Initials of Customer |
| B08 |
Low Video Transients - Specify Video Bandwidth |
| B09 |
Low Insertion Loss Version |
| B10 |
Higher Isolation Version |
Environmental Ratings:
| Our standard environmental ratings are as follows, for specific requirements please contact us... |
| Temperature: |
-55 ºC to +85 ºC Operating |
| -65 ºC to +125 ºC Non-Operating |
| Humidity: |
MIL-STD-202F, Method 103B Cond. B |
| Shock: |
MIL-STD-202F, Method 213B Cond. B |
| Vibration: |
MIL-STD-202F, Method 204D Cond. B |
| Altitude: |
MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: |
MIL-STD-202F, Method 107D Cond. A |
|
Outline Drawing:
Click here to see the Outline Drawing for MSNN-4DR/DT-04T-DEC-SP
Product Feature:
Click here to see the Product Feature for MSNN-4DR/DT-04T-DEC-SP
Test Report:
Click here to see the Test Report for MSNN-4DT-04T-DEC-SP
|
