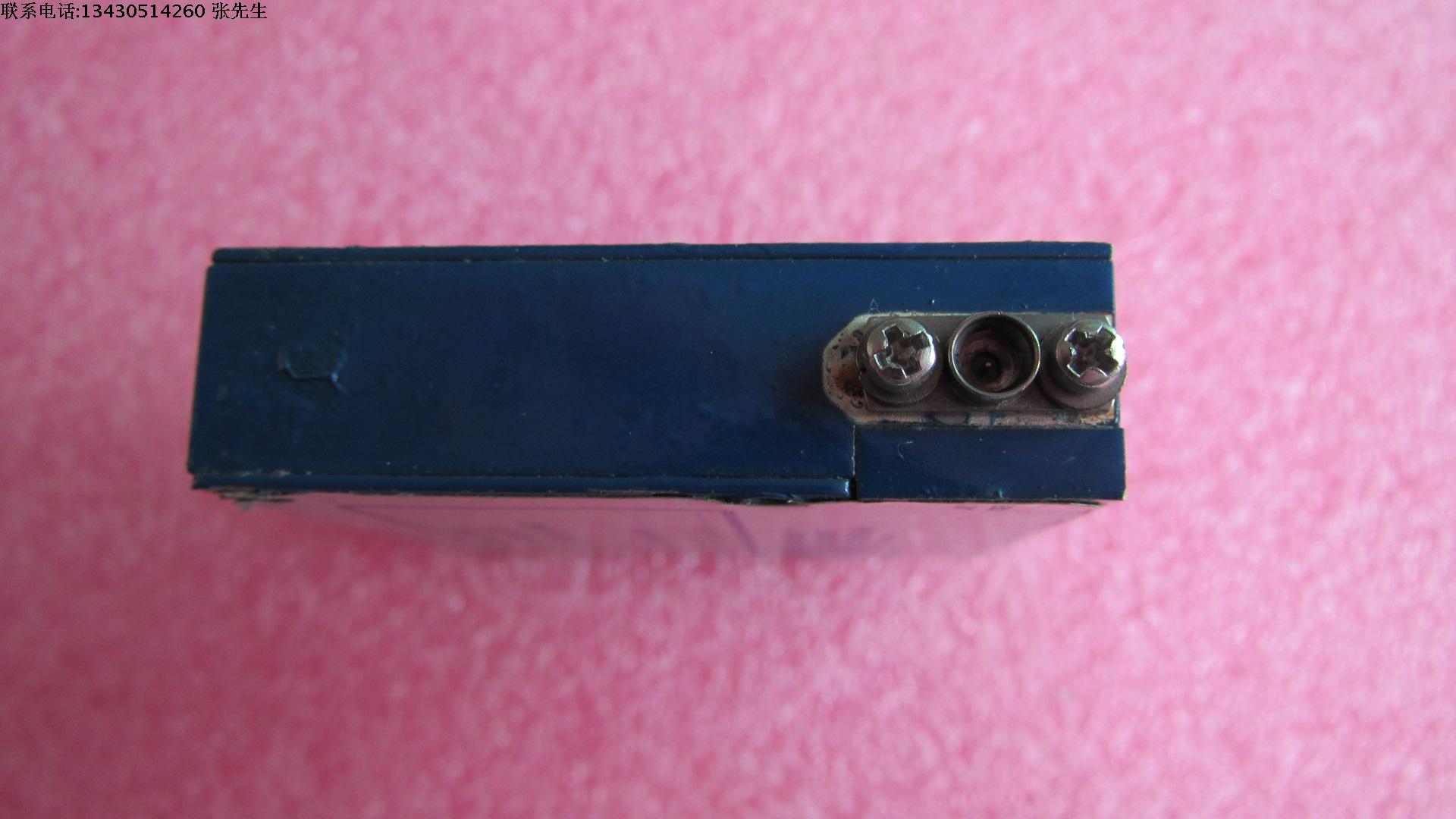

美国进口 American Microw***e Corporation AGT-2018-60DD 宽带可变衰减器 数控衰减器 8-Bit 数字衰减器
0.3-18 GHz, 60 dB, 8-Bit Digital Attenuator
品牌：American Microw***e Corporation

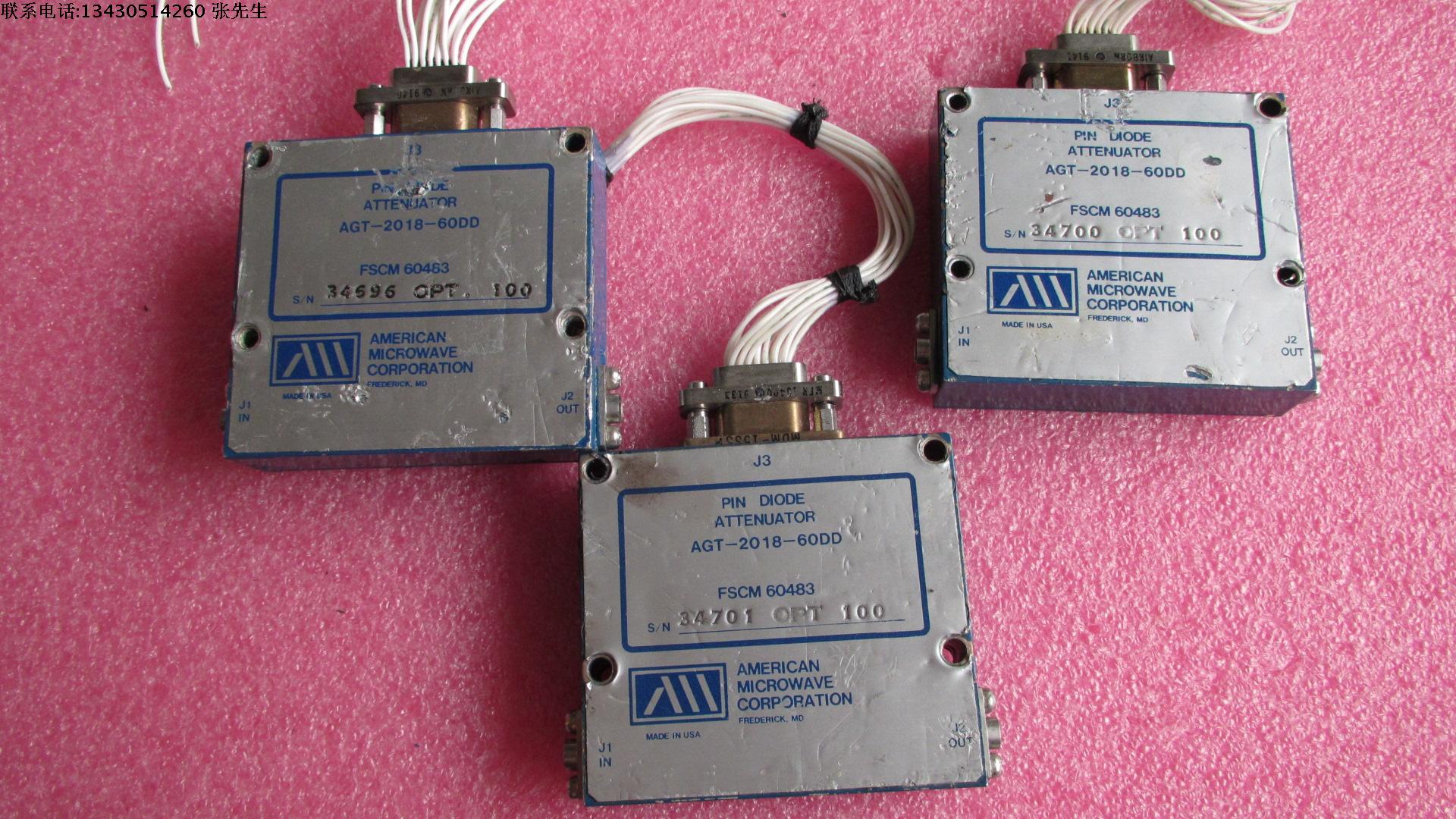

型号：AGT-2018-60DD 有3只带选件OPT 100
工作频率：2-18GHz
衰减范围：0 - 60dB/0.25dB步进
接头：***P公 可以提供转接器，转***A
***资料 使用说明书及测试数据
http:///oldsite/products/AGT-2018-m
http:///oldsite/products/testreport/atten/AGT-2018-60D_AGT-2018-60DD.pdf
http:///oldsite/products/productfeature/AGT-2018-60DD.pdf
http:///oldsite/toc/attenuators/m
|
AGT-2018-60DD
|
|
 |
AMC Model AGT-2018-60DD is a Broad Band Variable Attenuator/Modulator,
Controlled by 8 Bit Positive True Binary Logic.
Specificati***:
| Frequency Range |
2.0 - 18.0 GHz Minimum |
| Insertion Loss |
4.5 dB Maximum |
| Attenuation Range |
0 - 60 dB |
Attenuation Flatness
(&plu***n; dB Maximum) |
0 - 30 dB &plu***n;1.0 dB Maximum
30 - 40 dB &plu***n;2.0 dB Maximum
40 - 50 dB &plu***n;3.0 dB Maximum
50 - 60 dB &plu***n;5.5 dB Maximum |
 Attenuation Accuracy |
0 - 10 dB &plu***n;2.0 dB Maximum
10 - 20 dB &plu***n;1.0 dB Maximum
20 - 40 dB &plu***n;1.5 dB Maximum
40 - 60 dB &plu***n;2.0 dB Maximum |
| Rise and Fall Time |
3 Microseconds Maximum |
| Power Handling-Operating |
+20 dBm CW Maximum
+10 dBm (0.3 - 2 GHz) |
| Power Handling-Survival |
+30 dBm CW Maximum
+27 dBm (0.3 - 2 GHz) |
| Monotonicity |
Guaranteed |
| Control Characteristics |
8 Bit Positive True Binary Logic |
| Power Supply Requirements |
+12 VDC &plu***n;5% @ 250 mA Maximum, 210 mA Typical
- 12 VDC &plu***n;5% @ 50 mA Maximum, 30 mA Typical |
***ailable Opti***:
| 001 |
Two ***A Male RF Connectors |
| 002 |
J1 ***A Male, J2 ***A Female |
| 003 |
***A Female Control Connector |
| 005 |
&plu***n;15V DC Power Supply |
| 006 |
0 to 30 dB Range
Flatness: Accuracy:
0 - 15 dB: &plu***n;0.5 dB 0 - 10 dB: &plu***n;2.0 dB
15 - 20 dB: &plu***n;1.0 dB 10 - 20 dB: &plu***n;1.0 dB
20 - 25 dB: &plu***n;1.5 dB 20 - 30 dB: &plu***n;1.5 dB
25 - 30 dB: &plu***n;2.0 dB |
| 007 |
Extended Frequency Band 0.3 - 18 GHz |
| 008 |
Frequency Band of 2 - 8 GHz |
Environmental Ratings:
| Our standard environmental ratings are as follows, for specific requirements please contact us... |
| Temperature: |
-55 oC to +125 oC Operating |
| -65 oC to +125 oC Non-Operating |
| Humidity: |
MIL-STD-202F, Method 103B Cond. B |
| Shock: |
MIL-STD-202F, Method 213 Cond. B |
| Vibration: |
MIL-STD-202F, Method 204D Cond. B |
| Altitude: |
MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: |
MIL-STD-202F, Method 102 Cond. D |
|
Outline Drawing:
Click here to see the Outline Drawing for AGT-2018-60DD
Product Feature:
Click here to see the Product Feature for AGT-2018-60DD
Test Report:
Click here to see the Test Report for AGT-2018-60DD
Test Data:
Click here to see Test Data for AGT-2018-60DD Option 005, 100M18
|
|
|
