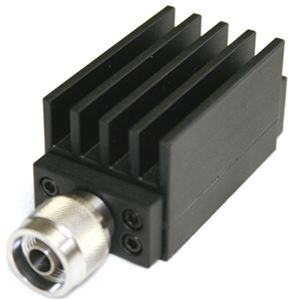

WA24B-30-11 weinschel 8.5GHz 30dB 50W ***A RF 高功率 大功率衰减器
***资料
http:///store/px
- MODEL FEATURES & SPECS
- RELATED PRODUCTS
Designed to comply with MIL-DTL-3933 environmental specificati***. Bidirectional power. Natural Convection Cooling.
Dimensi*** & Weight:Connection & Mounting:C***truction:Calibration:Opti***:Power:***erage Power Description:***erage Power:Peak Power:Power Coefficient:Directionality:Frequency Range:Attenuation Range:Attenuation Accuracy:Nominal Impedance:Temperature Range:Temperature Coefficient:VSWR:
| 0.28 kg; Length: 74.00 mm; Width: 38.10 mm; Height: 37.06 mm | ||||||||
| Type N or ***A connectors per MIL-STD-348A, interface dimensi*** mate non-destructively with MIL-PRF-39012. | ||||||||
| Black aluminum alloy body with passivated stainless steel connectors. Gold plated beryllium copper or Stainless Steel contacts. RoHs Compliant | ||||||||
| Insertion Loss and VSWR performed across frequency range. Calibration test data ***ailable at additional cost. | ||||||||
| Low Intermodulation | ||||||||
| Medium Power (20W - 100W) | ||||||||
| Maximum rated ***erage power to 25°C ambient temperature, de-rated linearly to 2.5 W at 125°C. | ||||||||
| 50 | ||||||||
| 5 kW peak (5 μsec pulse width, 0.5% duty cycle) | ||||||||
| <0.005 dB/dB/W | ||||||||
| Bidirectional | ||||||||
| dc to 8.5 | ||||||||
| 3 to 40 (50 dB ***ailable, unidirectional) | ||||||||
|
||||||||
| 50 | ||||||||
| -55°C to +125°C | ||||||||
| <0.0004 dB/dB/C | ||||||||
|
