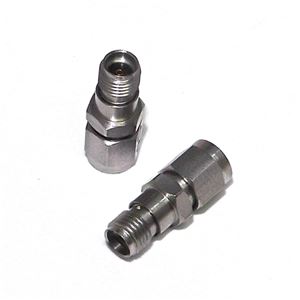

WA3H FIXED ATTENUATOR
Back to Low Power (up to 10 Watts).
Fixed Attenuator, 2.0W, 12.4 GHz, ***A.
Request a Quote
| Attenuation: * | dB* |
|---|---|
| Connector 1: * | * |
| Connector 2: * | * |
| Requests | Please describe any special requests |
|
|
Download product datasheet (PDF)
- Model Features & Specs
- Related Products
Model Features & Specs
Compact design with hex body. Designed to meet with MIL-DTL-3933 environmental specificati***.
| Dimensi*** & Weight: |
|
||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Connection & Mounting: | ***A connectors per MIL-STD-348A interface dimensi*** mate non-destructively with MIL-PRF-39012. | ||||||||||||||||||||
| C***truction: | Passivated stainless steel body and connectors. Gold Plated beryllium copper female contacts, stainless steel male contacts. RoHs Compliant | ||||||||||||||||||||
| Calibration: | Insertion Loss and VSWR performed across frequency range. Calibration test data ***ailable at additional cost. | ||||||||||||||||||||
| Power: | Low Power (up to 10W) | ||||||||||||||||||||
| ***erage Power Description: | Maximum rated ***erage power to 25°C ambient temperature, de-rated linearly to 1.25 W at 75°C and 0.5W at 125°C. | ||||||||||||||||||||
| ***erage Power: | 2 | ||||||||||||||||||||
| Peak Power: | 500 W peak (5 μsec pulse width, 0.2% duty cycle) | ||||||||||||||||||||
| Power Coefficient: | <0.005 dB/dB/W | ||||||||||||||||||||
| Directionality: | Bidirectional | ||||||||||||||||||||
| Frequency Range: | dc to 12.4 | ||||||||||||||||||||
| Attenuation Range: | 0 to 60 | ||||||||||||||||||||
| Attenuation Accuracy: |
|
||||||||||||||||||||
| Nominal Impedance: | 50 | ||||||||||||||||||||
| Temperature Range: | -55°C to +125°C | ||||||||||||||||||||
| Temperature Coefficient: | <0.0004 dB/dB/C | ||||||||||||||||||||
| VSWR: |
|
