M8MKIN-M2-U-150热电偶探头 美国omega热电偶探头
热电偶探头，带M8模塑连接器
M8M Series
新产品!

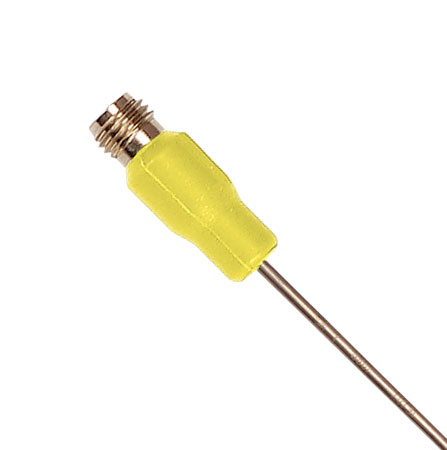

热电偶探头，带M8模塑连接器
M8M Series:热电偶探头，带M8模塑连接器
可用“J”型与304不锈钢护套或类型的“K”一个Inconel 600套
可用单元配置。
接地连接标准，可选的接地连接的传感器也可
可在1 / 8“ANSI彩色编码，和2mm和3mm IEC彩色编码探针直径
IP67成型的M8连接器与热电偶补偿引脚
也可选择超M8热电偶延伸电缆
产品型号/产品描述
Fractional Sizes
M8MJSS-18-U-6 J型热电偶,304不锈钢护套,非接地封装, 1/8" 直径， 6" 长，M8连接器模制探头.
M8MJSS-18-U-9 J型热电偶,304不锈钢护套,非接地封装, 1/8" 直径， 9" 长，M8连接器模制探头.
M8MJSS-18-U-12 J型热电偶,304不锈钢护套,非接地封装, 1/8" 直径， 12" 长，M8连接器模制探头.
M8MKIN-18-U-6 K型热电偶,INC600合金护套,非接地封装, 1/8" 直径， 6" 长，M8连接器模制探头.
M8MKIN-18-U-9 K型热电偶,INC600合金护套,非接地封装, 1/8" 直径， 9" 长，M8连接器模制探头.
M8MKIN-18-U-12 K型热电偶,INC600合金护套,非接地封装, 1/8" 直径， 12" 长，M8连接器模制探头.
Metric Sizes
M8MJSS-M2-U-150 J型热电偶,304不锈钢护套,非接地封装, 2mm 直径， 150mm 长，M8连接器模制探头.
M8MJSS-M2-U-200 J型热电偶,304不锈钢护套,非接地封装, 2mm 直径， 200mm 长，M8连接器模制探头.
M8MJSS-M2-U-250 J型热电偶,304不锈钢护套,非接地封装, 2mm 直径， 250mm 长，M8连接器模制探头.
M8MJSS-M3-U-150 J型热电偶,304不锈钢护套,非接地封装, 3mm 直径， 150mm 长，M8连接器模制探头.
M8MJSS-M3-U-200 J型热电偶,304不锈钢护套,非接地封装, 3mm 直径， 200mm 长，M8连接器模制探头.
M8MJSS-M3-U-250 J型热电偶,304不锈钢护套,非接地封装, 3mm 直径， 250mm 长，M8连接器模制探头.
M8MKIN-M2-U-150 K型热电偶,INC600合金护套,非接地封装, 2mm 直径， 150mm 长，M8连接器模制探头.
M8MKIN-M2-U-200 K型热电偶,INC600合金护套,非接地封装, 2mm 直径， 200mm 长，M8连接器模制探头.
M8MKIN-M2-U-250 K型热电偶,INC600合金护套,非接地封装, 2mm 直径， 250mm 长，M8连接器模制探头.
M8MKIN-M3-U-150 K型热电偶,INC600合金护套,非接地封装, 3mm 直径， 150mm 长，M8连接器模制探头.
M8MKIN-M3-U-200 K型热电偶,INC600合金护套,非接地封装, 3mm 直径， 200mm 长，M8连接器模制探头.
M8MKIN-M3-U-250 K型热电偶,INC600合金护套,非接地封装, 3mm 直径， 250mm 长，M8连接器模制探头.
M8连接线
M8C-SIL-KI-S-F-1.5 M8 Type K Thermocouple Extension Cable with an Straight Female M8 Conector One End and Flying Leads on the Other. 1.5 meters Long, IEC Color Code
M8C-SIL-KI-S-F-3 M8 Type K Thermocouple Extension Cable with an Straight Female M8 Conector One End and Flying Leads on the Other. 3 meters Long, IEC Color Code
M8C-SIL-KI-S-F-5 M8 Type K Thermocouple Extension Cable with an Straight Female M8 Conector One End and Flying Leads on the Other. 5 meters Long, IEC Color Code
M8C-SIL-K-S-F-1.5 M8 Type K Thermocouple Extension Cable with an Straight Female M8 Conector One End and Flying Leads on the Other. 1.5 meters Long, ANSI Color Code
M8C-SIL-K-S-F-3 M8 Type K Thermocouple Extension Cable with an Straight Female M8 Conector One End and Flying Leads on the Other. 3 meters Long, ANSI Color Code
M8C-SIL-K-S-F-5 M8 Type K Thermocouple Extension Cable with an Straight Female M8 Conector One End and Flying Leads on the Other. 5 meters Long, ANSI Color Code
M8C-SIL-JI-S-F-1.5 M8 Type J Thermocouple Extension Cable with an Straight Female M8 Conector One End and Flying Leads on the Other. 1.5 meters Long, IEC Color Code
M8C-SIL-JI-S-F-3 M8 Type J Thermocouple Extension Cable with an Straight Female M8 Conector One End and Flying Leads on the Other. 3 meters Long, IEC Color Code
M8C-SIL-JI-S-F-5 M8 Type J Thermocouple Extension Cable with an Straight Female M8 Conector One End and Flying Leads on the Other. 5 meters Long, IEC Color Code
M8C-SIL-J-S-F-1.5 M8 Type J Thermocouple Extension Cable with an Straight Female M8 Conector One End and Flying Leads on the Other. 1.5 meters Long, ANSI Color Code
M8C-SIL-J-S-F-3 M8 Type J Thermocouple Extension Cable with an Straight Female M8 Conector One End and Flying Leads on the Other. 3 meters Long, ANSI Color Code
M8C-SIL-J-S-F-5 M8 Type J Thermocouple Extension Cable with an Straight Female M8 Conector One End and Flying Leads on the Other. 5 meters Long, ANSI Color Code
型号说明：
M8M
-
-
-
选项描述
(1) Thermocouple Type
选择
JSS 代表 Type J with 304 Stainless Steel Sheath
KIN 代表 Type K with Inconel Sheath
(2) Probe Diameter
选择
18 代表 1/8 Inch Diameter
M2 代表 2mm Diameter
M3 代表 3mm Diameter
(3) Junction Type
选择
U 代表 Ungrounded Junction (Standard)
G 代表 Grounded Junction (Optional)
(4) Probe Length
选择
6 代表 6 Inch Long (1/8 Inch Diameter Only)
9 代表 9 Inch Long (1/8 Inch Diameter Only)
12 代表 12 Inch Long (1/8 Inch Diameter Only)
150 代表 150mm Long (2mm and 3mm Diameter Only)
200 代表 200mm Long (2mm and 3mm Diameter Only)
250 代表 250mm Long (2mm and 3mm Diameter Only)
