HHF142A风速计 美国omega
手持旋转叶轮风速计
HHF142
手持旋转叶轮风速计
商店和召回，回车，到风管尺寸10
高准确度（%）&plu***n;1.0阅读）
低的速度敏***
宽温度范围从20到100°C（-4至212°F）。
***小和***大捕获
模拟电压输出与通信选项
（3）证书的数据点）

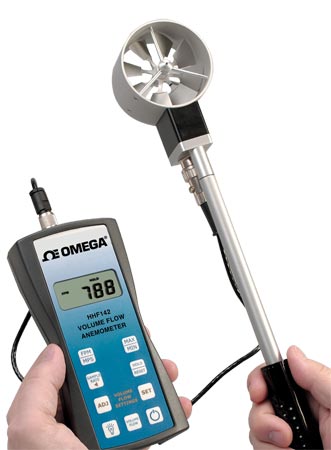

在omega?hhf142 anemometer旋转叶片是一个高质量的仪器提供准确的空气速度和体积流量测量在恶劣的环境中。使用者可以很容易地进入导管的开口
尺寸和体积流动速率calculates hhf142自动从管。导管的大小是存储在内存中的在线自动关断和独特的管道10到recalled大小可以存储被频繁使用。
规格
Ranges
HHF142A: 1.5 to 35.00 MPS (60 to 6800 FPM)
HHF142B: 0.2 to 40.00 MPS (40 to 7800 FPM)
Calculated Air Volume Flow: 0.0 to 9999 CFM (0.0 to 9999 CMH)
Accuracy: &plu***n;1.0% of reading &plu***n;1-digit
Resolution: 1 FPM or 0.01 MPS
Display: 12.7 mm (0.5") LCD, 4-digits, with LED backlight
Operating Temp:
Instrument: 0 to 50°C (32 to 125°F)
Probe: -20 to 100°C (-4 to 212°F)
Power Supply: 3 "AA" alkaline batteries (included)
Battery Life: Approximately 150 hours
Dimensi***:
Instrument: 165 x 83 x 38 mm (6.5 x 3.25 x 1.5")
HHF142A: 25 mm (1") dia. probe
HHF142B: 70 mm (2.75") dia. probe
Cable: 1.5 m (5')
Outputs (Optional): USB or 0 to 5 Vdc analog signal
产品型号/产品描述
HHF142A Handheld anemometer with 25 mm (1") dia probe
HHF142A-USB Handheld anemometer with 25 mm (1") dia probe, with USB communicati***
HHF142A-V Handheld anemometer with 25 mm (1") dia probe, with 0 to 5 Vdc analog output
HHF142B Handheld anemometer with 70 mm (2?") dia probe
HHF142B-USB Handheld anemometer with 70 mm (2?") dia probe, with USB communicati***
HHF142B-V Handheld anemometer with 70 mm (2?") dia probe, with 0 to 5 Vdc analog output
Accessories
HHF140B-RP 70 mm (2.75") vane probe
HHF140A-RP 25 mm (1") vane probe and 1.5 m (5') cable
HHF140B-CABLE Replacement 1.5 m (5') connector cable
HHF140B-T-CABLE Replacement 1.5 m (5') connector cable with temp
HHF140-232-CABLE Replacement Serial cable RS232
HHF140-USB-CABLE Replacement Serial cable USB
HHF140-V-CABLE Analog output cable
MN1500-4 Replacement AA batteries, package of 4
注释: Comes with NIST certificate (3 data points), vane sensor [25 or 70 mm (1 or 2 ?") depending on model], 3 extension rods (flexible, straight and with handle), 1.5 m (5') cable, 3 "AA" alkaline batteries, hard carrying case and operator's manual.
For units with a protective boot and splash proof seals add "-PB" to the model number and $75 to the price.
