HHWT-SD1手持式数据记录器 美国omega
Handheld Data Logging Meter with SD Card
HHWT-SD1 Series
Handheld Data Logging Meter with SD Card
HHWT-SD1 Series:Handheld Data Logging Meter with SD Card
See All Models Below
PLACE ORDER
1 year warranty NEW! CE RoHS
Dissolved Oxygen Measurements Can Be Compensated for Salt, Altitude and Temperature
Measures Oxygen Content of a Volume of Air
Optional ATC for pH Compensation
Reco*** Max and Min Readings
Performs Real-Time Automatic Data Logging
Sampling Time Settable from 1 Sec to 9 Hrs
Large Easy-to-Read Green Backlit LCD
Auto Power-Off Function

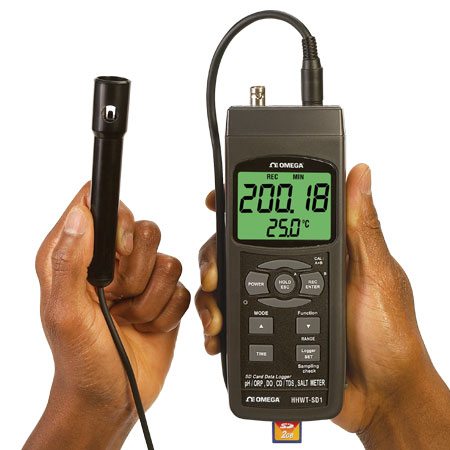

The HHWT-SD1 is a general purpose handheld instrument capable of measuring the pH, Oxidation-Reduction Potential (ORP) or conductivity of a solution, as well as its TDS (Total Dissolved Solids), DO (Dissolved Oxygen) or salt content. Using the included conductivity/TDS/salt probe, an optional DO probe, and optional ORP or pH electrodes the meter can measure pH from 0 to 14, ORP from -1999 mV to 1999 mV, conductivity up to 200 mS (milliSiemens), TDS up to 132,000 ppm, DO up to 20 mg/L, and salt content up to 12% by weight. The HHWT-SD1 is designed for water conditioning, wastewater monitoring, beverage production, aquaculture (fish farming), aquariums, pulp and paper processing, electroplating, and photography applicati***. A front-panel pushbutton enables rapid switching among the meter’s four measurement modes. Because it is microprocessor-based, the HHWT-SD1 is portable, reliable and has the large storage capacities that SD memory ca*** offer. Measurements can be made automatically at any sampling rate between one second and nine hours. After timestamping and storing the measurements on an SD card plugged into the meter, the user can remove the card and plug it into to a computer either directly or via a USB card reader. The values are stored on the card as files with the .xls extension, which can be opened by Microsoft’s Excel? application.
Specificati***
Display Size: 52 x 38 mm (2.05 x 1.5")
Measurement Range:
pH: 0 to 14 (probe sold separately)
ORP: -1999 to 1999 mV (probe sold separately)
Conductivity: Up to 200 mS (microSiemens)
TDS: Up to 132,000 ppm
DO: Up to 20 mg/L (probe sold separately)
Salt: Up to 12% by weight
Measurement Accuracy:
pH: &plu***n;(0.02 pH units + 2 digits) (probe sold separately)
ORP: &plu***n;(0.5% of reading + 2 digits) (probe sold separately)
Conductivity: &plu***n;2% of full-scale reading + 1 digit
TDS: &plu***n;2% of full-scale reading + 1 digit
Temperature: &plu***n;0.8°C/&plu***n;1.5°F
DO: &plu***n;0.4 mg/L in solution (probe sold separately)
Oxygen: 0.1% for oxygen in air (probe sold separately)
Salt: &plu***n;0.5% of value
Temperature Compensation: Automatic between 0 and 65°C (32 and 150°F) with optional ATC temperature probe. Manually settable between 0 and 100°C (32 and 212°F) without ATC probe
Settable Parameters: Date, time, auto power off, beep sound, sampling time, decimal point or comma decimal division, temperature unit, compensation temperature. Also salt and altitude compensation (DO mode only)
Operating Temperature: 0 to 50°C (32 to 122°F)
Meter Dimensi***: 135 H x 60 W x 33 mm D (5.31 x 2.36 x 1.30')
Weight: 35 oz (2.19 lb)
型号 技术参数
HHWT-SD1 Handheld SD data logging water test meter
ADAPTOR 25 Optional AC adaptor
HHWT-SD1-ATC Optional ATC temperature probe
HHWT-SD1-DO Optional DO laboratory electrode
ORE-1311 Optional ORP laboratory electrode
PHE-1311 Optional pH laboratory electrode
PHA-4 pH 4 buffer solution
PHA-7 pH 7 buffer solution
PHA-10 pH 10 buffer solution
CDSA-1413 1413 microSiemen conductivity solution
Note: Comes complete with meter, combination conductivity/TDS/salt probe, hard carrying case, 2 GB SD memory card and operaror’s manual (soluti*** sold separately).
