自检高液位指示器
LV150 Series
自检高液位指示器
Manually “Press to Check”
Adjustable Versi*** for Various Tank Sizes
Standard 2" NPT Mounting

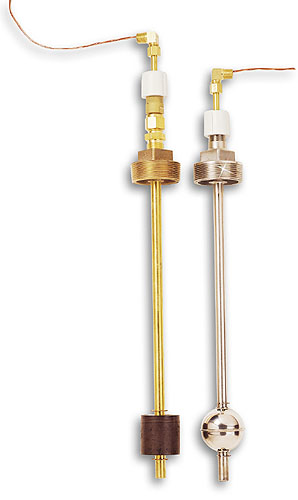

The LV150 Series high level indicators provide a unique solution for tank overfill indication requiring self-checking. This indicator is designed with a 2" NPT mounting, making it ideal for use in underground and aboveground storage tanks. When mounted vertically at the tank top, it reliably indicates high liquid level.
To operate, simply press the brass tube fitting down to perform the self-check test. This manual operation physically moves the inner reed switch assembly while the float remains stationary (wet or dry). By doing this, the switch logic is inverted, checking the integrity of the circuitry without the need to remove the unit from the tank.
Adjustable versi*** are ***ailable for varying tank sizes. A special cinch nut on the mounting allows the stem to tr***el up or down to fine-tune actuation points. The extent of the adjustment depends on the unit’s length and distance from the mounting to the highest float stop.
The LV150 Series is offered in integral one foot lengths. For other lengths, adaptor systems are ***ailable. They c***ist of 2 parts: the LVR-C6S coupling (2 x 2" FNPT) and an LVR-6S pipe nipple (2 x 2" MNPT) of various lengths to change the insertion depth of the sensor. When using the adaptors, retaining clip pliers are required to remove the float for installation.
SPECIFICATI***
Wetted Materials:
Stem and Mounting: Brass or 316 stainless steel
Float: BUNA or 316 stainless steel
Operating Temperature: BUNA Floats: Water: to 82.2°C, Oil -40°C to 121.1°C (-40°F to 250°F). 316 SS Floats: -40°C to 148.9°C (-40°F to 300°F)
Pressure Limitati***: Up to 150 PSIG for BUNA float units or when used with 316 SS adaptors; up to 750 PSIG for 316 SS float units.
Accuracy: &plu***n;3 mm &plu***n;1?8")
Switch Rating: 20 VA, 120-240 Vac pilot duty; 20 W, 50-240 Vdc resistive
Cable: 24" 2-Conductor PVC jacketed
Weight: 1? lbs. + 1?3 lb. per foot for indicators; 1? lbs. for LVR-C6S
产品型号/产品描述
LV151 Brass/BUNA Std Mount, 1 ft length
LV152 Brass/BUNA Std Mount, 2 ft length
LV153 Brass/BUNA Std Mount, 3 ft length
LV154 Brass/BUNA Std Mount, 4 ft length
LV155 Brass/BUNA Std Mount, 5 ft length
LV156 Brass/BUNA Std Mount, 6 ft length
LV151SS 316SS Std Mount,, 1 ft length
LV152SS 316SS Std Mount, 2 ft length
LV153SS 316SS Std Mount, 3 ft length
LV154SS 316SS Std Mount, 4 ft length
LV155SS 316SS Std Mount, 5 ft length
LV156SS 316SS Std Mount, 6 ft length
Accessories
LVR-C6S 150 lb. 316SS Coupling with2" x 2" FNPT
LVR-6S4 150 lb. 316SS Pipe Nipple, 4" Insertion Lenght Change
LVR-6S5 150 lb. 316SS Pipe Nipple, 5" Insertion Lenght Change
LVR-6S6 150 lb. 316SS Pipe Nipple, 6" Insertion Lenght Change
LVR-6S7 150 lb. 316SS Pipe Nipple, 7" Insertion Lenght Change
LVR-6S9 150 lb. 316SS Pipe Nipple, 9" Insertion Lenght Change
LVR-6S11 150 lb. 316SS Pipe Nipple, 11" Insertion Lenght Change
LVR-6S13 150 lb. 316SS Pipe Nipple, 13" Insertion Lenght Change
注释: For units with adjustable mount, add suffix “-A” to model number, and add $70 for brass units and $100 for 316SS units.
