PHH224:经济的TDS/pH/mV 带RS232输出接口
Conductivity/TDS/pH/mV
Splash Proof Front
Reco*** Maximum and Minimum Readings
RS232 Output

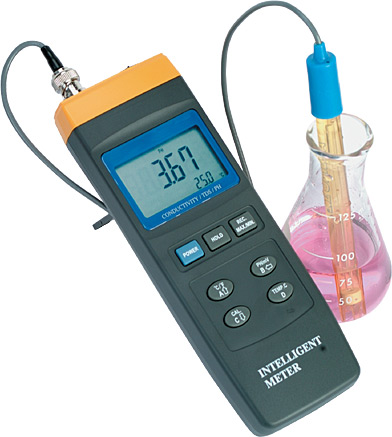

The PHH224 is ideal for water conditioning, beverage, fish hatcheries, laboratory, universities and many other Industrial applicati***. These microprocessor based digital meters are rugged, portable units which are able to recognize and compensate for electrode offset and slope. The PHH224 also features RS232 output, data hold, °C or °F selectable, auto shutoff, overload indication and automatic or manual temperature compensation.
SPECIFICATI***
Sensor: Conductivity included, all others purchased separately
Display: 51 x 32 mm (2 x 1.3"), dual function LCD, 15 mm (0.6") digit
Measurement: pH/mV/ORP/conductivity/TDS
Ranges/Resolution/Accuracy:
pH: 0 to 14/0.01/&plu***n;(0.02 pH +2d)
mV: -1999 to 1999 mV/1 mV/&plu***n;(0.5% + 2d)
Conductivity:
2 mS: 0.2 to 2.0 mS/0.001 mS/&plu***n;(3%FS +1d)
20 mS: 2 to 20.0 mS/0.01 mS/&plu***n;(3%FS +1d)
2000 ppm: 132 to 1320 ppm/1 ppm/&plu***n;(3%FS +1d)
20,000 ppm: 1320 to 13200 ppm/10 ppm/&plu***n;(3%FS +1d)
Temperature: 0 to 60°C (32 to 140°F)/0.1/&plu***n;0.8°C (1.5°F)
Input Impedance: 1012 Ω
Temperature:
Manual: 0 to 100°C (32 to 212°F)
Automatic: ATC probe 0 to 65°C (32 to 149°F) compensation
Data Output: RS232
Data Hold: Yes
Sampling Time: Approx. 0.8 sec
Operating Temp: 0 to 50°C (32 to 122°F)
Operating Humidity: Less than 80% RH
Memory Recall: Max/Min
Power Supply: 9V battery (included)
Dimensi***: 195 x 68 x 30 mm (7.7 x 2.7 x 1.2")
Weight: 250 g (0.55 lbs)
Probe Connecti***:
pH/ORP: BNC
Conductivity/TDS: Plug and play socket
型号：
PHH224 Meter with conductivity/TDS probe and carrying case.
pH probe purchased separately. See accessories.
配件
SWCABLE Cable and software for RS232
PHAT-222 Replacement temperature probe
PHE-4202 Double junction 150mm length 12mm dia
PHE-1311 pH lab Eelectrode (single junction)
PHE-1411 pH lab Eelectrode (double junction)
ORE-1411 ORP electrode
CDE224 Replacement Conductivity/TDS probe
PHA-4 pH 4 calibration solution
PHA-7 pH 7 calibration solution
PHA-10 pH 10 calibration solution
注释是孤立的：完整的操作手册，电导探针（TDS，携带的情况下，和电池。pH电极，分别为。
订购示例phh224仪表：（1）与pH值和电导探针／／TDS携带盒
