T5-600电压电流通断测试仪Fluke t5-600电压波动测试笔 原装***
Fluke T5-600 电压电流通断测试仪 | 电压波动测试

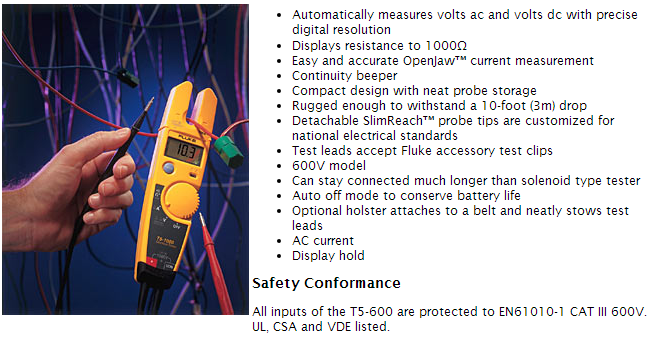

Electrical tester with OpenJaw™ Current
The Fluke T5 Electrical Testers let you check voltage, continuity and current with one compact tool. With the T5, all you h***e to do is select volts, ohms, or current and the tester does the rest. OpenJaw™ current lets you check current up to 100A - without breaking the circuit. Its tough test leads stow neatly in the back of the tester, making it easy to tote the T5 in your tool pouch. Detachable SlimReach™ test probes are customized for national electrical standa***. The test leads accept optional accessories such as clips and specialty probes. The optional H5 holster lets you clip the T5 onto your belt.
| Specificati*** | |
| Jaw opening | 12.9 mm (0.5 in) |
| Max wire size | 1/0 THHN Cable |
| Current range ac rms | 0 to 100.0 A |
| Accuracy ac current (50/60 Hz) | 3 % &plu***n; 3 counts |
| AC Resp***e | ***eraging |
| Voltage range ac | 0 to 600 V |
| Accuracy ac voltage | 1.5 % &plu***n; 2 counts |
| Voltage range dc | 0 to 600 V |
| Accuracy dc voltage | 1 % &plu***n; 1 count |
| Resistance range | 0 to 1000 Ω |
| Continuity beeper threshold | On at <25 Ω, off at >400 Ω |
| Volts indicator LED threshold | Guaranteed on by 30 V ac |
| Environmental Specificati*** | |
| Operating Temperature | -10 °C to 50 °C |
| Storage Temperature | -30 °C to 60 °C |
| Humidity (Without Condensation) | 0 % to 95 % (5 °C to 30 °C); 0 % to 75 % (30 °C to 40 °C); 0 % to 45 % (40 °C to 50 °C) |
| Dust/water resistance | Yes |
| Operating Altitude | 2000 meters max |
| Temperature Coefficient | 0.1 x (specified accuracy)/°C (<18 °C or >28 °C) |
| Safety Specificati*** | |
| Overvoltage category | CAT III 600 V ac/dc (EN61010-1) |
| Agency Approvals | UL, CSA, and VDE |
| Maximum voltage | Between any terminal and earth ground |
| Mechanical and General Specificati*** | |||||||||||
| Size | 30.5 mm x 51 mm x 203 mm | ||||||||||
| Weight | 300g | ||||||||||
| Warranty | Two-years | ||||||||||
| Battery Life | 200 hour zinc chloride, 400 hour alkaline | ||||||||||
| Battery type | 2 x AA | ||||||||||
| Low battery indicator | Yes | ||||||||||
| Current sensor opening | 12.9 mm | ||||||||||
| Calibration cycle | 1 year | ||||||||||
| Test leads |
|
||||||||||
| 型号名称 | 描述 |
| Fluke T5-600 | Voltage Tester Includes:
|
| Clips | |
| AC220 | SureGrip™ 鳄鱼夹 |
| AC285 | SureGrip™ 鳄鱼夹 |
| Test Probes | |
| TLK291 | ***型测试探头组 |
| TP1 | Slim Reach 测试探头组 |
| TP2 | Slim Reach 测试探头组 |
| TP4 | Slim Reach 测试探头组 |
| 机套和挂件 | |
| C101 | 硬质仪器箱 |
| C520A | C520A ***测试探笔包 |
| C150 | 携带软包 |
| H5 | H5 电气测试仪防护套 |
| T5-Kit | T-5 基本型套件 |
