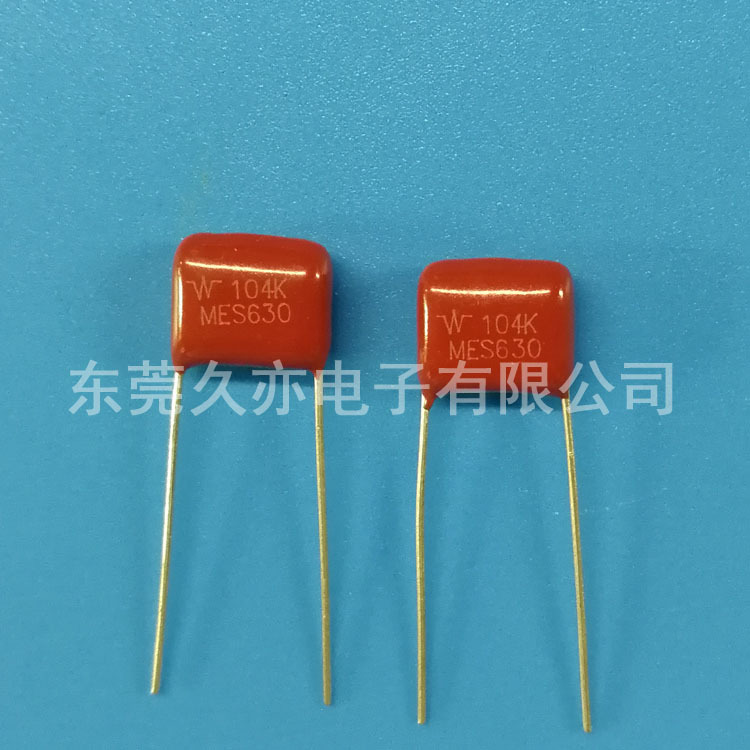

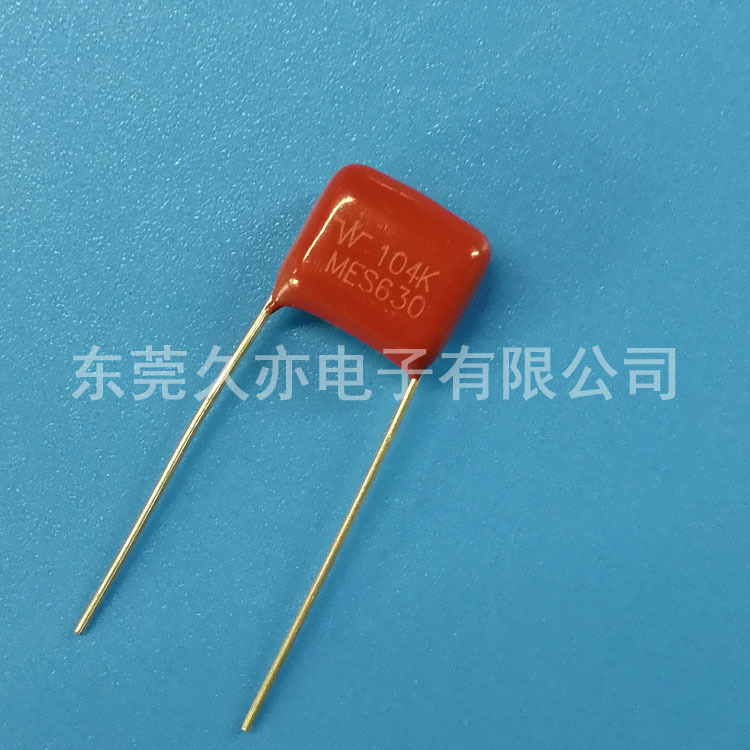

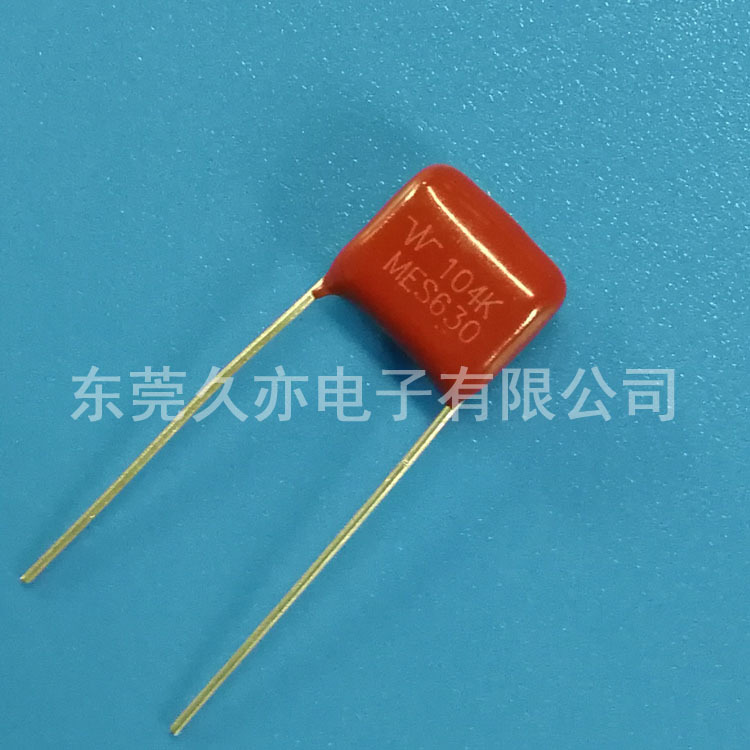

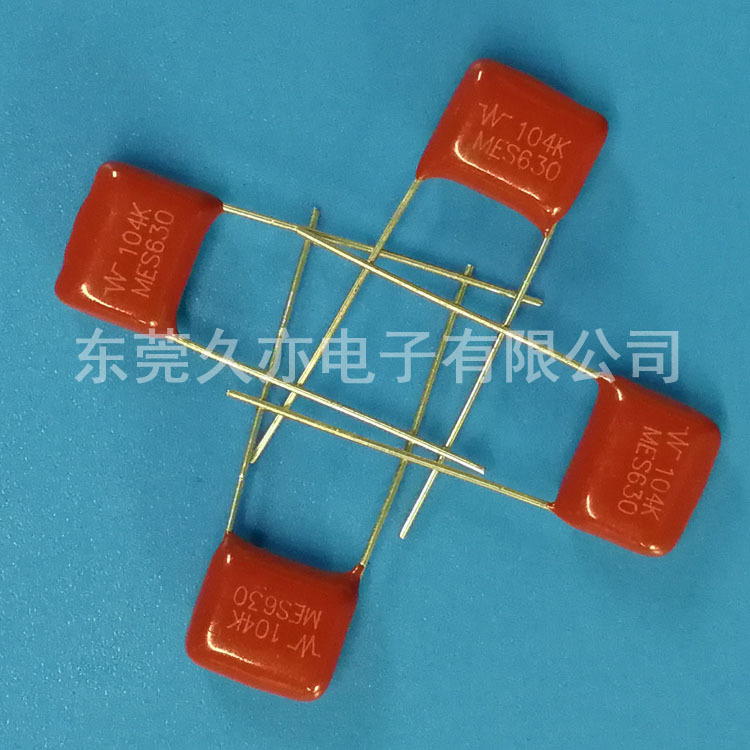

| 品牌 | WB/久亦 | 型号 | MES104K630V | 介质材料 | 聚酯膜 |
| 应用范围 | 旁路 | 外形 | 长方形 | 功率特性 | 中功率 |
| 频率特性 | 中频 | 调节方式 | 固定 | 引线类型 | 同向引出线 |
| 允许偏差 | &plu***n;10（%） | 耐压值 | 1000（V） | 损耗 | 1.0% |
| 额定电压 | 630（V） | 绝缘电阻 | 30000（mΩ） | 温度系数 | -40℃ ~ +105℃ |
| 标称容量 | 0.1uf | 货号 | MES104K630V | 是否跨境货源 | 否 |
(1) 以特殊制作工艺和材料，而制作的超小型产品
(2) 自复能力为传统电容3倍以上，在安全性上有优异的表现
(3) 本产品经特殊制作处理方式，可更有效的***因交流电流而使薄膜产生的机械式振动声(俗称的电容异音)
(4) 使用上限温度可达105℃，可于较高温度环境下使用
(5) 以符合UL94V-0-0 等级环氧粉末封装，阻燃性佳
(1) A super ***all dimension product based on unique processes and materials.
(2) With a repeatability 3 plus time higher compared to conventional capacitor, dem***trating excellent performance in safety.
(3) Providing far more effective noise(capacitor noise) inhibiting effect, with the unique preparation & treatment processes suppressing mechanical vibration in the film resulted from AC.
(4) Offering Operating Temperature range covering upper limit 105℃, ideal for operating under higher operating temperature environment.
(5) Coming with excellent flame-resistance thanks to its packaging with epoxy powder complied with Grade UL94V-0-0.
|
引用标准 Reference Standard
|
IEC60384-2
|
||
| 使用温度 Rated Temperature | -40℃~+105℃ | ||
| 上限使用温度 Upper Category Temperature | +105℃ Derating ratio of rated voltage +85℃~+105℃: 1.5% per ℃ for VR(DC) |
||
| 额定电压 Rated Voltage | 400VDC,450VDC,500VDC | ||
| 电容量范围 Capacitance Range | 0.1uf~2.2uf | ||
| 电容量偏差 Capacitance Tolerance | &plu***n;5%(J), &plu***n;10%(K) | ||
| 损耗角正切 Dissipation factor | 1.0%(max) at 1KHz | ||
| 耐电压 Voltage Proof | Terminal to Terminal:(at 20&plu***n;5%) 1.5*VR applied for 2 sec. (cut off current 10mA) |
||
| 绝缘电阻 Insulation resistance (I.R.) | ≧30 000MΩ ≧10 000MΩ ≧1 000MΩ |
CR≦0.33uf 1.0uf >CR＞0.33uf CR≧1.0uf |
20&plu***n;5℃,100VDC,1min |
MES 外型尺寸 Dimensi***(mm)
|
R.V.
|
400VDC (2G)
|
450VDC (2L)
|
||||||||
|
Size
Cap.(uf) |
W
|
H
|
T
|
P
|
D
|
W
|
H
|
T
|
P
|
D
|
|
Max
|
Max
|
Max
|
&plu***n;1
|
&plu***n;0.05
|
Max
|
Max
|
Max
|
&plu***n;1
|
&plu***n;0.05
|
|
| 0.1 | 12.5 | 7.5 | 4 | 10 | 0.6 | 12.5 | 7.5 | 4 | 10 | 0.6 |
| 0.12 | 12.5 | 9.5 | 4.5 | 10 | 0.6 | 12.5 | 9.5 | 4.5 | 10 | 0.6 |
| 0.15 | 12.5 | 9.5 | 4.5 | 10 | 0.6 | 12.5 | 9.5 | 4.5 | 10 | 0.6 |
| 0.18 | 12.5 | 10 | 5.5 | 10 | 0.6 | 12.5 | 10 | 5.5 | 10 | 0.6 |
| 0.22 | 12.5 | 10.5 | 5.5 | 10 | 0.6 | 12.5 | 10.5 | 5.5 | 10 | 0.6 |
| 0.27 | 12.5 | 12.5 | 5.5 | 10 | 0.6 | 12.5 | 12.5 | 5.5 | 10 | 0.6 |
| 0.33 | 12.5 | 13 | 6 | 10 | 0.6 | 12.5 | 13 | 6 | 10 | 0.6 |
| 0.39 | 12.5 | 13.5 | 6.5 | 10 | 0.6 | 12.5 | 13.5 | 6.5 | 10 | 0.6 |
| 0.47 | 12.5 | 14.5 | 7 | 10 | 0.6 | 12.5 | 14.5 | 7 | 10 | 0.6 |
| 0.47 | 17.5 | 12.5 | 5.5 | 15 | 0.6 | 17.5 | 12.5 | 5.5 | 15 | 0.6 |
| 0.56 | 17.5 | 13.5 | 6 | 15 | 0.6 | 17.5 | 13.5 | 6 | 15 | 0.6 |
| 0.68 | 17.5 | 14 | 6 | 15 | 0.8 | 17.5 | 14 | 6 | 15 | 0.8 |
| 0.82 | 17.5 | 15.5 | 7 | 15 | 0.8 | 17.5 | 15.5 | 7 | 15 | 0.8 |
| 1.0 | 17.5 | 16 | 7 | 15 | 0.8 | 17.5 | 16 | 7 | 15 | 0.8 |
| 1.0 | 25 | 14 | 7 | 22.5 | 0.8 | 25 | 14 | 7 | 22.5 | 0.8 |
| 1.2 | 17.5 | 17 | 8.5 | 15 | 0.8 | 17.5 | 17 | 8.5 | 15 | 0.8 |
| 1.2 | 25.5 | 15 | 7 | 22.5 | 0.8 | 25.5 | 15 | 7 | 22.5 | 0.8 |
| 1.5 | 17.5 | 18 | 9.5 | 15 | 0.8 | 17.5 | 18 | 9.5 | 15 | 0.8 |
| 1.5 | 25.5 | 16 | 7.8 | 22.5 | 0.8 | 25.5 | 16 | 7.8 | 22.5 | 0.8 |
| 1.8 | 25.5 | 17 | 8.3 | 22.5 | 0.8 | 25.5 | 17 | 8.3 | 22.5 | 0.8 |
| 2.2 | 17.5 | 20 | 12 | 15 | 0.8 | 17.5 | 20 | 12 | 15 | 0.8 |
| 2.2 | 25.5 | 18.8 | 8.8 | 22.5 | 0.8 | 25.5 | 18.8 | 8.8 | 22.5 | 0.8 |
