巴哈尔壳体厂家***！！！
铁外壳

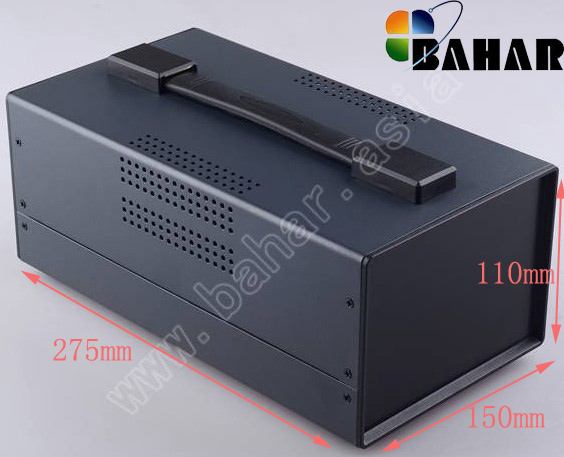

型号：BDA40005（W275）+BTS
尺寸：150*110*275MM
材质：冷轧板
产品特点：产品外形美观，外观采用喷粉工艺，配有脚垫可局部改动及加工，***机器开孔
长度、颜色可定制！
此产品价格包含17%***，含***包装，不含运费
| 巴哈尔壳体铁（面板塑料）外壳尺寸表 | |||||
| 型号 | 尺寸(宽*高*深) | 型号 | 尺寸(宽*高*深) | 型号 | 尺寸(宽*高*深) |
| BDA 40001-A1-W165 | 200X 90X165MM | BDA40005-A1-W195 | 150X110X195MM | BDA40008-A1-W195 | 220X120X195MM |
| BDA 40001-A1-W200 | 200X 90X200MM | BDA40005-A2-W195 | 150X110X195MM | BDA40008-A2-W195 | 220X120X195MM |
| BDA 40001-A1-W230 | 200X 90X230MM | BDA40005-A1-W275 | 150X110X275MM | BDA40008-A1-W275 | 220X120X275MM |
| BDA 40001-A1-W250 | 200X 90X250MM | BDA40005-A2-W275 | 150X110X275MM | BDA40008-A2-W275 | 220X120X275MM |
| BDA40002-A1-W200 | 230X110X200MM | 40005-A1-W275+BTS | 150X110X275MM | 40008-A1-W275+BTS | 220X120X275MM |
| BDA40002-A1-W250 | 230X110X250MM | 40005-A2-W275+BTS | 150X110X275MM | 40008-A2-W275+BTS | 220X120X275MM |
| BDA40002-A1-W290 | 230X110X290MM | BDA40006-A1-W195 | 150X160X195MM | BDA40008-A1-W325 | 220X120X325MM |
| BDA40002-A1-W350 | 230X110X350MM | BDA40006-A2-W195 | 150X160X195MM | BDA40008-A2-W325 | 220X120X325MM |
| BDA40003-A1-W250 | 300X150X250MM | BDA40006-A1-W275 | 150X160X275MM | 40008-A1-W325+BTS | 220X120X325MM |
| BDA40003-A1-W300 | 300X150X300MM | BDA40006-A2-W275 | 150X160X275MM | 40008-A2-W325+BTS | 220X120X325MM |
| BDA40003-A1-W350 | 300X150X350MM | BDA40006-A1-W325 | 150X160X325MM | BDA40009-A1-W115 | 280X80X115MM |
| BDA40003-A1-W450 | 300X150X450MM | BDA40006-A2-W325 | 150X160X325MM | BDA40009-A2-W115 | 280X80X115MM |
| BDA40004-A1-W100 | 150X70X100MM | 40006-A1-W275+BTS | 150X160X275MM | BDA40009-A1-W170 | 280X80X170MM |
| BDA40004-A2-W100 | 150X70X100MM | 40006-A2-W275+BTS | 150X160X275MM | BDA40009-A2-W170 | 280X80X170MM |
| BDA40004-A1-W140 | 150X70X140MM | 40006-A1-W325+BTS | 150X160X325MM | BDA40009-A1-W210 | 280X80X210MM |
| BDA40004-A2-W140 | 150X70X140MM | 40006-A2-W325+BTS | 150X160X325MM | BDA40009-A2-W210 | 280X80X210MM |
| BDA40004-A1-W170 | 150X70X170MM | BDA40007-A1-W195 | 220X80X195MM | BDA40009-A1-W250 | 280X80X250MM |
| BDA40004-A2-W170 | 150X70X170MM | BDA40007-A2-W195 | 220X80X195MM | BDA40009-A2-W250 | 280X80X250MM |
| BDA40004-A1-W200 | 150X70X200MM | BDA40007-A1-W275 | 220X80X275MM | BDA40009-A1-W325 | 280X80X325MM |
| BDA40004-A2-W200 | 150X70X200MM | BDA40007-A2-W275 | 220X80X275MM | BDA40009-A2-W325 | 280X80X325MM |
| 以上产品大部份默认有二种颜色A1表示白色，A2表示黑色！+BTS表示带提手 以上产品都是面板为ABS塑料的，其余是电解板！ |
|||||
