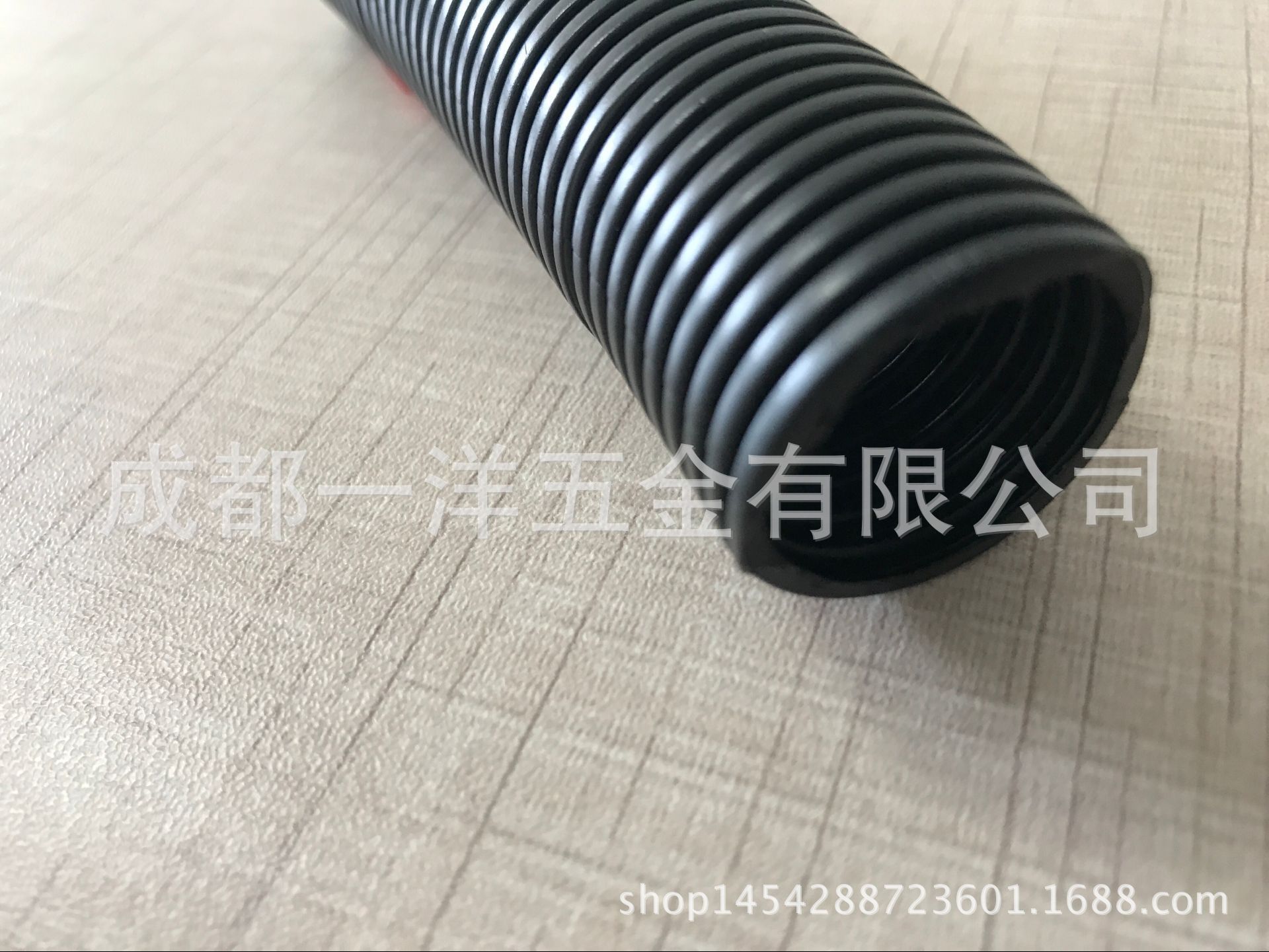

| PE Conduit | ||||||||||
| 材 质： | 聚乙烯 | 型号 Part No. | 内径x外径(mm) | 弯曲半径（mm) | 包装(m/coil) | |||||
| 柔软性高，具有良好的弯曲性，能耐油、耐酸、耐腐蚀，不***烧。 | 黑Black | 灰Grey | I.D.x O.D. | Bending Radius | Packing | |||||
| 防护等级： | IP65 | PEB10 | PEG10 | 6.5x10.0 | 30 | 100 | ||||
| 耐温范围： | -40℃ - +110℃ | PEB11 | PEG11 | 10.0x13.0 | 40 | 100 | ||||
| 阻燃等级： | V0 | PEB12 | PEG12 | 12.0x15.8 | 50 | 100 | ||||
| Materials: | Polythene | PEB13 | PEG13 | 14.3x18.5 | 60 | 100 | ||||
| High flexibility and good bending, anti-oil, acid, | PEB14 | PEG14 | 17.0x21.2 | 70 | 100 | |||||
| corrosion, nonflammable. | PEB15 | PEG15 | 23.0x28.5 | 100 | 100 | |||||
| Pretection rating: | IP 65 | PEB16 | PEG16 | 29.0x34.5 | 120 | 50 | ||||
| Temperature range: | -40℃ - +110℃ | PEB17 | PEG17 | 36.0x42.5 | 150 | 25 | ||||
| Flame retardant rating: | V0 | PEB18 | PEG18 | 48.0x54.5 | 180 | 25 | ||||
| PEB19 | PEG19 | 56.2x67.2 | 260 | 10 | ||||||
| PEB20 | PEG20 | 66.5x80.0 | 350 | 10 | ||||||
