金科JK593G光伏桩孔潜孔钻机2022云南光伏发电站桩基钻孔双回转马达大扭矩钻车

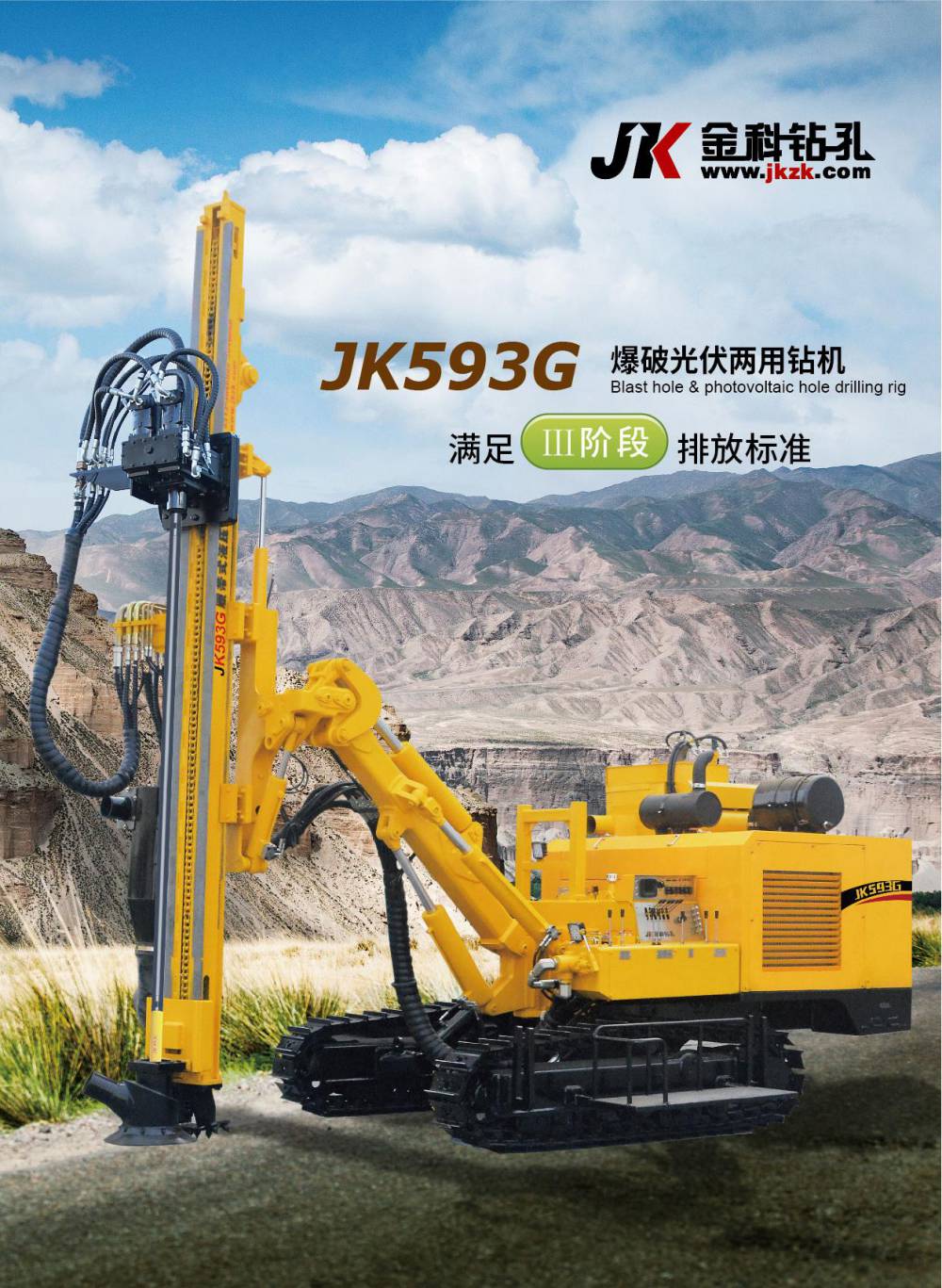

JK593G***光伏钻孔履带式多功能钻机

JK593G***光伏钻孔履带式多功能钻机，结构***优化，进尺成本更低，设计更人性化。采用柴油发动机一液压油泵组为动力装置，由液压马达实现钻机回转、推进、提升、行走及液压油缸摆角***等辅助动作。

JK593G履带式液压潜孔钻机主要用于光伏、水电工程，露天采矿，道路修建，国防工程的钻凿***孔作业。

JK593G is a dual - purpose driling rig for blasting holes and photovoltaic holes . The structure is fuly optimized , the footage cost is lower , and the design is more user - friendly . The diesel engine - hydraulic oil pump set is used as the power device , and the auxiliary acti*** of the driling rig such as rotation , feeding , lifting , walking and hydraulic cylinder swing angle positioning are realized by the hydraulic motor .

JK593G crawler mounted hydraulic down - the - hole driling rig is mainly used for driling and blasting holes in photovoltaic , hydropower projects , open - pit mining ,Г oad c***truction , and national defense projects .

01、回转机 Rotation unit

加强型回转箱体，双马达回转，回转扭矩更大，且可实现回转速度双速调节，设有转速切换，两档转速快速切换，以便钻机适用不同工况。带减震器接头，运行更平稳，故障率更低，降低了日常维护成本松散层不易卡钻，成孔率高。

进口回转密封件，密封性好、寿命长。

 The reinforced rotation unit has dual motors , which brings greater rotation torque and can realize two - speed adjustment of rotation speed . Equipped with a speed switching valve , the two - speed speed can be quickly switched , so that the drilling rig can be used in different working conditi*** . With a shock absorber joint , the operation is more stable , the failure rate is lower , and the daily maintenance cost is reduced , besides , the loose layer is not easy to get stuck so as to realize higher hole formation rate .

 Imported rotary seals h***e good sealing performance and long service life .

02、动力装置 Power train

进口液压油泵、液压，耐压高，排量大，质量更可靠，寿命长。

潍柴74KW增压发动机，柴油机配置满足阶段排放标准。动力强劲，易维护***。

两级空气滤清装置，确保发动机吸入洁净空气，安全可靠。

油水一体散热器，保证在高温环境下，发动机和液压系统正常工作。

   Imported hydraulic oil pump has high pressure resistance , large displacement , more reliable quality and long life .

 Weichai 74KW engine configuration meets Phase Ill emission standa*** , it is powerful and easy to maintain .

 The two - stage air filter device ensures that the engine sucks in clean air , which is safe and reliable .

 The oil - water integrated radiator ensures the normal operation of the engine and hydraulic system in a high temperature environment .

03、免维护推进机构 Maintenance - free feed mechani***

液压机械双重锁定，液压马达的大扭矩稳定输出，自动机械锁定，防止下滑，二者结合，使用寿命长。

技术更***，不需要日常油维护。

 The hydraulic and mechanical double lock not only ensures the stable output of the large torque of the hydraulic motor , but also greatly imp Г oves the service life than the worm and gear . The mechanical lock also prevents hydraulic leakage and prevents sliding . The combination of the two , each takes its own strengths .

 The technology is more advanced which does not require daily refueling and maintenance .

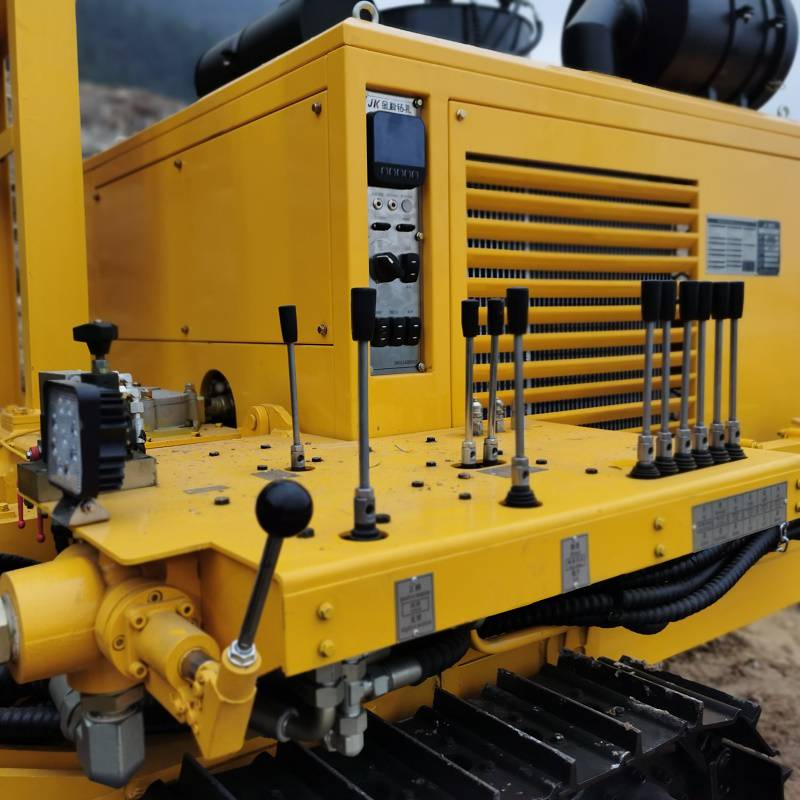

04、操纵台 Control panel

操纵集中布置，便于钻机的各项操作控制。液压操作系统，性能可靠，操作简单，维护成本低。视野更宽，操纵更安全，适合工地的不同使用情况，设计更加安全化、人性化。

快速推进及提升操作，减少辅助时间，提***率。推进力大小可根据钻进需要随时调节。

 The control valves are centraly arranged to facilitate the operation and control of the drilling rig . Hydraulic operating system , reliable performance , simple operation and low maintenance cost . Wider field of vision , safer manipulation , suitable for different use situati*** on the c***truction ste , and more secure and user - friendly design .

 Quickly feeding and lifting operati*** , reduce auxiliary time and improve efficiency . The feeding force can be adjusted at any time according to the drilling needs .

05、底盘系统Maintenance - free undercarriage

加长底盘，***降低，稳定性好。

大扭矩行走马达，爬坡能力强，行走速度快，同时配有双速行走系统，节省移位时间。

装配行走平衡系统，履帯架前后浮动各10度，适于崎岖现场施工。

免维护四轮一带，无需注油。

加装履带护板，防止履带脱轨。

加装双钻杆库和大操作站立平台。

 Lengthened chassis , lower center of gr***ity and better stability .

 The high - torque walking motor has strong climbing ability and fast walking speed , and is equipped with a two - speed walking system to s***e shifting time .

 Equipped with a walking balance system , the crawler frame floats 10° forward and backward , which is suitable for rough site c***truction .

 Maintenance - free four - wheel belt , no need to fil

  Oil . Instal track gua*** to prevent track derailment . A double dril rod carousel and a large operating standing platform are installed .

06、滑架系统 Feeding system

加强型滑架，双外翻式加工耐磨导轨，导轨厚、精度高，推进、提升及滑架补偿更稳定。

一体式钻臂支座，强度高，钻臂稳定性好，维修便捷。多角度、加长型功能钻臂，钻孔范围更广，比同类钻机钻孔工作扇形面积多20%。

滑架及钻臂稳定性好，能压得住，适合光伏大孔作业

 Reinforced feed , with double valgus processing wear - resistant guide rail , which is thick and with high precision , can bring more stable performance of feeding , lifting and extension .

 The integrated boom support has high strength , good boom stability and convenient maintenance .

 Multi - angle , lengthened functional dril arm h***e wider drilling range ,20% more fan - shaped area than similar drilling rigs .

07、电控系统 Electronic control system

电控系统采用进口元，品质可靠，故障率低。

发动机的工作运行参数、提示、报警功能集中在仪表上，便于操作者观察，各项数据一目了然。

可选配角度仪，钻机的开孔角度实时显示，方便操作者准确布孔，掌控全局。

 The electronic control system adopts imported compo -nents , with reliable quality and low failure rate .

 The operating parameters , prompts and alarm functi*** of the engine are concentrated on the instrument , which is conve - nient for the operator to observe and makes the data clear at a glance .

 Inclinometer is optional . The driling angle of the driling rig is displayed in real time , which is convenient for the operator to arrange holes accurately and control the overall situation .
