| 油封用途 | 油缸防尘 | 材料 | 聚氨酯 |
| 品牌 | 意大利液路坚 | 型号 | GHK |
| 适用车型 | 各种车型 | 尺寸 | 各种规格（mm） |
| 工作温度 | -30-120（℃） |

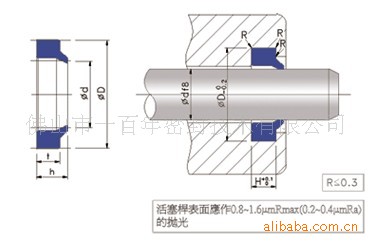

GHM 活塞杆防尘密封
适用于多尘埃及潮湿的环境
一般特性
容易安装
高抗磨损性
高抗紧压性
低变形量
参考工作条件
速度：0.5m/s
温度：-30-120
| GHK 活塞杆防尘密封 | ||
| 编号 | d*D*L | M |
| GHK 047070 | 12*18.6*3.8 | 15 |
| GHK 047063 | 12*16.6*3 | 14 |
| GHK 039055 | 10*14.6*2 | 12 |
| GHK 051074 | 13*19.6*3.8 | 16 |
| GHK 055078 | 14*20.6*3.8 | 17 |
| GHK 059082 | 15*21.6*3.8 | 18 |
| GHK 063087 | 16*22.6*3.8 | 19 |
| GHK 062087/1 | 16*22.6*2.7 | 19 |
| GHK 066094 | 17*23.6*3.8 | 20 |
| GHK 070094 | 18*24.6*3.8 | 21 |
| GHK 074110 | 19*28.6*5.3 | 22 |
| GHK 078102 | 20*26.6*3.4 | 23 |
| GHK 078110 | 20*28.6*5.3 | 23 |
| GHK 086118 | 22*30.6*5.3 | 25 |
| GHK 094125 | 24*32.6*5.3 | 27 |
| GHK 098129 | 25*33.6*5.3 | 28 |
| GHK 102133 | 26*34.6*5.3 | 29 |
| GHK 106137 | 27*35.6*5.3 | 30 |
| GHK 110141 | 28*36*5.3 | 31 |
| GHK 118141 | 30*36.6*4.2 | 32 |
| GHK 118149 | 30*38.6*5.3 | 33 |
| GHK 125157 | 32*40.6*5.3 | 35 |
| GHK 129161 | 33*41.6*5.3 | 36 |
| GHK 137169 | 35*43.6*5.3 | 38 |
| GHK 141173 | 36*44.6*5.3 | 39 |
| GHK 149181 | 38*46.6*5.3 | 41 |
| GHK 157174 | 40*44.8*5.3 | 42 |
| GHK 157188 | 40*48.6*5.3 | 43 |
| GHK 165196 | 42*50.6*5.3 | 45 |
| GHK 177208 | 45*53.6*5.3 | 48 |
| GHK 177216 | 45*55.6*5.3 | 48 |
| GHK 181212 | 46*54.6*5.3 | 49 |
| GHK 185216 | 47*55.6*5.3 | 50 |
| GHK 188220 | 48*56.6*5.3 | 51 |
| GHK 188236 | 48*60.6*5.3 | 54 |
| GHK 196228 | 50*58.6*5.3 | 53 |
| GHK 196236 | 50*60.6*5.3 | 54 |
| GHK 208240 | 53*61.6*5.3 | 56 |
| GHK 216248 | 55*63.6*5.3 | 58 |
| GHK 216255 | 55*65.5*5.3 | 59 |
| GHK 220251 | 56*64.6*5.3 | 59 |
| GHK 220259 | 56*66.6*5.3 | 60 |
| GHK 236267 | 60*68.6*5.3 | 63 |
| GHK 236275 | 60*70.6*5.3 | 63 |
| GHK 240279 | 61*69.6*5.3 | 64 |
| GHK 248279 | 63*71.6*5.3 | 66 |
| GHK 248287 | 63*73.6*5.3 | 67 |
| GHK 248287/1 | 63*73.6*6.1 | 67 |
| GHK 248295 | 63*75.6*5.3 | 69 |
| GHK 255287 | 65*73.6*5.3 | 68 |
| GHK 255295 | 65*75.6*5.3 | 69 |
| GHK 267299 | 68*76*5.3 | 72 |
| GHK 275307 | 70*78.6*5.3 | 73 |
| GHK 275314 | 70*80.6*5.3 | 72 |
| GHK 275322 | 70*82.6*7.1 | 76 |
| GHK 295326 | 75*83.6*5.3 | 78 |
| GHK 295345 | 75*87.2*7.1 | 81 |
| GHK 299330 | 76*84.6*5.3 | 79 |
| GHK 307338 | 78*86.6*5.3 | 81 |
| GHK 314346 | 80*88.6*5.3 | 83 |
| GHK 314354 | 80*90.6*5.3 | 85 |
| GHK 314362 | 80*92.2*7.1 | 86 |
| GHK 326374 | 83*95.2*7.1 | 89 |
| GHK 334366 | 85*93.6*5.3 | 88 |
| GHK 334381 | 85*97.2*7.1 | 91 |
| GHK 346377 | 88*96.6*5.3 | 91 |
| GHK 354385 | 90*98.6*5.3 | 93 |
| GHK 354401 | 90*102.2*7.1 | 96 |
| GHK 358389 | 91*99.6*5.3 | 94 |
| GHK 374421 | 95*107.2*7.1 | 101 |
| GHK 381413 | 97*105.6*5.3 | 100 |
| GHK 393440 | 100*112.2*7.1 | 106 |
| GHK 393452 | 100*115.2*9.3 | 107.5 |
| GHK 399462 | 101.5*117.5*7.1 | 109.5 |
| GHK 407407 | 103.5*119.5*7.1 | 111.5 |
| GHK 413444 | 105*113.6*5.3 | 108 |
| GHK 413460 | 105*117.2*7.1 | 111 |
| GHK 413472 | 105*120*5.3 | 112.5 |
| GHK 420452 | 107*115.6*5.3 | 110 |
| GHK 425472 | 108*120.2*7.1 | 114 |
| GHK 433480 | 110*122.2*7.1 | 116 |
| GHK 452500 | 115*127.2*7.1 | 121 |
| GHK 464497 | 118*126.6*5.3 | 121 |
| GHK 472504 | 120*128.6*5.3 | 123 |
| GHK 472519 | 120*132.2*7.1 | 126 |
| GHK 492539 | 125*137.2*7.1 | 131 |
| GHK 492551 | 125*140.2*10.1 | 132.6 |
| GHK 495529 | 126*134.6*5.3 | 129 |
| GHK 511559 | 130*142.2*7.1 | 136 |
| GHK 531578 | 135*147.2*7.1 | 141 |
| GHK 551598 | 140*152.2*7.1 | 146 |
| GHK 551610 | 140*155.2*10.1 | 147.6 |
| GHK 562596 | 143*151.6*5.3 | 146 |
| GHK 570603 | 145*153.6*5.3 | 148 |
| GHK 570618 | 145*157.2*7.1 | 151 |
| GHK 578610 | 147*155*5.3 | 150 |
| GHK 590637 | 150*162.2*7.1 | 156 |
| GHK 590649 | 150*165.2*10.1 | 157.6 |
| GHK 629688 | 160*175.2*10.1 | 168 |
| GHK 649698 | 165*177.2*7.1 | 170 |
| GHK 649708 | 165*180.22*10.2 | 160 |
| GHK 669700 | 170*178*5.3 | 174 |
| GHK 669708 | 170*180.6*5.3 | 175 |
| GHK 669728 | 170*185.2*10.1 | 178 |
| GHK 672707 | 171*179.6*5.3 | 174 |
| GHK 688736 | 175*187.2*7.1 | 183 |
| GHK 708767 | 180*195.2*10.1 | 188 |
| GHK 708787 | 180*200.2*10.2 | 190 |
| GHK 748826 | 190*210.2*10.2 | 200 |
| GHK 767826 | 195*210.2*10.2 | 202.5 |
| GHK 771826 | 196*210.2*7.1 | 203 |
| GHK 775822 | 197*209.2*7.1 | 203 |
| GHK 787866 | 200*220.2*10.2 | 210 |
| GHK 826885 | 210*225.2*7.1 | 217.5 |
| GHK 866925 | 220*235.2*10.2 | 230 |
| GHK 866944 | 220*240*10.2 | 230 |
| GHK 874921 | 222*234.2*7.1 | 228 |
| GHK 9251003 | 235*255*10.2 | 245 |
| GHK 9371015 | 238*258.2*10.2 | 248 |
