美国omega LV-22液位开关
低成本液位开关，单站，垂直安装
LV-10
1年保修
低成本液位开关，单站，垂直安装
低成本，紧凑的设计为通用级监控
坚固耐用，耐冲击和振动
安装在罐的顶部或底部垂直
对于高重复性磁簧开关的设计
用户可选，常开或常闭开关

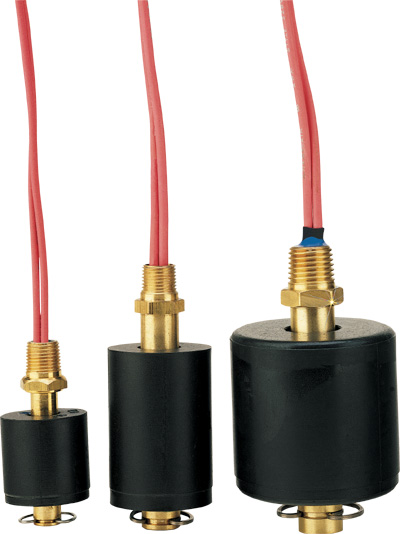

The LV-10 Series level switches feature a ***all float displacement, especially suited for narrow or restricted areas. A standard 1/8 NPT male fitting allows for quick installation in either the top or bottom of the tank or vessel. A sealed SPST switch provides c***istent accuracy and high repeatability with the effects of shock, vacuum or vibration minimized. Extremely versatile, the switch is user selectable as normally open or normally closed by simply removing the retaining clip and inverting the position of the float.
For intermediate float displacement, the LV-20 Series will yield long life and greater stability for a broad range of level monitoring requirements. The LV-30 Series larger float displacement is intended for use with liquids of high viscosity, and is well suited for harsh environments. All models share the standard features of the LV-10.
产品型号/产品描述
LV-10 Brass Stem Material; 20 VA Switch Rating
LV-11 316SS Stem Material; 20 VA Switch Rating
LV-20 Brass Stem Material; 20 VA Switch Rating
LV-21 Brass Stem Material; 100 VA Switch Rating
LV-22 316SS Stem Material; 20 VA Switch Rating
LV-23 316SS Stem Material; 100 VA Switch Rating
LV-30 Brass Stem Material; 20 VA Switch Rating
LV-31 Brass Stem Material; 100 VA Switch Rating
LV-32 316SS Stem Material; 20 VA Switch Rating
LV-33 316SS Stem Material; 100 VA Switch Rating
注释: Comes complete with operator's manual.
