CdS Photoconductive cells￠3 Series
Pruduct Model:LXD/3516
■FEATURE:
·Epoxy encapsulated
·Quick Resp***e
·***all Size
·High Sensitivity
·Rebliable Performance
·Good Characteristic of Spectrum
■TYPICAL APPLICATI***:
·Auto Flash For Cameras·photoelectric Control·Room Light Control·Room Light Control
·Photomusical I.C.·Industrial control·Photoswitch·Electronic Toys
■DESCRIPTION:
CdS Photoconductive Cells is a resistor which made of semi-conductor material,and the conductance change with luminance variationg.The CdS Photoconductive cells canbe manufactured with different figures and illuminated area based on this S Photoconductive cells is widely used in many industries,such as toys,lamps,camera,etc.
■ELECTRO-OPTICAL CHARACTERICTICS :
|
Parameter |
Characterictics |
Unit |
|
|
Light Resistance(at 10lux) |
5-10 |
KΩ |
|
|
Dark Resistance(at 0 lux/Min) |
0.2 |
MΩ |
|
|
Gamma Value( at 100-10lux) |
0.6 |
|
|
|
Power Dissipation(at 25℃) |
50 |
MW |
|
|
Max Voltage(at 25℃) |
100 |
VDC |
|
|
Spectral Resp***e peak(at 25℃) |
540 |
nm |
|
|
Ambient Temperature Range |
-30～+70 |
℃ |
|
|
Resp***e time |
Increase |
30 |
ms |
|
Decrease |
30 |
ms |
|
※Light resistance : Measured at 10lux(standard Light source)at a color temperature of 2856K. color temperature )and 2h pre-illumination at 400-600 lux priorto testing .
※
|
Lon(R10/R100) |
|
Log(100/10) |
|
= Log(R10/R100) |
Dark resistance: measured 10 senconds after pulsed 10 lux.
※Gamma Characteristic:between 10lux and 100lux and given by T =
※Pmax: Max.power dissipation at ambient temperature of 25℃.
※Vmax:Max.voltage in darkness that may be applied to the cell continuously .
■Component Information :
|
Component Name |
ROSH |
Notice |
|
Resin Coating |
YES |
-- |
|
CdS |
NO |
Composition than 100 PPM |
|
Electrode |
YES |
-- |
|
Ceramic Substrate |
YES |
-- |
|
Lead Terminal |
YES |
-- |

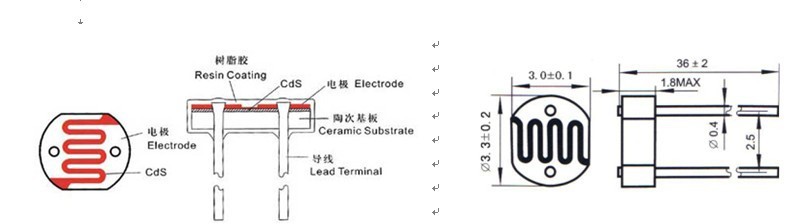

■OUTLINE:(Unit: mm)

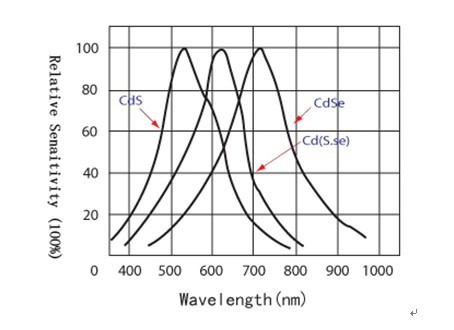

■SPECTRAL RESP***E:

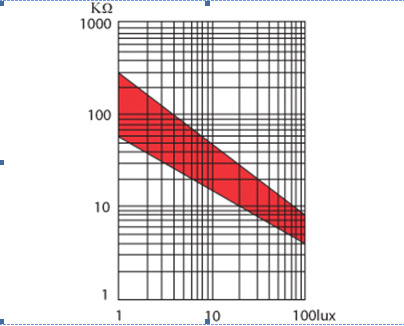

■ILLUNINANCE Vs. PHOTO RESISTANCE
