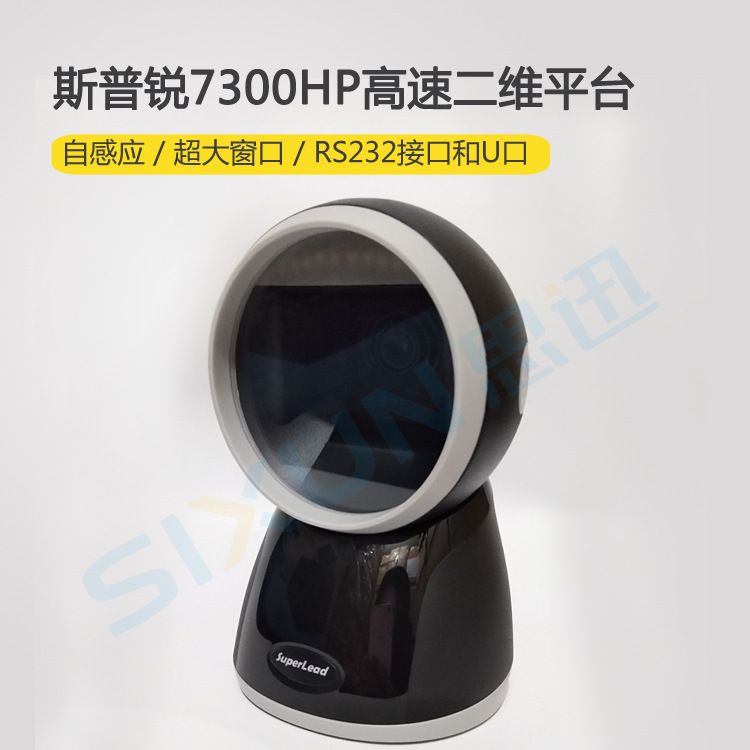

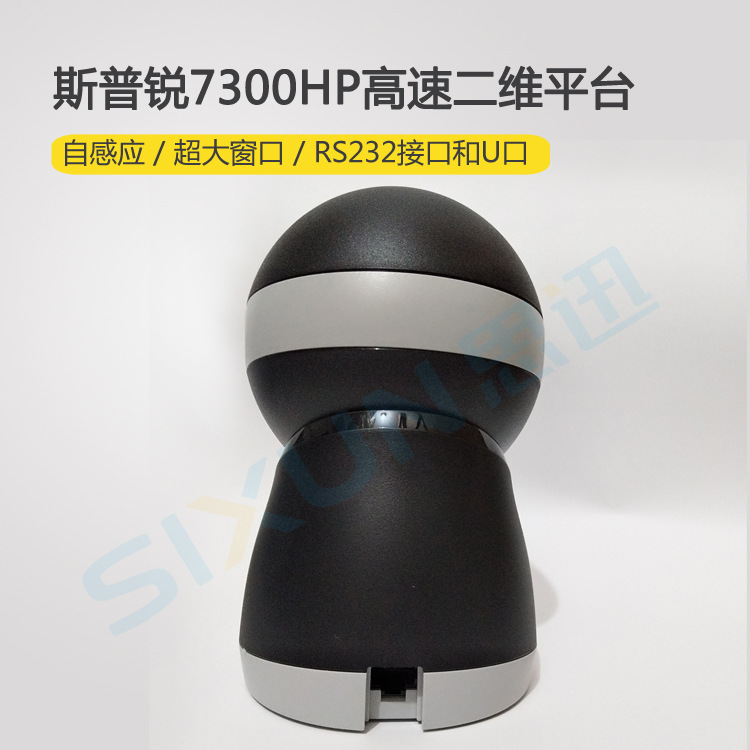

斯普瑞7300二维影像平台,自感应读取条码,超大扫描窗口,支持RS232接口和U口,3种工作模式(普通模式,手持模式,快速移动模式)
|
物理特性/Physical Characteristics |
|
|
尺寸Dimensi***: |
150mm x 95mm x 98mm |
|
重量Weight: |
295g |
|
电压Voltage : |
5VDC |
|
电流Current : |
450mA |
|
扫描特性/Performance Characteristics |
|
|
|
|
|
光源Light Source: |
Aiming& illumination: 617nm LED |
|
视场角Field of View: |
50°(H)x 35° (V) |
|
旋转倾斜偏转Roll / Pitch / Yaw: |
360°, &plu***n;65°, &plu***n;60° |
|
打印对比度Print Contrast: |
25% minimum reflective difference |
|
***能力/Symbology Decode Capability |
|
|
一维条码/1-D: |
UPC-A, UPC-E, EAN8, EAN13, ISSN, Telepen, China Post, Trioptic Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Code 32, Code 93, Code11, Matrix 2 of 5, Interle***ed 2 of 5, Codabar, MSI(Plessey), Chinese 2 of 5, GS1 DataBar, Industrial 2 of 5, Standard 2 of 5 |
|
二维条码/2-D: |
QR, DataMatrix, PDF417, Aztec, Hanxin etc. |
|
接口支持Interfaces Supported: |
USB, RS232 |
|
用户环境/User Environment |
|
|
工作温度Operating Temperature: |
0°C to 50° C |
|
存储温度Storage Temperature: |
-40° to 70° C |
|
湿度Humidity: |
0% to 95%, non-condensing |
|
抗振性Shock Specificati***: |
Designed to withstan d 1.5m(5’)drops |
|
抗摔性Drop Specification |
Withstands 50 times 1.6m to concrete |
|
环境光***Ambient Light Immunity: |
up to 100,000 Lux. |
|
读码景深/Decode Ranges |
|
|
Symbol & Density |
HD Focus |
|
Code 39 (5 mil) |
0mm-60mm |
|
100%UPCA (13 mil) |
0mm-200mm |
|
|
|
|
Performance may be impacted by bar code quality and environmental conditi*** |
|
