5*20mm高压***丝

东莞市爱多电子销售5*20mm规格高压电流***丝，能够耐500V,600V等高压。

1.規格型***和安規認***

MODEL  NUMBER  AND  SAFETY  CERTIFICATION

1-1 品名規格：系列***+***定***流+***定***壓+認***符***

   Model  Number:  Part  Number+Rated Current+Rated Voltage+Approvals.

例子[example]:

5CFU     1A     500V                      1)系列***  Part  Number

                                                    2)***定***流  Rated  Current

1）         2）     3）                      3)***定***壓  Rated  Voltage

1-2 ***定***流和***定***壓

Rated Current  And  Voltage

***定***流： 63mA~15A

Rated Current: 63mA~15A

***定***壓:500V/600V AC

Rated  Voltage: 500V/600V AC

1-3標示Marking

保險絲上需有下列標示

The fuse shall h***e the following marking:

規格：特性符***+***定***流+***定***壓

Specification:Characteristic  Symbol+Rated Voltage

   63mA~800mA : _mA500V/600V    1A~15A:_A500V/600V

Trade mark:The Manufacture’s Logo+Part Number+Approvals

63mA~15A:

注意：對標示字樣大小沒有規定

Note:Size of the markings h***e not be specified.

2.適用範圍

SCOPE

適用於一般***子設備。Used in electronic equipment.

3.工程圖和結構

OUTLINE DRAWING AND STRUCTURE

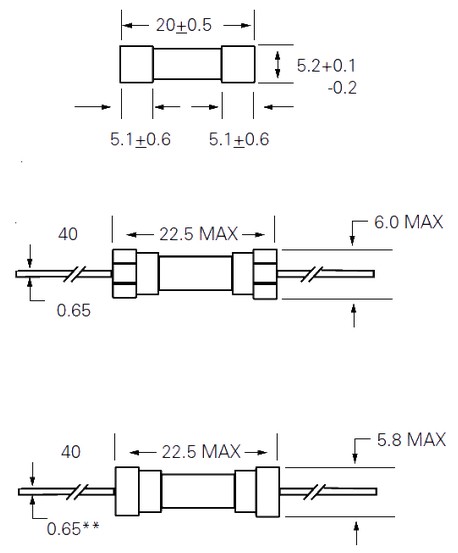

3-1 工程圖（***位：mm）

Outline Drawing and Dimensi***(Unit:mm)

3-2結構

Structure

4.外觀及形狀

APPEARANCES AND CONFIGURATION

4-1外觀：不應有破碎、明顯的汙斑

Appearances:There shall no fragmentation and of remarkable blotch.

4-2形狀：帶腳的保險絲

Configuration:Axial Leaded Fuse.

5.物理特性

PHYSICAL CHARACTERISTIC

5-1 拉力測試

Tensile test

沿端子的軸向施加10N的拉力，持續1分鐘。

Keep pulling the cap of the fuse with 10N at axial direction for 1 min.

6.******特性

ELECTRICAL CHARACTERISTICS

熔斷/***流特性：

Pre-Arcing Time/Current Characteristic

a、Breaking capacity（分断能力）(Time Lag and Fast Acting)

b、Electrical characteristics

Time Lag（国标、欧标CCC/VDE）

Fast Acting

美标（UL）

c、Temperature character

    When 100% of rating the temperature rise doesn’t exceed 75℃.

d、Approvals

7.環境特性

 ENVIRONMENTAL SPECIFICATION

7-1 操作溫度範圍：-5℃~60℃

Operating Temperature: -5℃~60℃

7-2 保存條件

Storage Conditi***

溫度：+10℃~60℃

Temperature: +10℃~60℃

在相對濕度≤75%下平均可存放3年

On ***erage, It can be stored below the relative humidity or 75% for 3 years.

在非露天下，相對濕度為95%下***多可存放30天。

Without dew, It can be kept under humidity of 95% for 30 days.

8.焊接條件

SOLDERING PAAMETERS

8-1波峰焊

W***e Solder

焊接溫度：260&plu***n;5℃

Soldering Temperature:260&plu***n;5℃

焊接時間：4 Sec. Max.

Soldering Time:4 Sec.Max.

8-2手工焊錫

Manual Solder

焊接溫度：350&plu***n;5℃

Soldering Temperature: 350&plu***n;5℃

焊接時間：3 Sec. Max.

Soldering Time: 3 Sec. Max.

9.其他使用注意事項

OTHER NOTICE IN USING

如果需在保險絲上加***縮套管，烘烤溫度與時間需參照以下規定

If heat shrink tubing was needed,the roast temperature and time should be refer to the following.

設定烘烤溫度：不大於150℃  烘烤時間：50s Max.

The temperature should be sel under 150℃,roast time:50s Max.
